Baugruppe

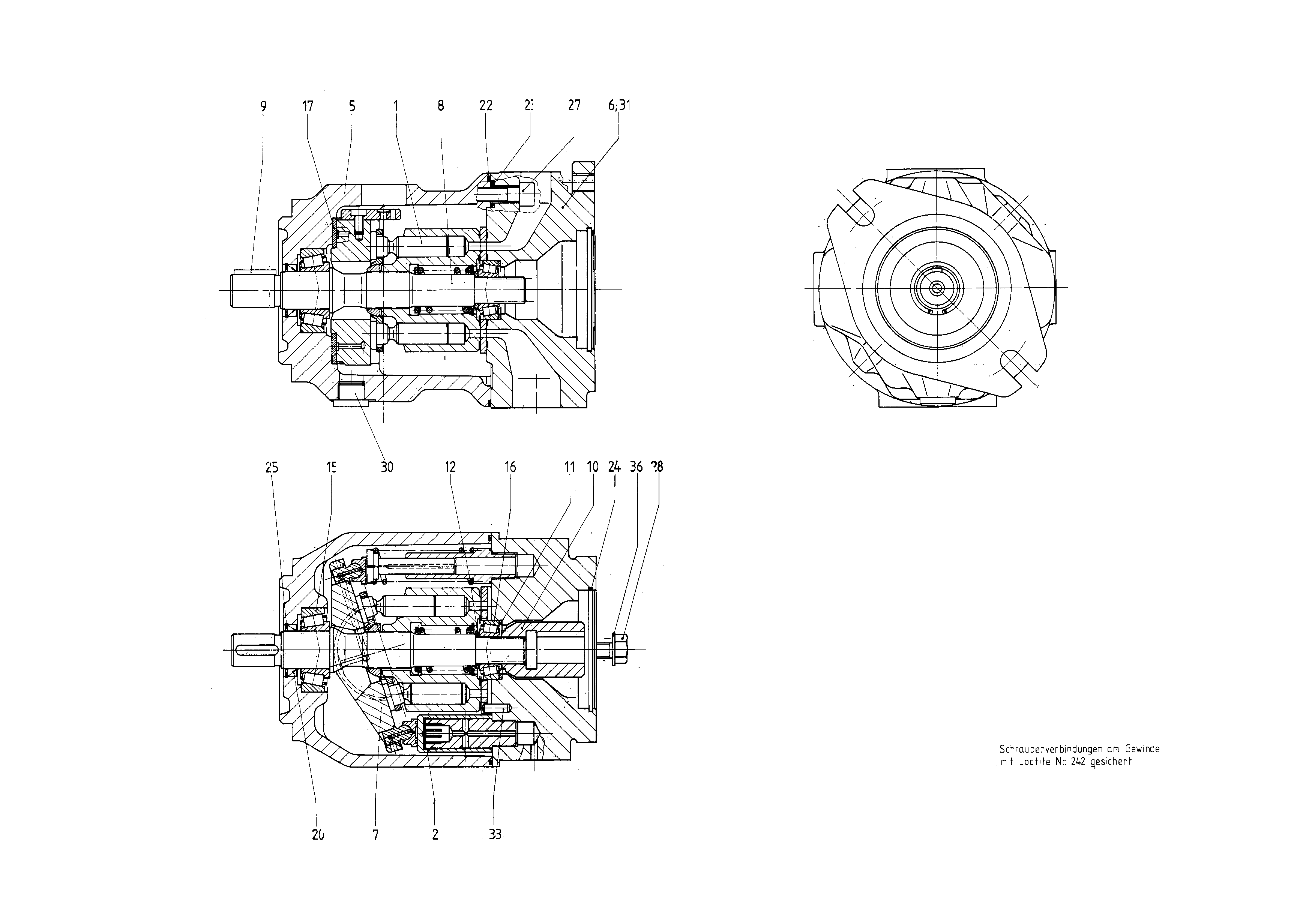

BASE UNITR910927144
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910911162 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902550219 | PUMP HOUSING | 1 | ||
| 6 | R902542689 | CONNECTION PLATE | 1 | |
| R910961001 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| 10 | R910943691 | HUB | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| 20 | R910794325 | SHAFT SEALING RINGD | 1 | |
| R910730041 | O-RINGD | 1 | ||
| 23 | R913052108 | R-RINGD | 4 | |
| 24 | R910111945 | O-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
