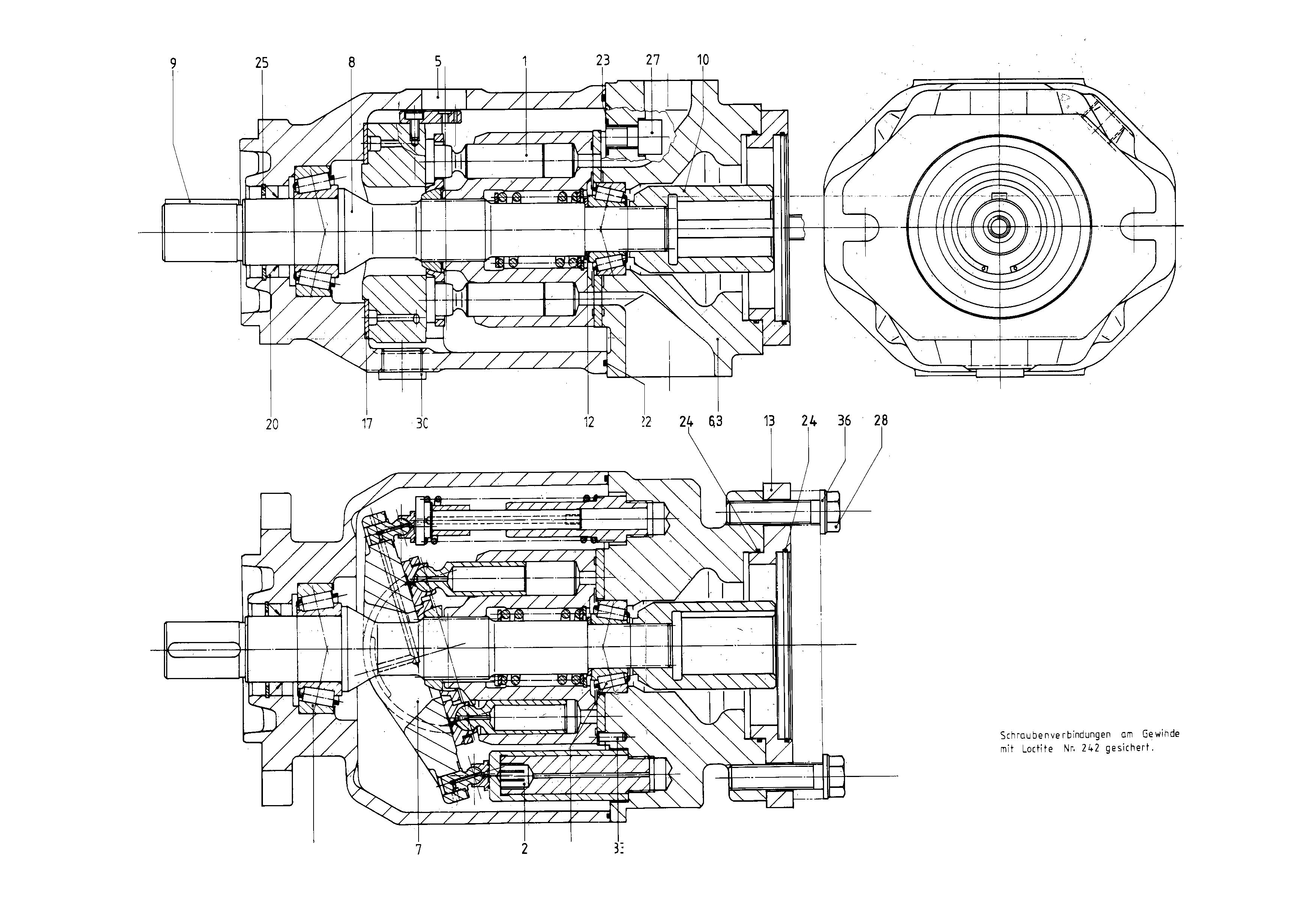

Baugruppe
BASE UNITR910927644
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910913785 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| 5 | R910906815 | PUMP HOUSING | 1 | |
| 6 | R902543274 | CONNECTION PLATE | 1 | |
| R910961044 | SWASH PLATE | 1 | ||
| 8 | R910987697 | DRIVE SHAFT | 1 | |
| 9 | R910923559 | PARALLEL KEY | 1 | |
| R910913003 | HUB | 1 | ||
| 12 | R910906878 | ADJUSTMENT SHIM | 1 | |
| 13 | R910913004 | INTERMEDIATE FLANGE | 1 | |
| 15 | R910906908 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R910906909 | TAPERED-ROLLER BEARING | 1 | |
| 17 | R910906881 | BEARING SHELL | 2 | |
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| 24 | R910102989 | O-RINGD | 1 | |
| 24 | R910904813 | O-RING | 1 | |
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910124168 | HEXAGON SCREW | 2 | ||
| 30 | R909153365 | SCREW PLUGD | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| 36 | R902650192 | WASHER | 2 |
