Baugruppe

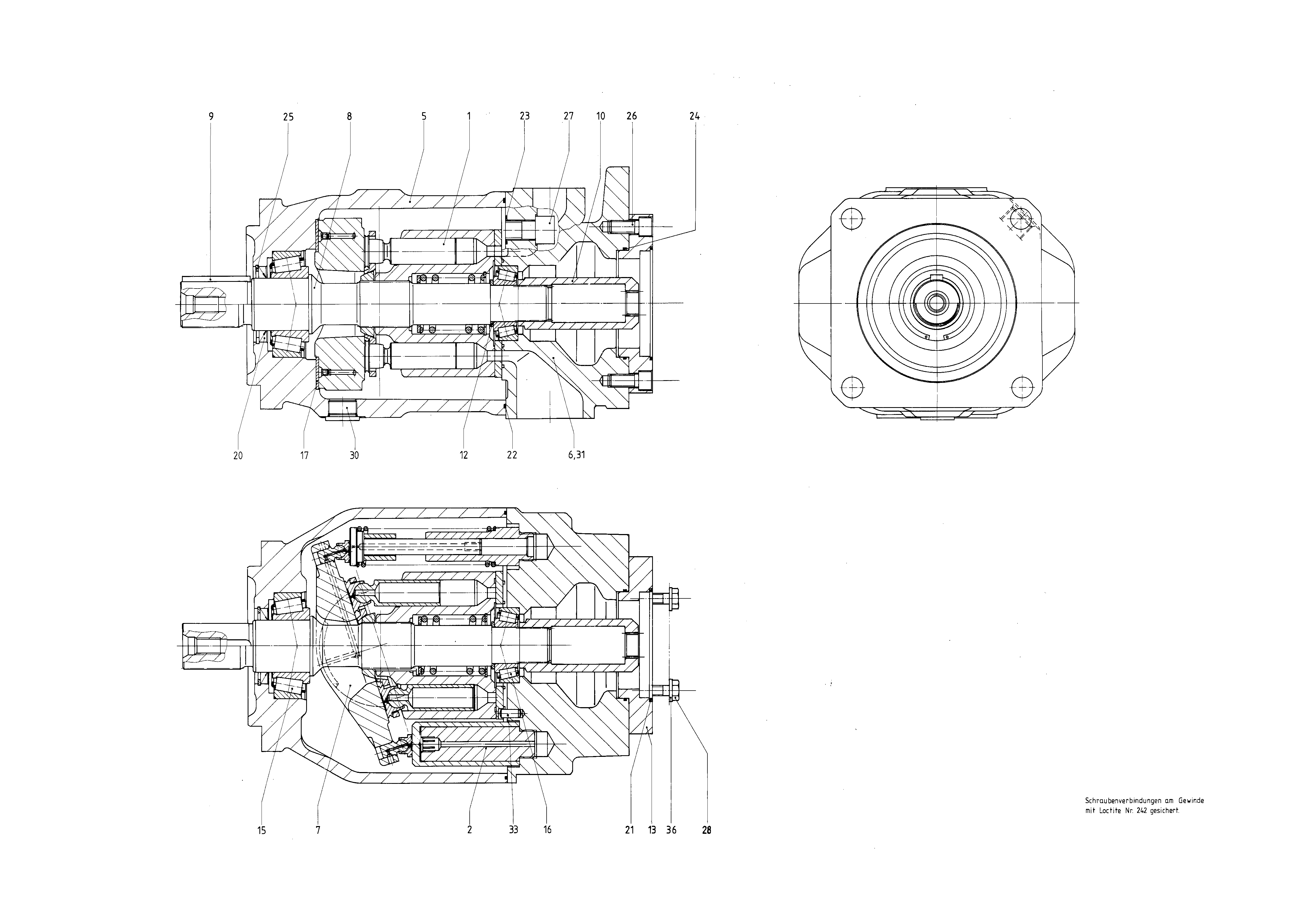

BASE UNITR910929087
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902483660 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910917597 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | |
| 5 | R910918190 | PUMP HOUSING | 1 | |
| R910946512 | CONNECTION PLATE | 1 | ||
| 7 | R910961081 | SWASH PLATE | 1 | |
| 8 | R910987709 | DRIVE SHAFT | 1 | |
| 9 | R910244848 | PARALLEL KEY | 1 | |
| R910929088 | SPLINED COUPLING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| 13 | R910918216 | INTERMEDIATE FLANGE | 1 | |
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| 21 | R910397962 | O-RINGD | 1 | |
| R910930460 | O-RINGD | 1 | ||
| R913053033 | R-RINGD | 4 | ||
| R910384259 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 |
