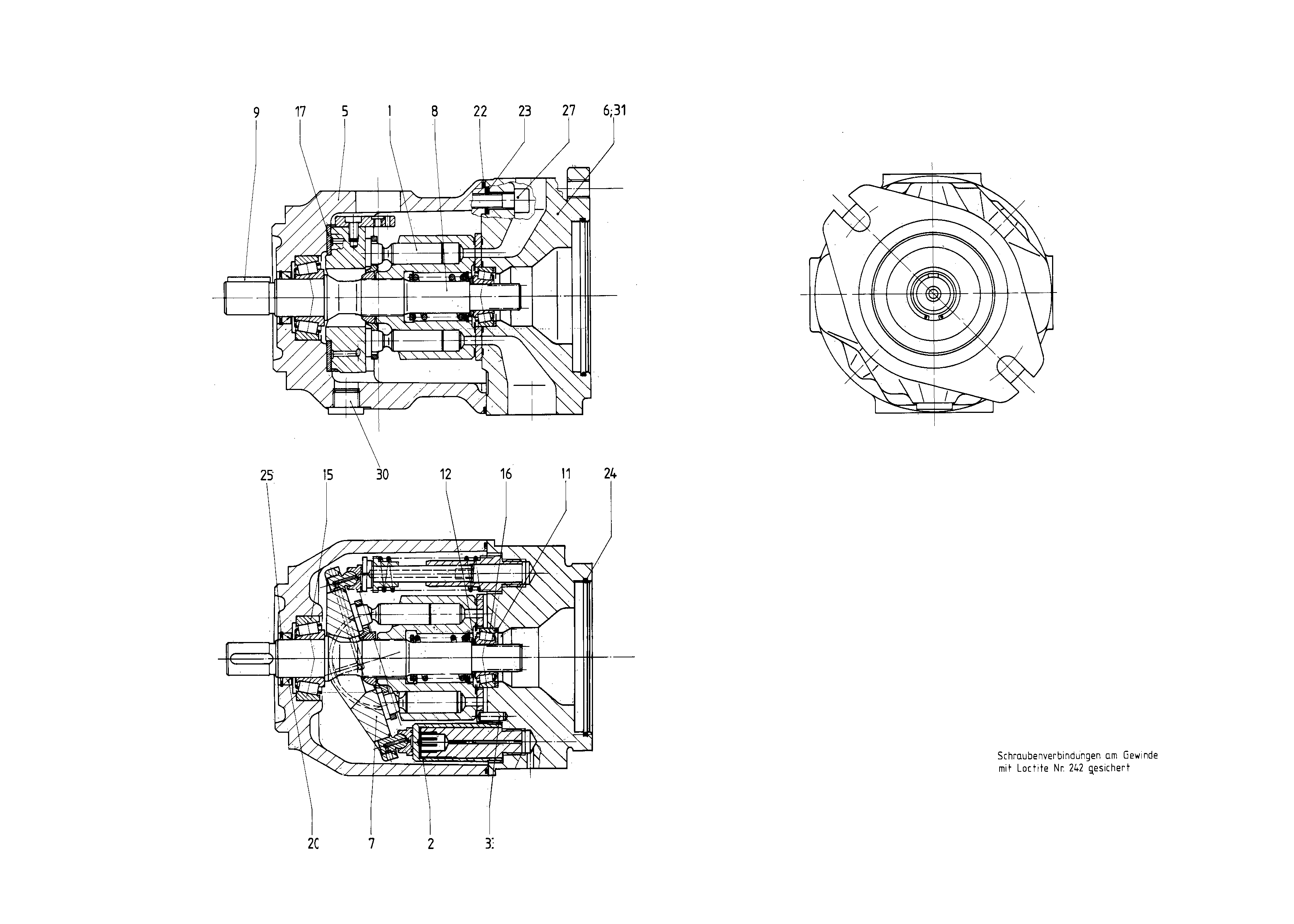

Baugruppe
BASE UNITR910929714
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910916304 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902550219 | PUMP HOUSING | 1 | ||
| 6 | R910997608 | CONNECTION PLATE | 1 | |
| R910961001 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| 20 | R910794325 | SHAFT SEALING RINGD | 1 | |
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| R910787655 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 31 | R910942668 | BREAK-OFF PLUG | 2 | |
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| 34 | R913011601 | SCREW PLUG | 1 |
