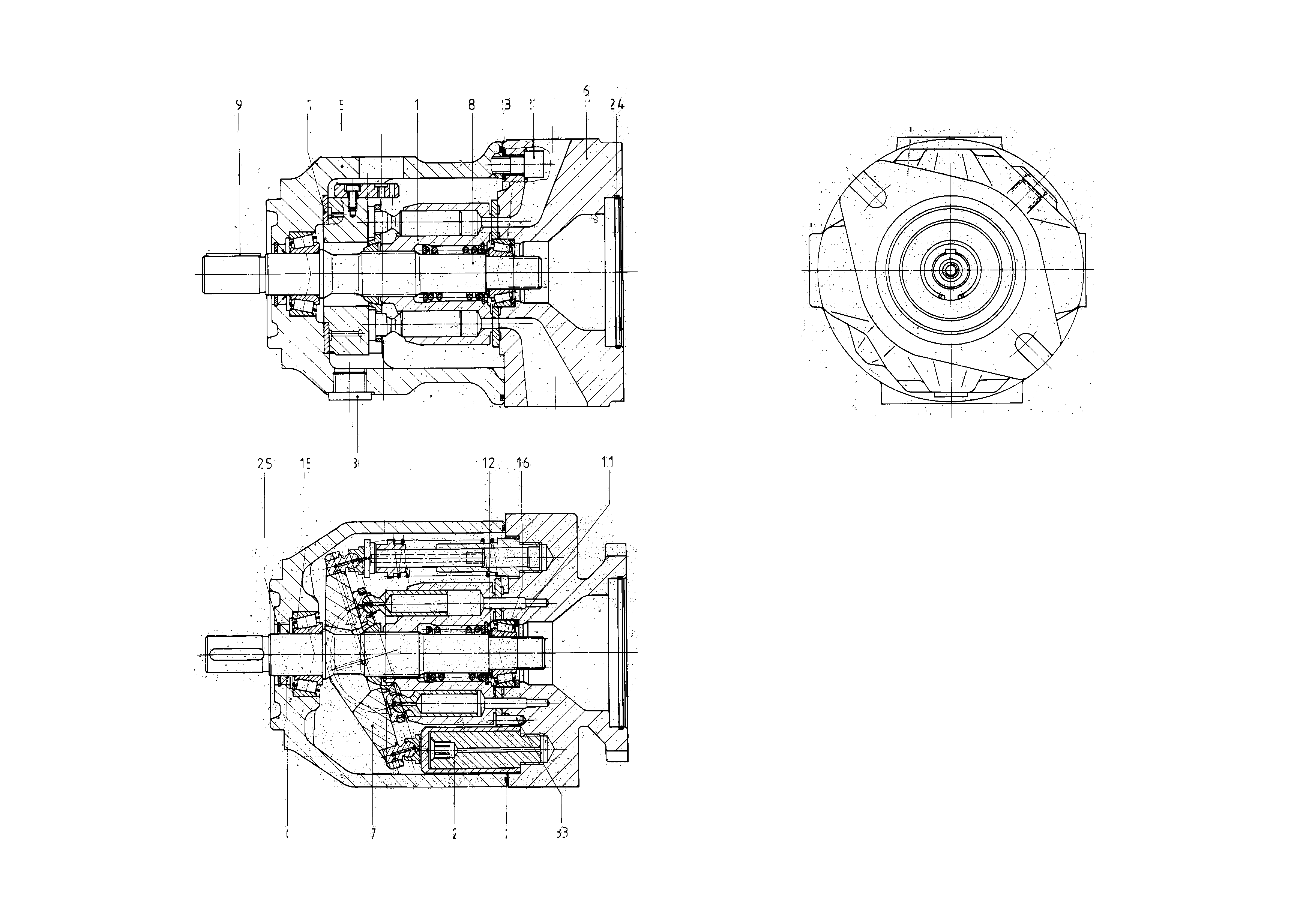

Baugruppe
BASE UNITR910929716
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910913557 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | |
| R902546049 | PUMP HOUSING | 1 | ||
| R910993447 | CONNECTION PLATE | 1 | ||
| R910961029 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902417379 | DRIVE SHAFT | 1 | ||
| R910103438 | PARALLEL KEY | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| 17 | R910900198 | BEARING SHELL | 2 | |
| 20 | R910793671 | SHAFT SEALING RINGD | 1 | |
| 22 | R910704997 | O-RINGD | 1 | |
| R913052114 | R-RINGD | 4 | ||
| R910787655 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910220264 | SOCKET HEAD CAP SCREW | 4 | |
| 30 | R909151694 | SCREW PLUGD | 1 | |
| 31 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011601 | SCREW PLUG | 1 |
