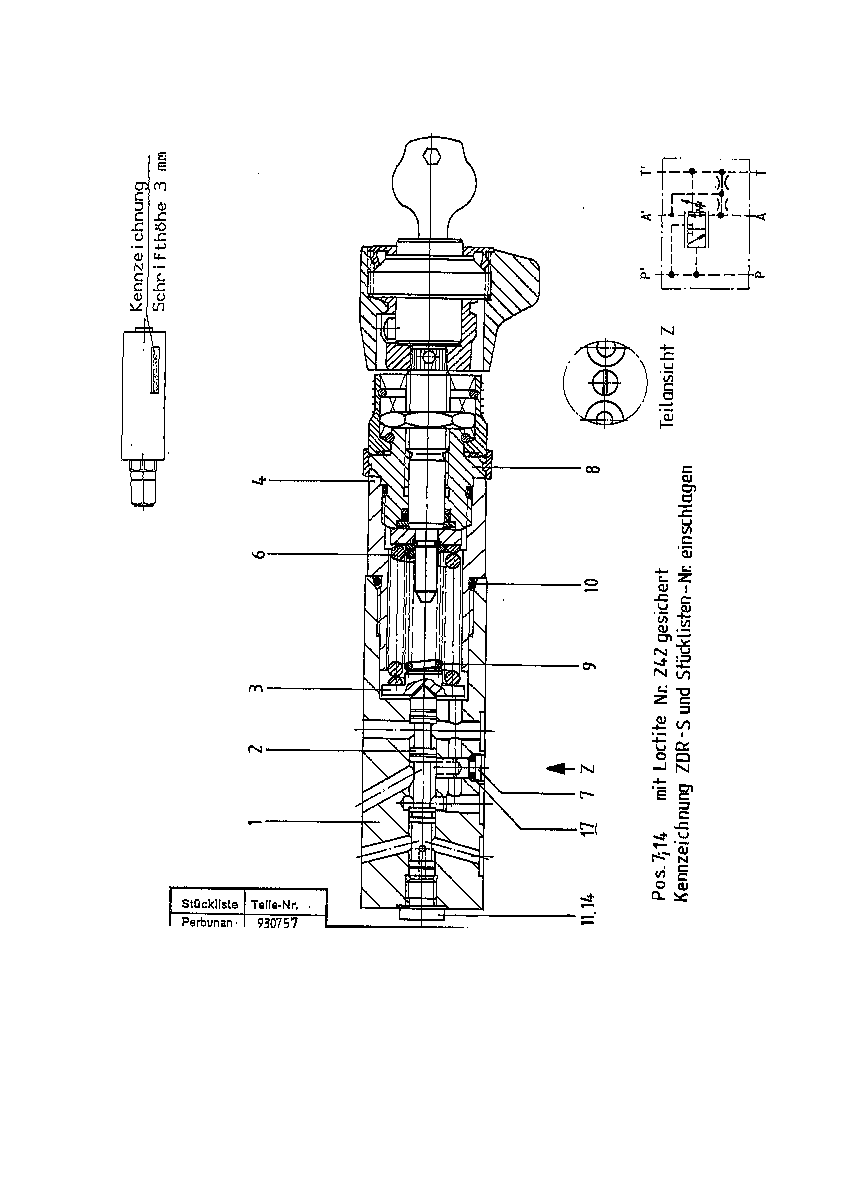

Baugruppe
CONTROL VALVER910930755
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910906422 | VALVE HOUSING | 1 | |
| 2 | R910900311 | VALVE SPOOL | 1 | |
| 3 | R910707023 | SPRING DISK | 1 | |
| R910915542 | SCREW PLUG | 1 | ||
| 6 | R910707031 | COMPRESSION SPRING | 1 | |
| 7 | R910930560 | ORIFICE | 1 | |
| 8 | R910915518 | CONTROL Stückliste der Baugruppe →L | 1 | |
| 9 | R910911509 | COMPRESSION SPRING | 1 | |
| 10 | R910574953 | O-RINGD | 1 | |
| 11 | R910114774 | BONDED SEAL RINGD | 1 | |
| 14 | R910933812 | SCREW PLUG | 1 | |
| 17 | R910977084 | O-RING | 1 |
