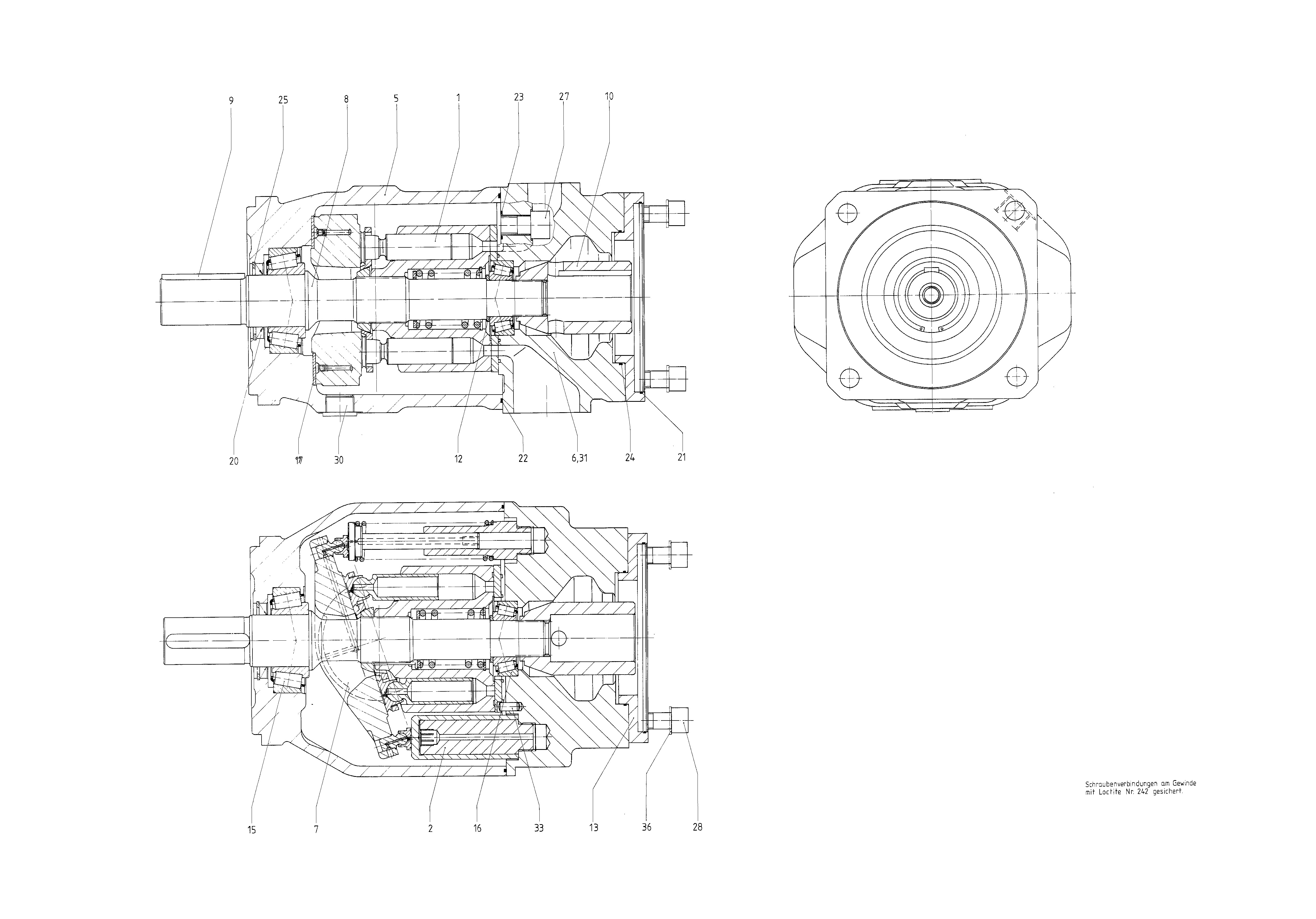

Baugruppe
BASE UNITR910931640
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902483660 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910917597 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R910918190 | PUMP HOUSING | 1 | ||
| R902543272 | CONNECTION PLATE | 1 | ||
| R910961081 | SWASH PLATE | 1 | ||
| R910987709 | DRIVE SHAFT | 1 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| R910943693 | HUB | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910922484 | INTERMEDIATE FLANGE | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| R910931639 | O-RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910186961 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R910120529 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R902650192 | WASHER | 4 |
