Baugruppe

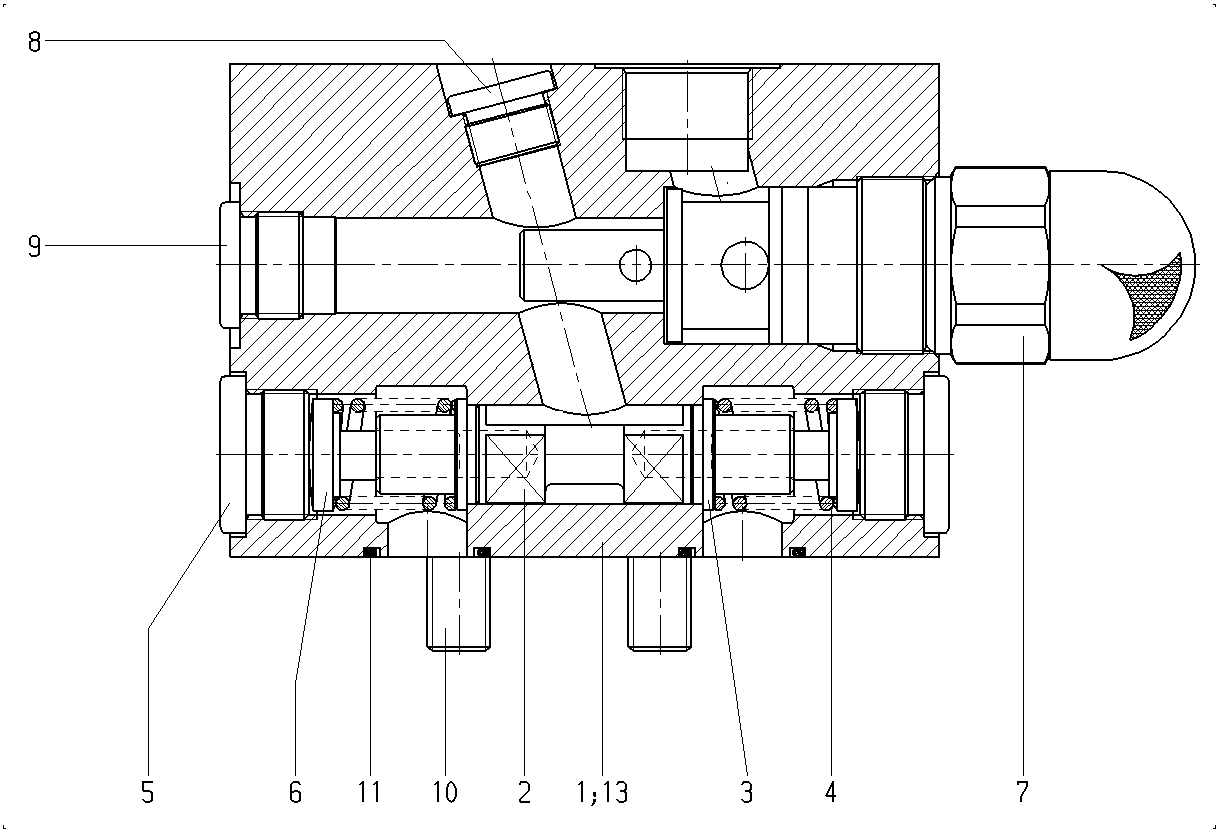

FLUSHING VALVER910931923
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910915031 | HOUSING | 1 | ||
| R910021202 | FLUSHING PISTON | 1 | ||
| R910021288 | WASHER | 2 | ||
| R910035327 | COMPRESSION SPRING | 2 | ||
| R909156652 | SCREW PLUG | 2 | ||
| R910021393 | DAMPING PISTON | 2 | ||
| R900424205 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R910120588 | SOCKET HEAD CAP SCREW | 4 | ||
| R910080659 | O-RINGD | 2 | ||
| R909153930 | SCREW PLUGD | 1 |
