Baugruppe

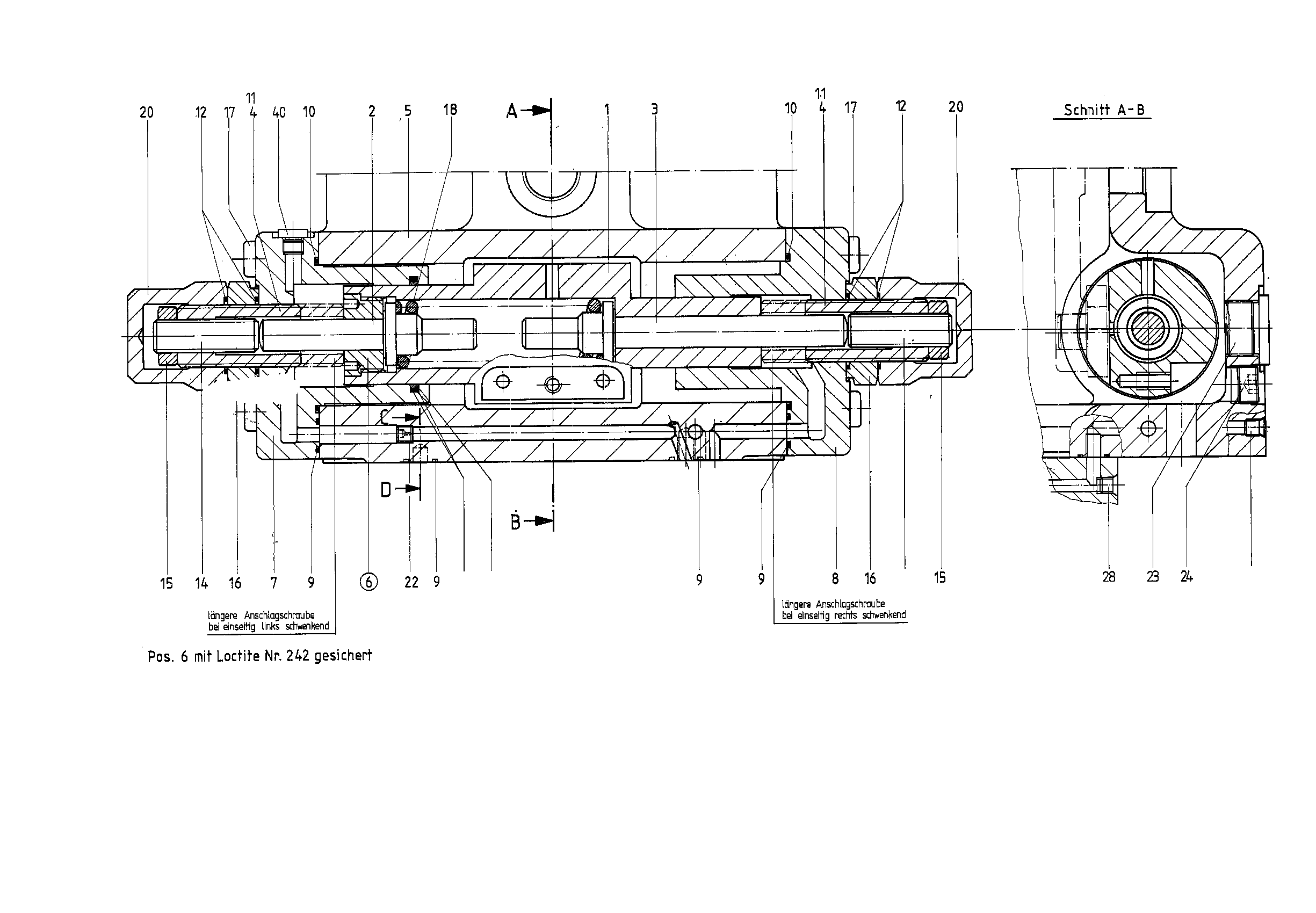

ADJUSTING PIECER910932421
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902407819 | ADJUSTING PISTON | 1 | |
| R910948667 | PRESSURE PISTON | 1 | ||
| 3 | R910948675 | PRESSURE PISTON | 1 | |
| R910948683 | STOP SCREW | 2 | ||
| R902452236 | REPAIR KIT | 1 | ||
| R910948705 | PISTON GUIDE | 1 | ||
| R910933090 | PISTON HOUSING | 1 | ||
| 8 | R910907844 | PISTON HOUSING | 1 | |
| R910916202 | O-RINGD | 4 | ||
| 10 | R902650322 | R-RINGD | 2 | |
| 12 | R910756598 | O-RINGD | 4 | |
| 14 | R910118648 | SETSCREW | 2 | |
| 15 | R910127116 | HEXAGON NUT | 2 | |
| 16 | R910902817 | NUT | 2 | |
| 17 | R910220264 | SOCKET HEAD CAP SCREW | 8 | |
| R910948624 | COMPRESSION SPRING | 1 | ||
| R910902818 | CAP NUT | 2 | ||
| 22 | R910856649 | NOZZLE | 1 | |
| 23 | R909156984 | SCREW PLUGD | 1 | |
| 24 | R910987526 | SCREW PLUG | 1 | |
| 25 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 31 | R909153930 | SCREW PLUG | 1 | |
| 40 | R909156649 | SCREW PLUG | 3 | |
| 41 | R910929952 | ROD SEAL | 1 | |
| 42 | R910933393 | O-RING | 2 |
