Baugruppe

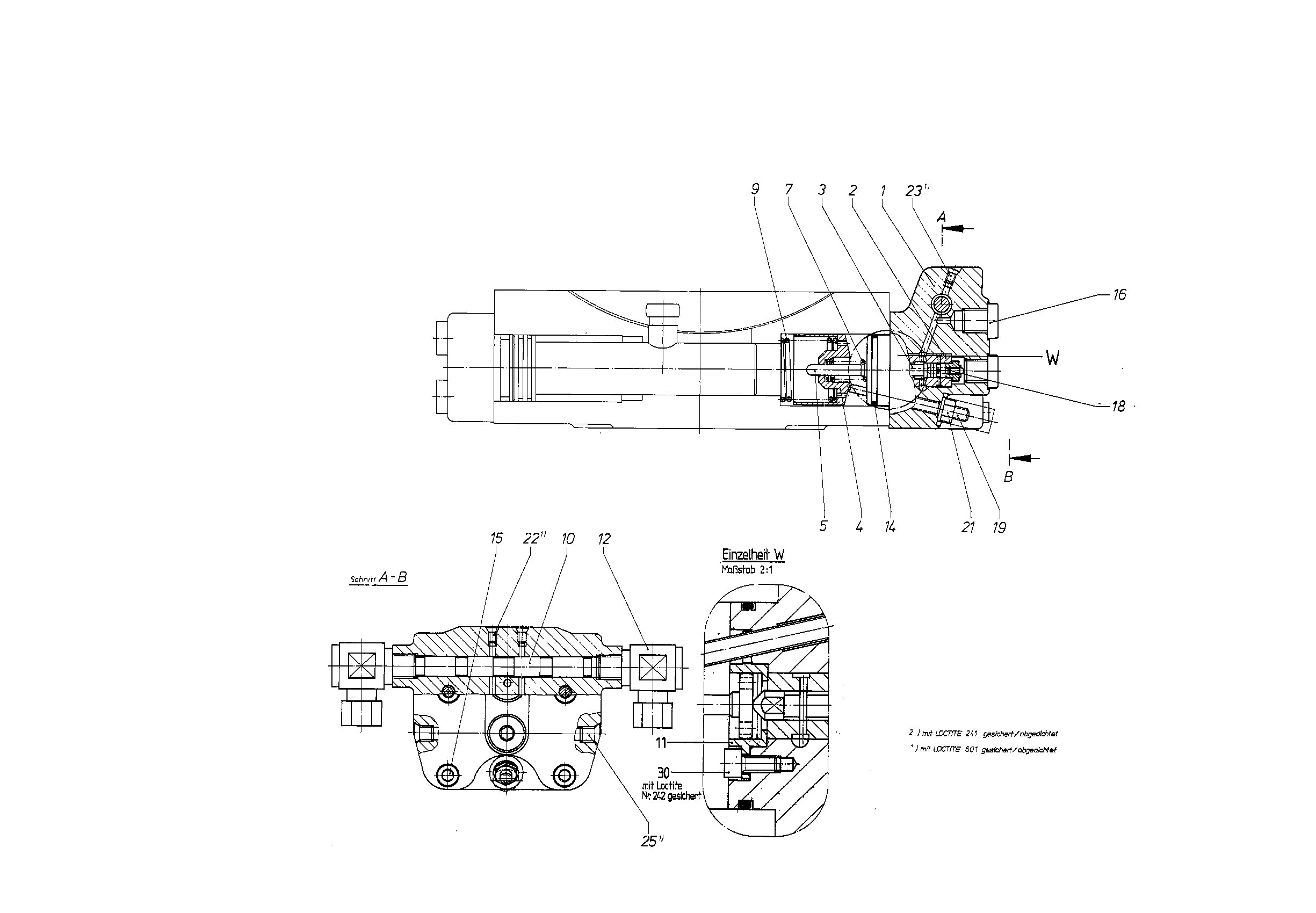

CONTROL PARTR910933736
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910801676 | CONTROL HOUSING | 1 | ||
| R909420570 | CONTROL SLEEVE | 1 | ||
| 3 | R910801802 | CONTROL PISTON | 1 | |
| 4 | R910801595 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 7 | R910801590 | COMPRESSION SPRING | 1 | |
| 9 | R910801627 | COMPRESSION SPRING | 1 | |
| R910801580 | SLIDE | 1 | ||
| 11 | R910924892 | STOP BUSHING | 1 | |
| R910837598 | THREADED FASTENER | 2 | ||
| 14 | R910513571 | O-RINGD | 1 | |
| 15 | R910109525 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R909151692 | SCREW PLUGD | 1 | |
| 18 | R909083488 | SETSCREW | 1 | |
| R910801451 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 9 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| 30 | R910119512 | SOCKET HEAD CAP SCREW | 4 |
