Baugruppe

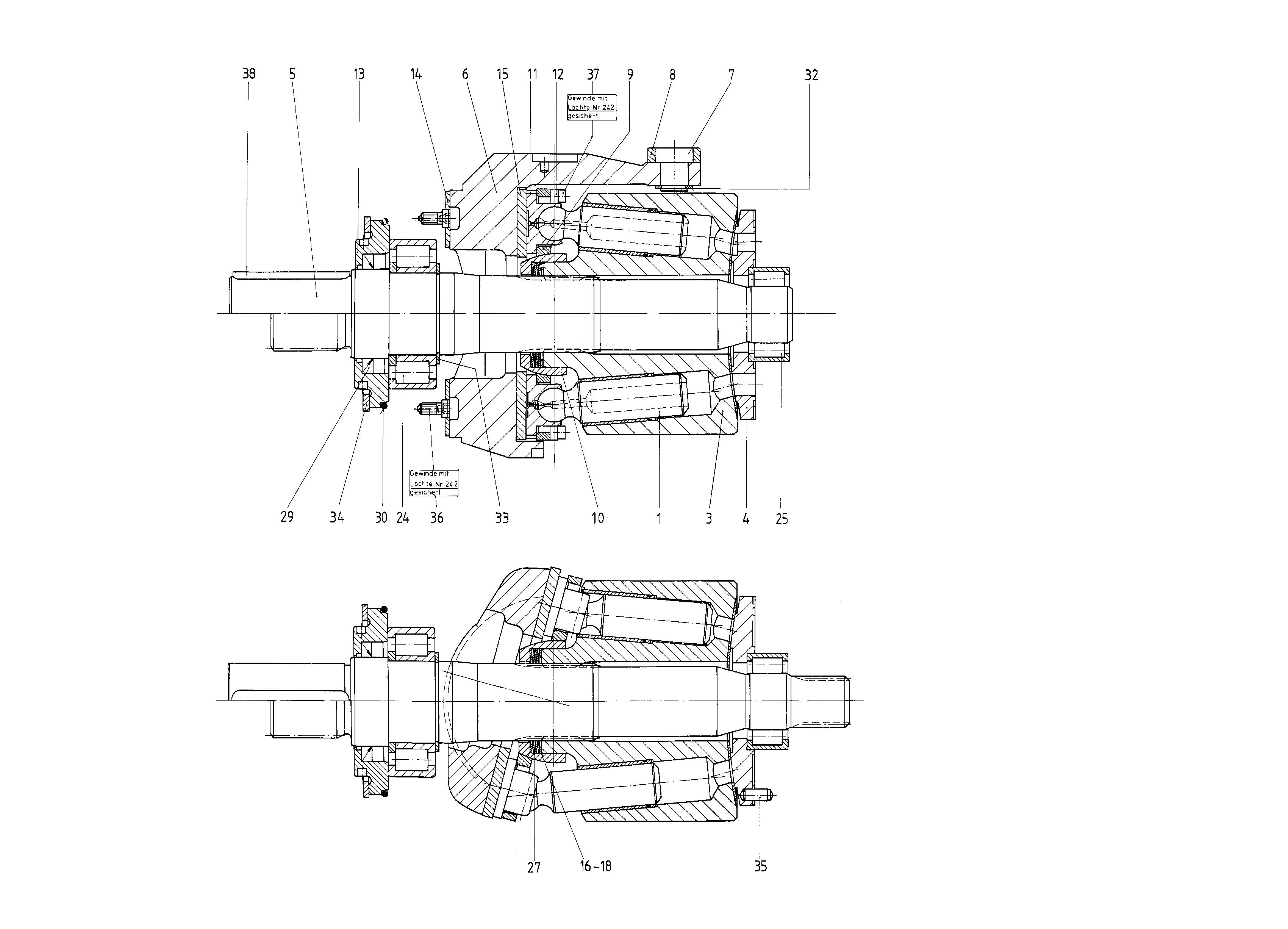

ROTARY GROUPR910934103
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910925455 | PISTON PAD | 9 | ||
| 3 | R910993755 | CYLINDER | 1 | |
| R910934109 | DISTRIBUTOR PLATE | 1 | ||
| R902409014 | DRIVE SHAFT | 1 | ||
| R910995197 | SWASH PLATE | 1 | ||
| R910928204 | DRIVER PIVOT | 1 | ||
| 8 | R910923656 | SLIDER | 1 | |
| 9 | R902439616 | RETAINING PLATE | 1 | |
| R902483557 | RETAINING BALL | 1 | ||
| 11 | R910960458 | SPACER SEGMENT | 4 | |
| 12 | R902570170 | SEGMENT | 4 | |
| R910991719 | SEALING FLANGE | 1 | ||
| R910946525 | BEARING SHELL | 2 | ||
| R910934106 | SLIDING DISC | 1 | ||
| 16 | R910960168 | SHIM RING | 1 | |
| 17 | R902400546 | SHIM RING | 1 | |
| 23 | R910949038 | SETTING SCREW | 1 | |
| 24 | R910960738 | CYL. ROLLER BEARING | 1 | |
| R910928220 | CYL. ROLLER BEARING | 1 | ||
| R910927019 | CUP-SPRING STACK | 1 | ||
| 28 | R902400750 | SHIM RING | 1 | |
| R910381209 | SHAFT SEALING RINGD | 1 | ||
| 30 | R910112208 | O-RINGD | 1 | |
| 31 | R902400755 | BACKUP RING | 1 | |
| R910126691 | RETAINING RING | 1 | ||
| R910991780 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R910932882 | SETTING SCREW | 1 | ||
| R902650866 | SOCKET HEAD CAP SCREW | 8 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| 39 | R910991781 | RETAINING RING | 1 | |
| 40 | R910991782 | RETAINING RING | 1 | |
| 41 | R910991784 | RETAINING RING | 1 | |
| 43 | R910991665 | RETAINING RING | 1 | |
| 44 | R910991666 | RETAINING RING | 1 | |
| 45 | R910991667 | RETAINING RING | 1 | |
| 46 | R910991668 | RETAINING RING | 1 |
