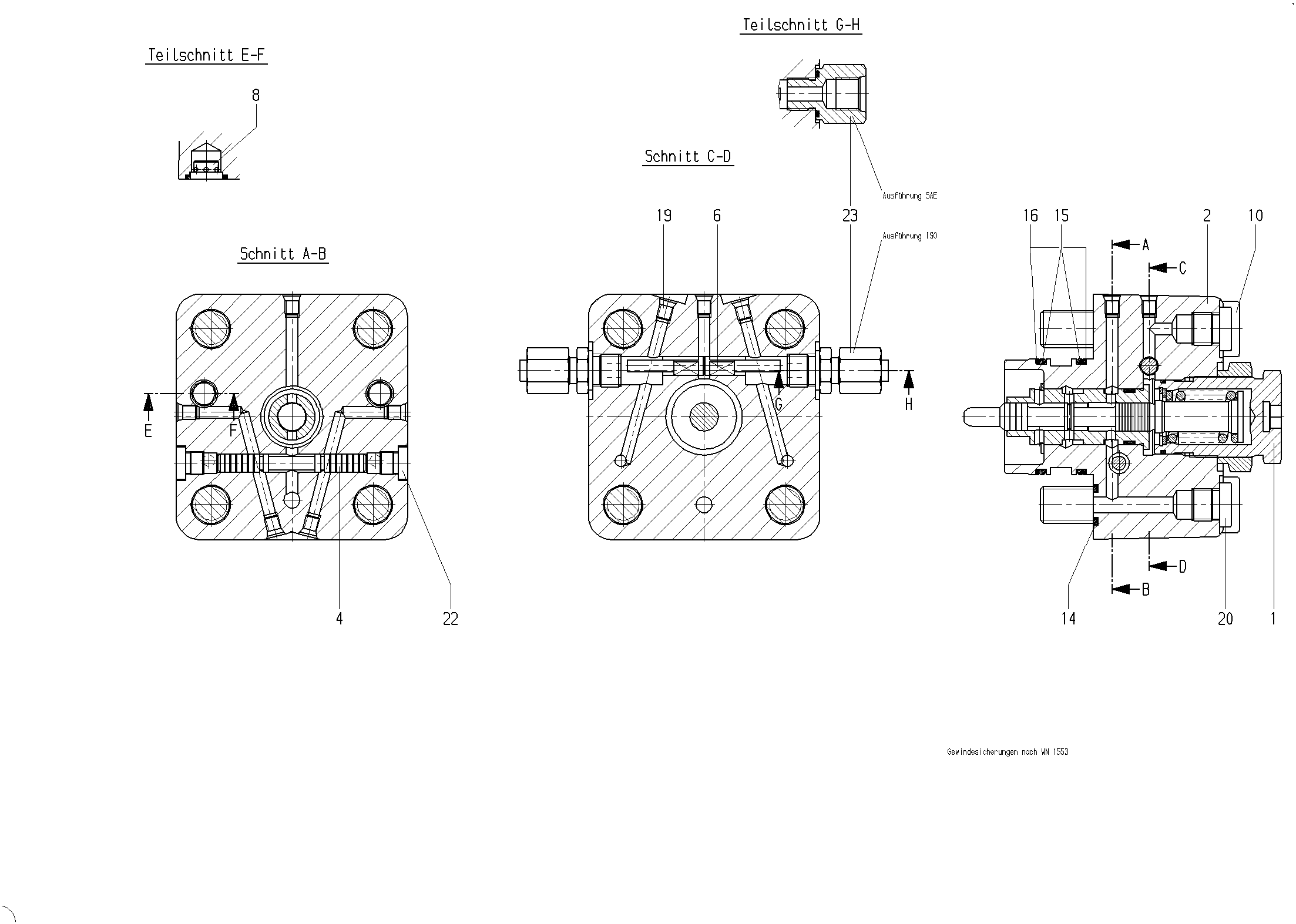

Baugruppe
CONTROL PARTR910934339
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910927795 | VALVE INSERT | 1 | |
| R910931644 | CONTROL HOUSING | 1 | ||
| R910930951 | SLIDE | 1 | ||
| R910020451 | VALVE SPOOL | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| 13 | R910976410 | O-RING | 2 | |
| R910518336 | O-RINGD | 3 | ||
| 15 | R910929855 | O-RINGD | 2 | |
| 16 | R910929791 | BACKUP RINGD | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R910939157 | THREADED FASTENER | 2 |
