Baugruppe

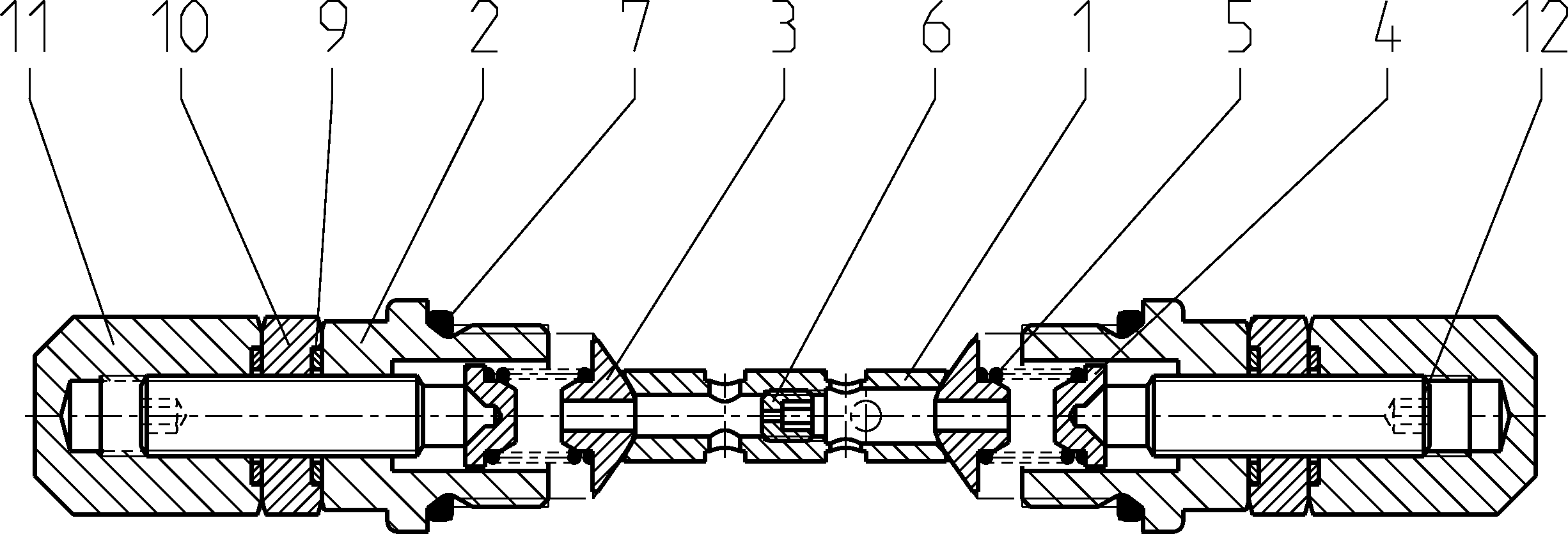

SWIVEL TIME LIMITING VALVER910934358
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909077836 | PISTON | 1 | |
| 2 | R910931238 | SCREW PLUG | 2 | |
| 3 | R909077334 | SPRING DISK | 2 | |
| R902531131 | SPRING DISK | 2 | ||
| 5 | R910591955 | COMPRESSION SPRING | 2 | |
| 6 | R909077838 | THROTTLE SCREW | 1 | |
| R910302139 | O-RINGD | 2 | ||
| 9 | R910642827 | BONDED SEAL RINGD | 4 | |
| R910913806 | NUT | 2 | ||
| 11 | R910913805 | CAP NUT | 2 | |
| 12 | R910914466 | SETSCREW | 2 |
