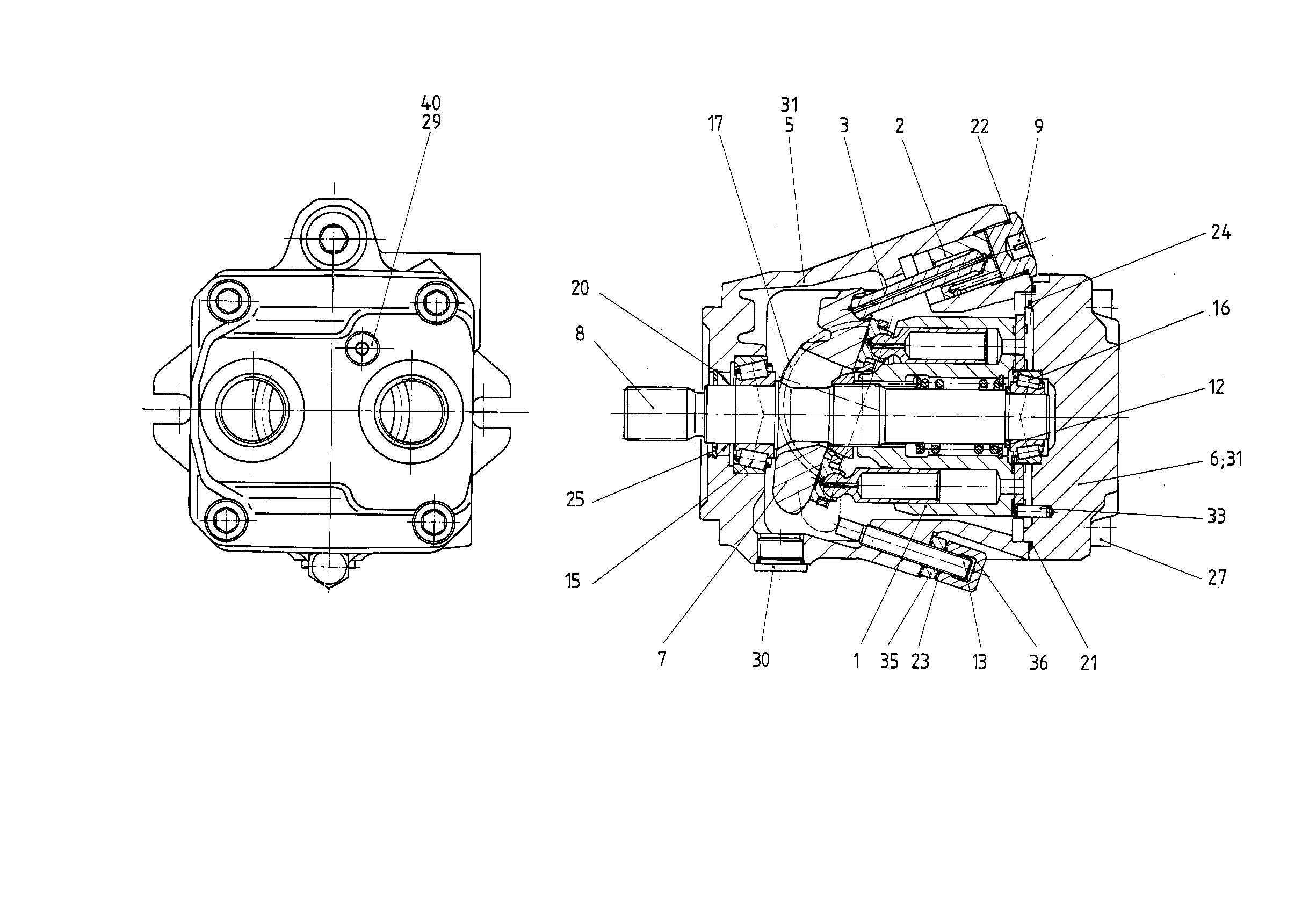

Baugruppe
BASE UNITR910937375
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| R902439068 | PISTON ROD | 1 | ||
| 5 | R910933802 | MOTOR HOUSING | 1 | |
| R910937377 | CONNECTION PLATE | 1 | ||
| 7 | R902443505 | SWASH PLATE | 1 | |
| 8 | R902417387 | DRIVE SHAFT | 1 | |
| 9 | R902447686 | SCREW PLUG Stückliste der Baugruppe →L | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| 13 | R910933408 | STOP SCREW | 1 | |
| 15 | R910704946 | TAPERED-ROLLER BEARING | 1 | |
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| 23 | R910514691 | O-RINGD | 2 | |
| R910942134 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011600 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| R910904041 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 |
