Baugruppe

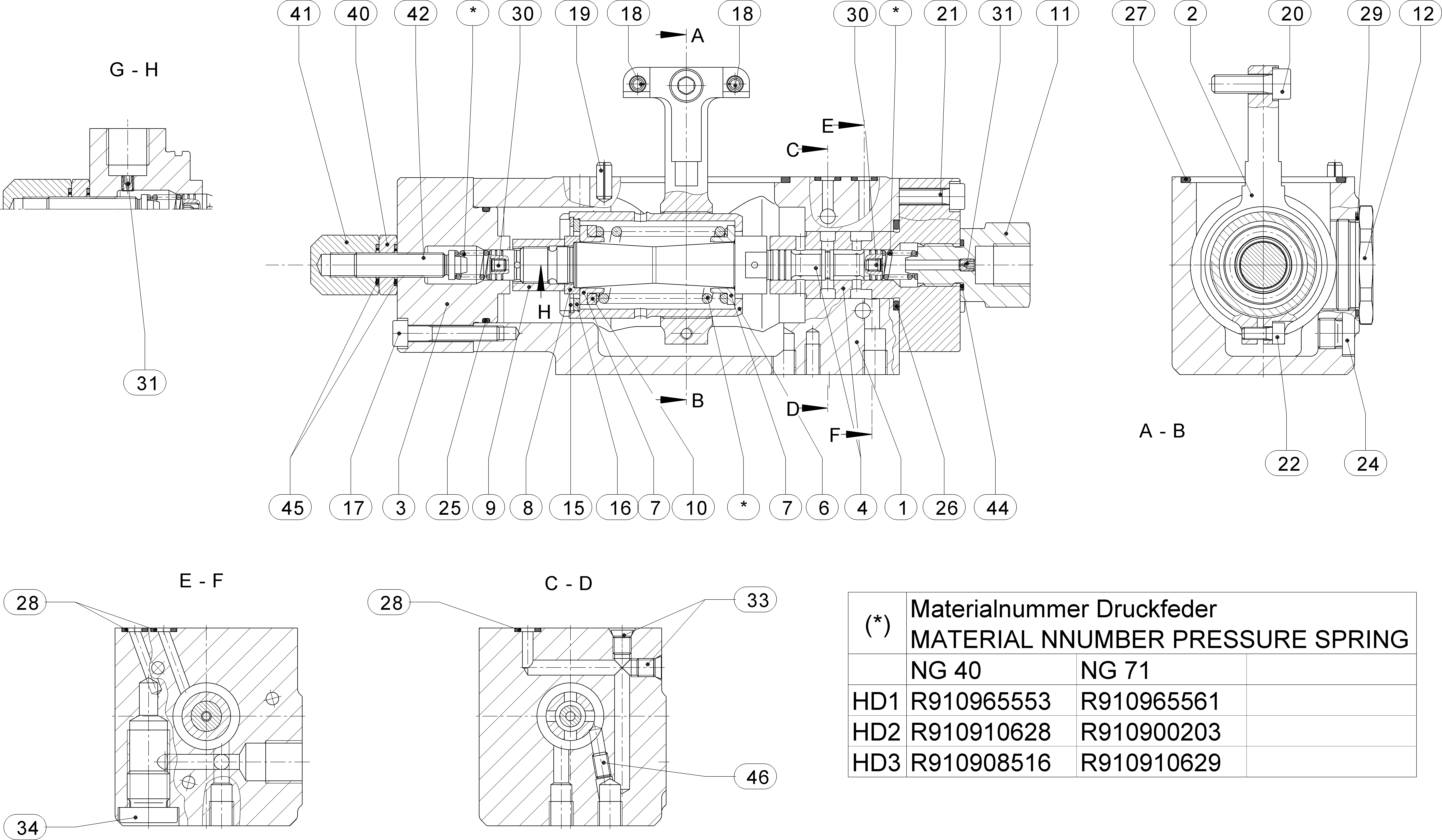

CONTROL MODULER910937852
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910930197 | CONTROL HOUSING | 1 | ||
| R902474028 | LEVER | 1 | ||
| R902517327 | CONTROL COVER | 1 | ||
| R910965421 | CONTROL PISTON | 1 | ||
| R910965472 | SPRING SLEEV | 1 | ||
| R902426686 | SPRING SLEEV | 2 | ||
| R910965545 | SHIM RING | 1 | ||
| R910965537 | COUNTER NUT | 1 | ||
| R910965502 | ADJUSTMENT SHIM | 1 | ||
| R910920936 | THREADED FASTENER | 1 | ||
| R910966711 | SCREW PLUG | 1 | ||
| R910105937 | RETAINING RING | 1 | ||
| R910105422 | SUPPORTING DISC | 1 | ||
| R910109231 | SOCKET HEAD CAP SCREW | 3 | ||
| R910997949 | CLAMPING SLEEVE | 2 | ||
| R910073571 | SLOTTED SPRING PIN | 2 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 3 | ||
| R910109177 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R910513431 | O-RINGD | 1 | ||
| R910513547 | O-RINGD | 1 | ||
| R910574481 | O-RINGD | 1 | ||
| R910940736 | R-RINGD | 3 | ||
| R910671959 | O-RINGD | 1 | ||
| R910303518 | SETSCREW | 2 | ||
| R910976303 | NOZZLE | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| R902532565 | ADJUSTING SCREW | 1 | ||
| R910730289 | SEAL RINGD | 1 | ||
| R910114774 | BONDED SEAL RINGD | 2 | ||
| R910118818 | SETSCREW | 1 |
