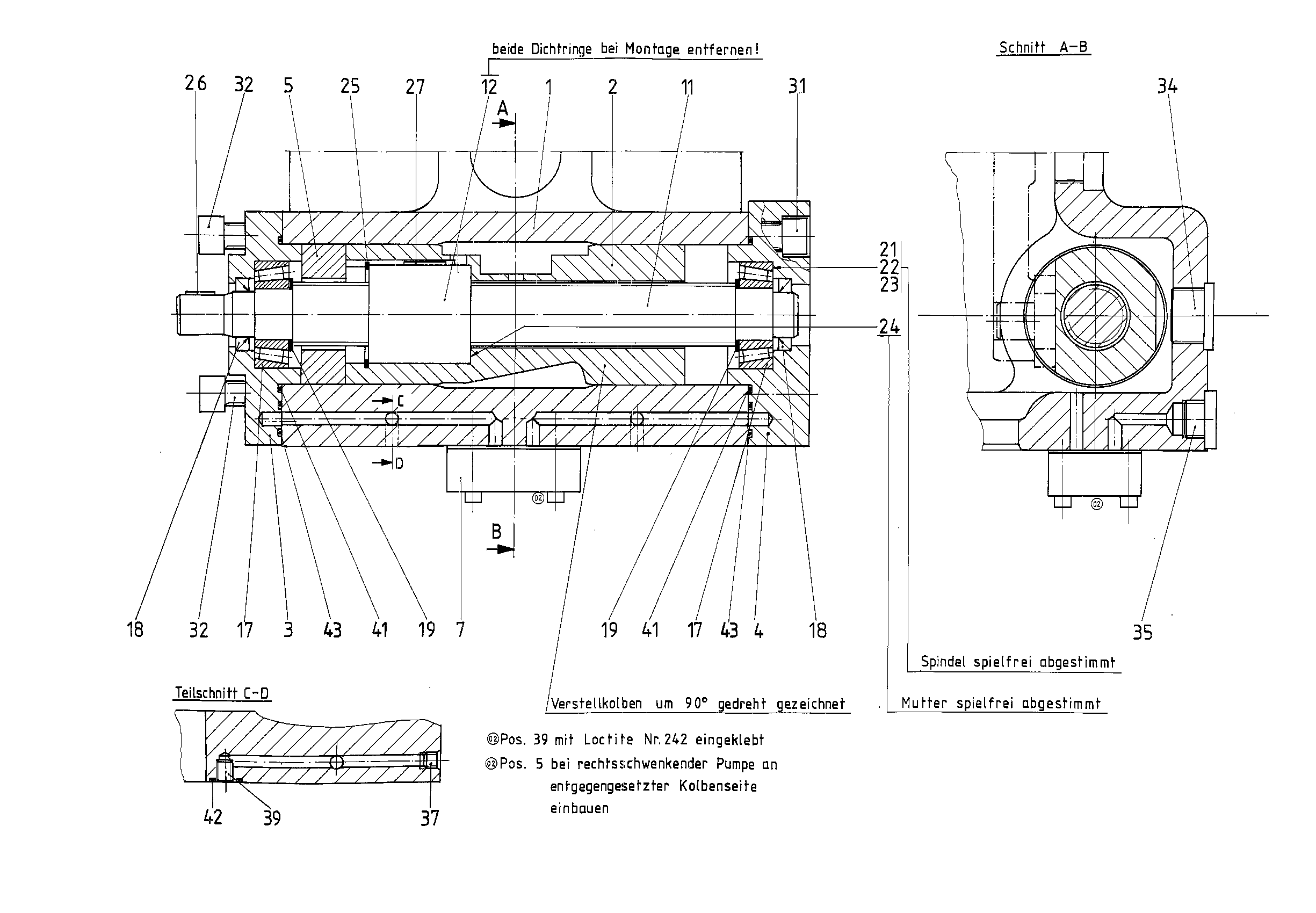

Baugruppe
CONTROLR910938072
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910936171 | PUMP HOUSING | 1 | ||
| R902548733 | ADJUSTING PISTON | 1 | ||
| R910916487 | BEARING FLANGE | 1 | ||
| R910916492 | BEARING FLANGE | 1 | ||
| R910916493 | SIDE MARKER RING | 1 | ||
| 7 | R910914233 | COVER PLATE | 1 | |
| 11 | R910946386 | BALL SCREW ASSEMBLY | 1 | |
| 17 | R910101397 | TAPERED-ROLLER BEARING | 2 | |
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| 19 | R910105449 | SUPPORTING DISC | 2 | |
| R910585335 | SHIM RING | 1 | ||
| R910635022 | SHIM RING | 1 | ||
| R910635014 | SHIM RING | 1 | ||
| R910126276 | SHIM RING | 1 | ||
| R910150541 | RETAINING RING | 1 | ||
| R910315788 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109797 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 41 | R902650321 | R-RINGD | 2 | |
| R910942813 | R-RINGD | 2 |
