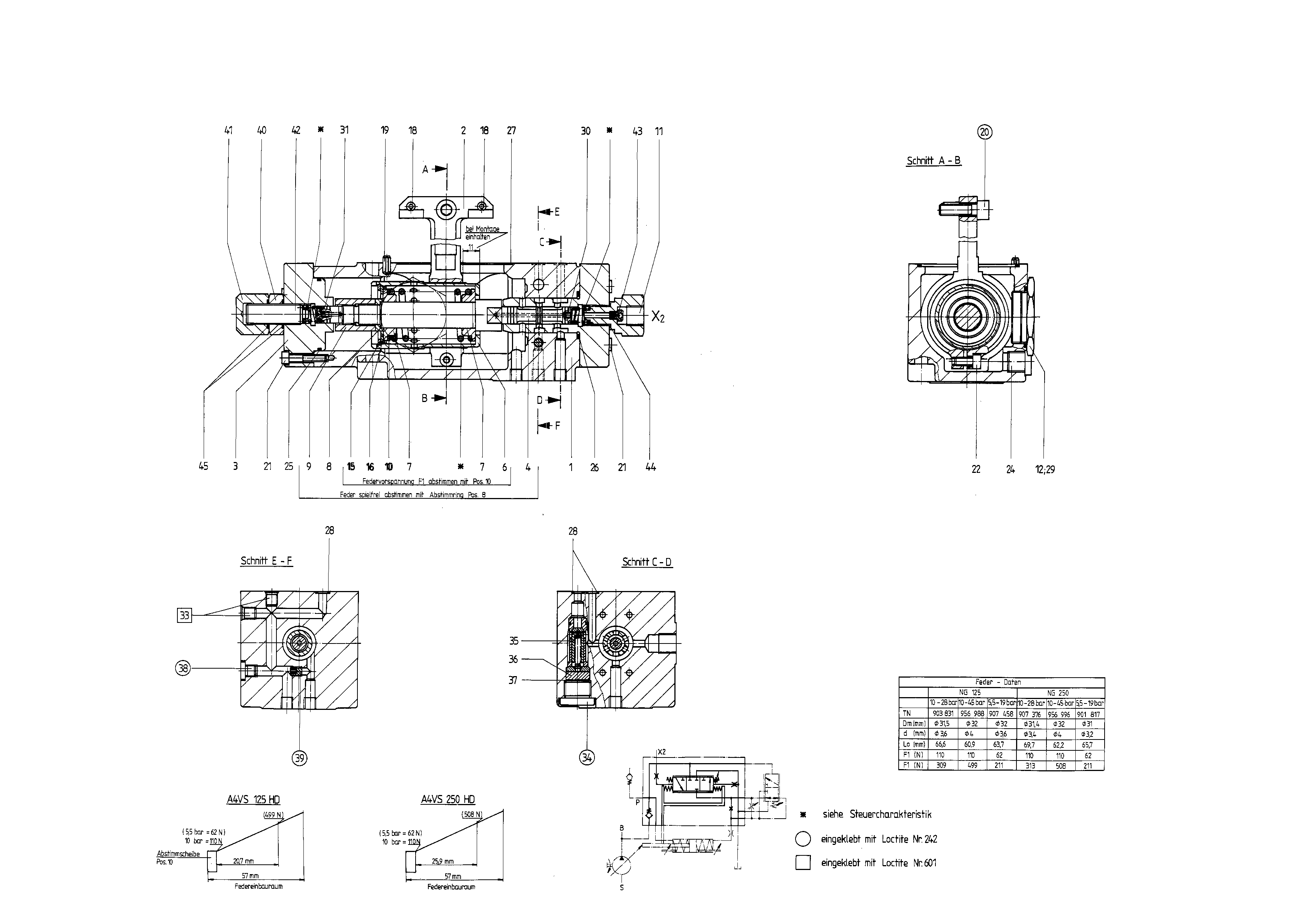

Baugruppe
CONTROL MODULER910939313
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910907331 | CONTROL HOUSING | 1 | ||
| R910906000 | LEVER | 1 | ||
| R910959022 | CONTROL COVER | 1 | ||
| R910958921 | CONTROL PISTON | 1 | ||
| R910958972 | SPRING SLEEV | 1 | ||
| R910959014 | SPRING SLEEV | 2 | ||
| R910959049 | SHIM RING | 1 | ||
| R910959057 | COUNTER NUT | 1 | ||
| R910958999 | ADJUSTMENT SHIM | 1 | ||
| 11 | R910919908 | THREADED FASTENER | 1 | |
| 12 | R910959006 | SCREW PLUG | 1 | |
| 15 | R910105988 | RETAINING RING | 1 | |
| 16 | R910105457 | SUPPORTING DISC | 1 | |
| 18 | R910997948 | CLAMPING SLEEVE | 2 | |
| 19 | R910073571 | SLOTTED SPRING PIN | 2 | |
| R910109479 | SOCKET HEAD CAP SCREW | 1 | ||
| R910120138 | SOCKET HEAD CAP SCREW | 7 | ||
| R910126586 | SOCKET HEAD CAP SCREW | 1 | ||
| 24 | R909153930 | SCREW PLUGD | 1 | |
| 25 | R910910193 | O-RINGD | 1 | |
| 26 | R910531243 | O-RINGD | 1 | |
| R910910194 | O-RINGD | 1 | ||
| R910802516 | O-RINGD | 3 | ||
| 29 | R910756571 | O-RINGD | 1 | |
| R910303518 | SETSCREW | 1 | ||
| R910593044 | NOZZLE | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| 35 | R900357718 | HY-CHECK VALVE Stückliste der Baugruppe →L | 1 | |
| R910907166 | SHIM RING | 1 | ||
| 37 | R909150370 | SHIM RING | 1 | |
| 38 | R909156863 | SCREW PLUGD | 1 | |
| R910100951 | SETSCREW | 1 | ||
| R910903387 | NUT | 1 | ||
| 41 | R910903389 | CAP NUT | 1 | |
| R910919907 | SETSCREW | 1 | ||
| R910100579 | NOZZLE | 1 | ||
| R902602257 | SEAL RINGD | 1 | ||
| R910930792 | O-RINGD | 2 |
