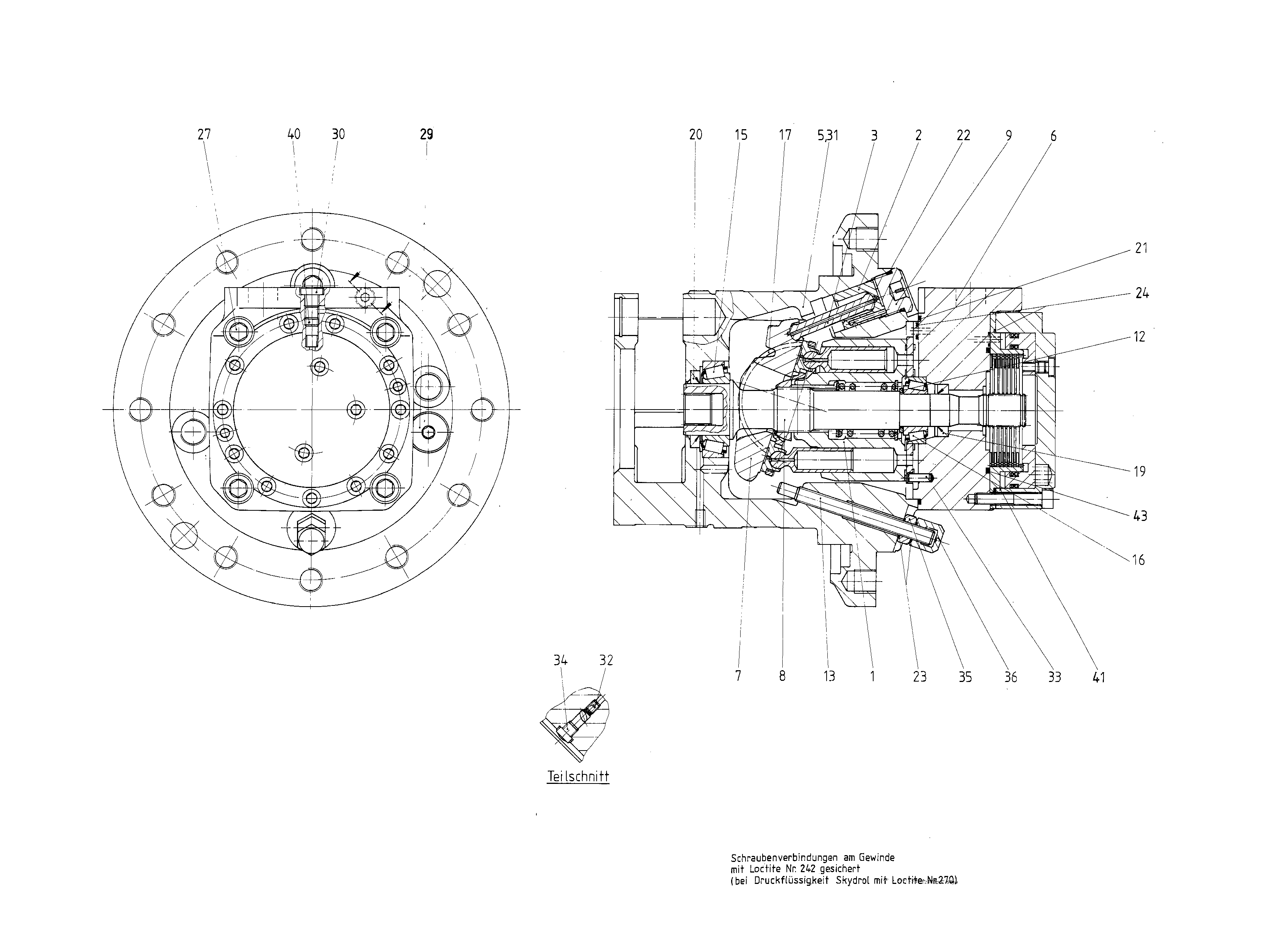

Baugruppe
BASE UNITR910939465
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| R910979510 | PISTON ROD | 1 | ||
| 5 | R910984959 | MOTOR HOUSING | 1 | |
| 6 | R910932499 | CONNECTION PLATE | 1 | |
| R902443505 | SWASH PLATE | 1 | ||
| R902417408 | DRIVE SHAFT | 1 | ||
| 9 | R902447686 | SCREW PLUG Stückliste der Baugruppe →L | 1 | |
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| 13 | R910943993 | STOP SCREW | 1 | |
| R910931253 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| R910933793 | BEARING SHELL | 2 | ||
| R910900853 | SHAFT SEALING RINGD | 1 | ||
| 20 | R909831661 | SHAFT SEALING RINGD | 1 | |
| 21 | R913052051 | O-RINGD | 1 | |
| R910514691 | O-RINGD | 2 | ||
| 24 | R910102008 | O-RINGD | 2 | |
| R910126497 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R910939292 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909153815 | SCREW PLUGD | 1 | ||
| R913011600 | SCREW PLUG | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| R910436941 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| 41 | R910941701 | BRAKE | 1 | |
| 43 | R910977041 | O-RINGD | 1 | |
| 46 | R910193216 | SOCKET HEAD CAP SCREW | 11 |
