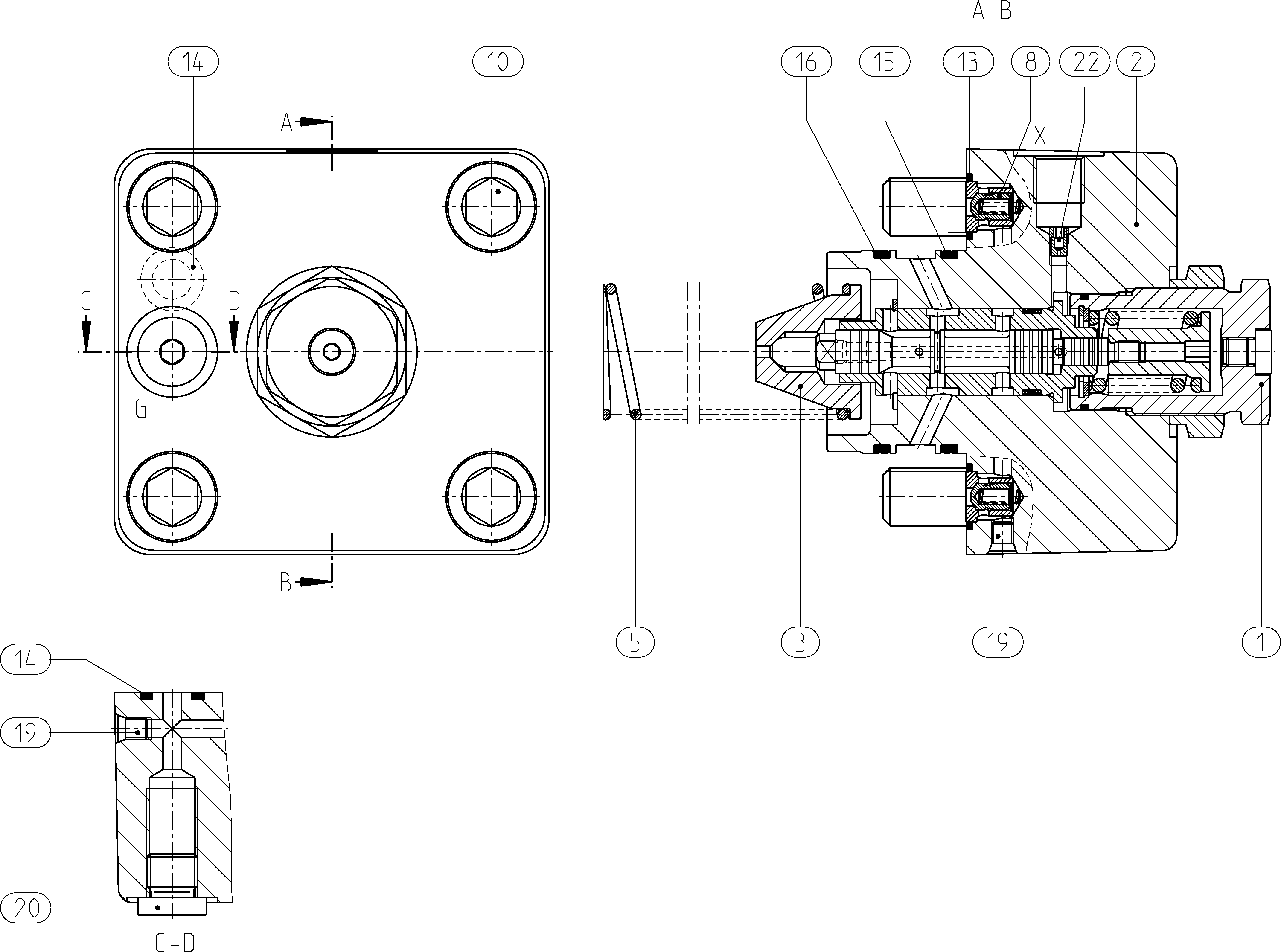

Baugruppe
CONTROL PARTR910939721
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910927671 | VALVE INSERT | 1 | ||
| R910939086 | CONTROL HOUSING | 1 | ||
| R910939087 | SPRING DISK | 1 | ||
| R910939088 | SPRING | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RINGD | 4 | ||
| R910535834 | O-RINGD | 2 | ||
| R910939130 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R910923856 | NOZZLE | 1 |
