Baugruppe

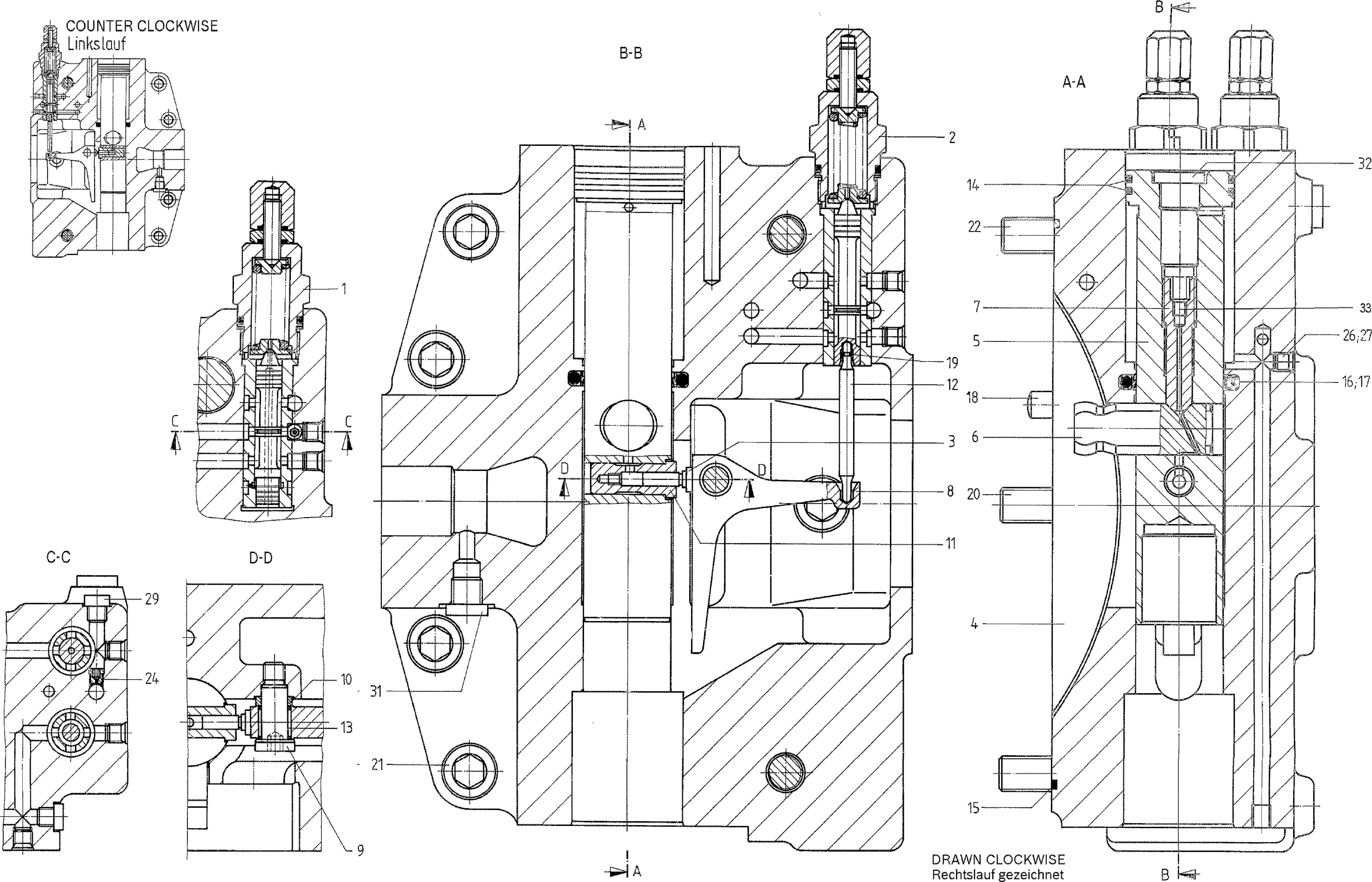

ADJUSTING PIECER910940080
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902533102 | VALVE INSERT | 1 | ||
| R910942897 | VALVE INSERT | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910940073 | COVER PLATE | 1 | ||
| R902538864 | POSITIONING PISTON | 1 | ||
| R902413009 | POSITIONING STUD | 1 | ||
| R902538789 | SETSCREW | 1 | ||
| R910922096 | LEVER | 1 | ||
| R910921037 | STUD BOLT | 1 | ||
| R910912065 | WASHER | 1 | ||
| R910997327 | BUSHING | 1 | ||
| R910940001 | CONNECTING ROD | 1 | ||
| R910909603 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R910802013 | RECTANGULAR RINGD | 2 | ||
| R910930567 | O-RINGD | 1 | ||
| R910907799 | ROD SEALD | 1 | ||
| R910103926 | O-RINGD | 1 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R910907170 | O-RINGD | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 1 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910836761 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909154024 | SCREW PLUGD | 3 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909156493 | NOZZLE | 1 |
