Baugruppe

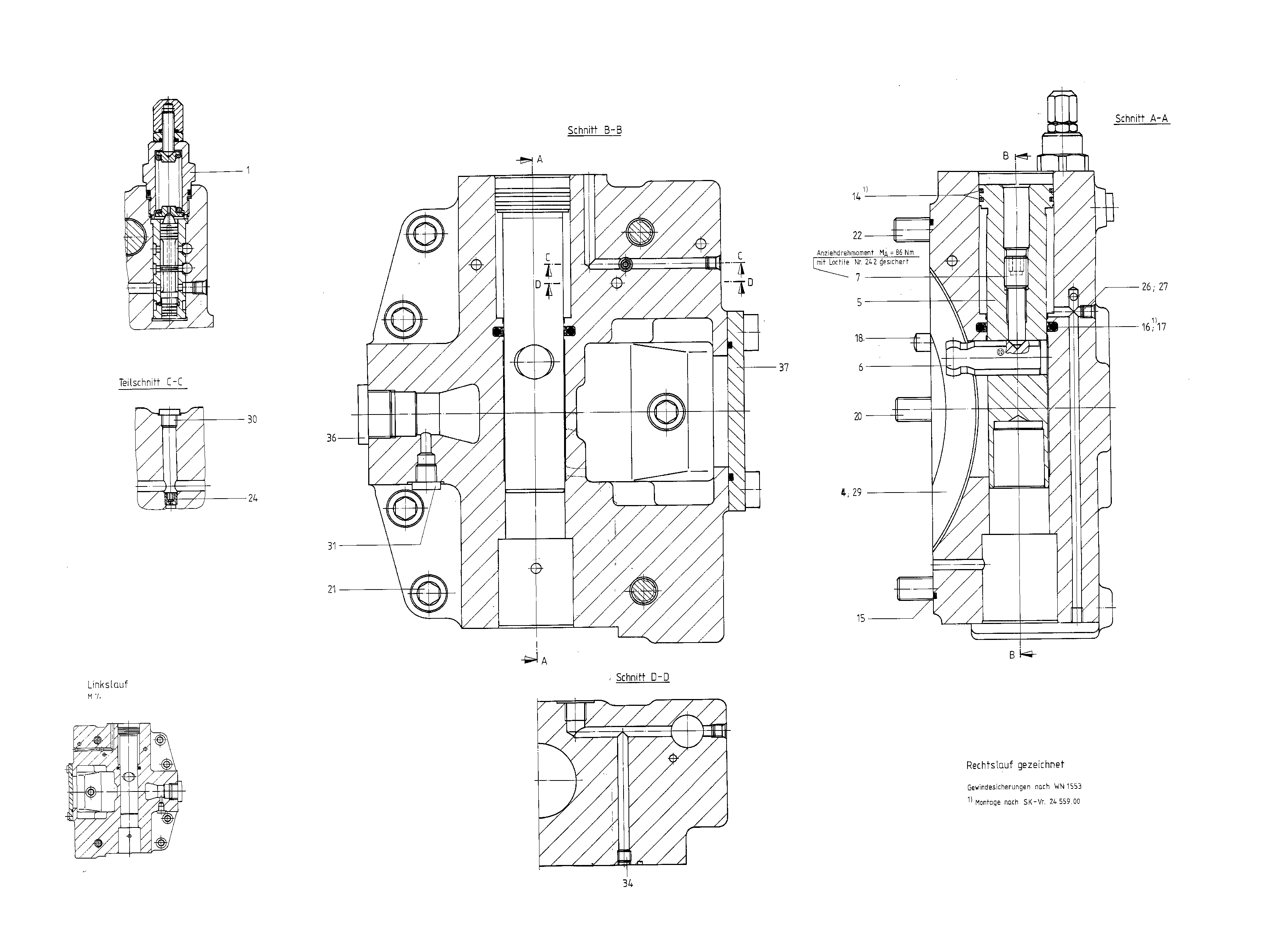

ADJUSTING PIECER910940401
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902533102 | VALVE INSERT | 1 | ||
| 4 | R910940404 | COVER PLATE | 1 | |
| R902477242 | POSITIONING PISTON | 1 | ||
| 6 | R902413010 | POSITIONING STUD | 1 | |
| R902475687 | SETSCREW | 1 | ||
| R910802013 | RECTANGULAR RINGD | 2 | ||
| 15 | R910930567 | O-RINGD | 1 | |
| 16 | R910907799 | ROD SEALD | 1 | |
| 17 | R910103926 | O-RINGD | 1 | |
| 18 | R910910938 | STRAIGHT PIN | 2 | |
| 20 | R910209228 | SOCKET HEAD CAP SCREW | 1 | |
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| 24 | R910834491 | THROTTLE SCREW | 1 | |
| 26 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 27 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| 29 | R909154024 | SCREW PLUGD | 2 | |
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910101079 | SETSCREW | 1 | ||
| R909153861 | SCREW PLUG | 1 | ||
| R910918561 | BLANK FLANGE Stückliste der Baugruppe →L | 1 |
