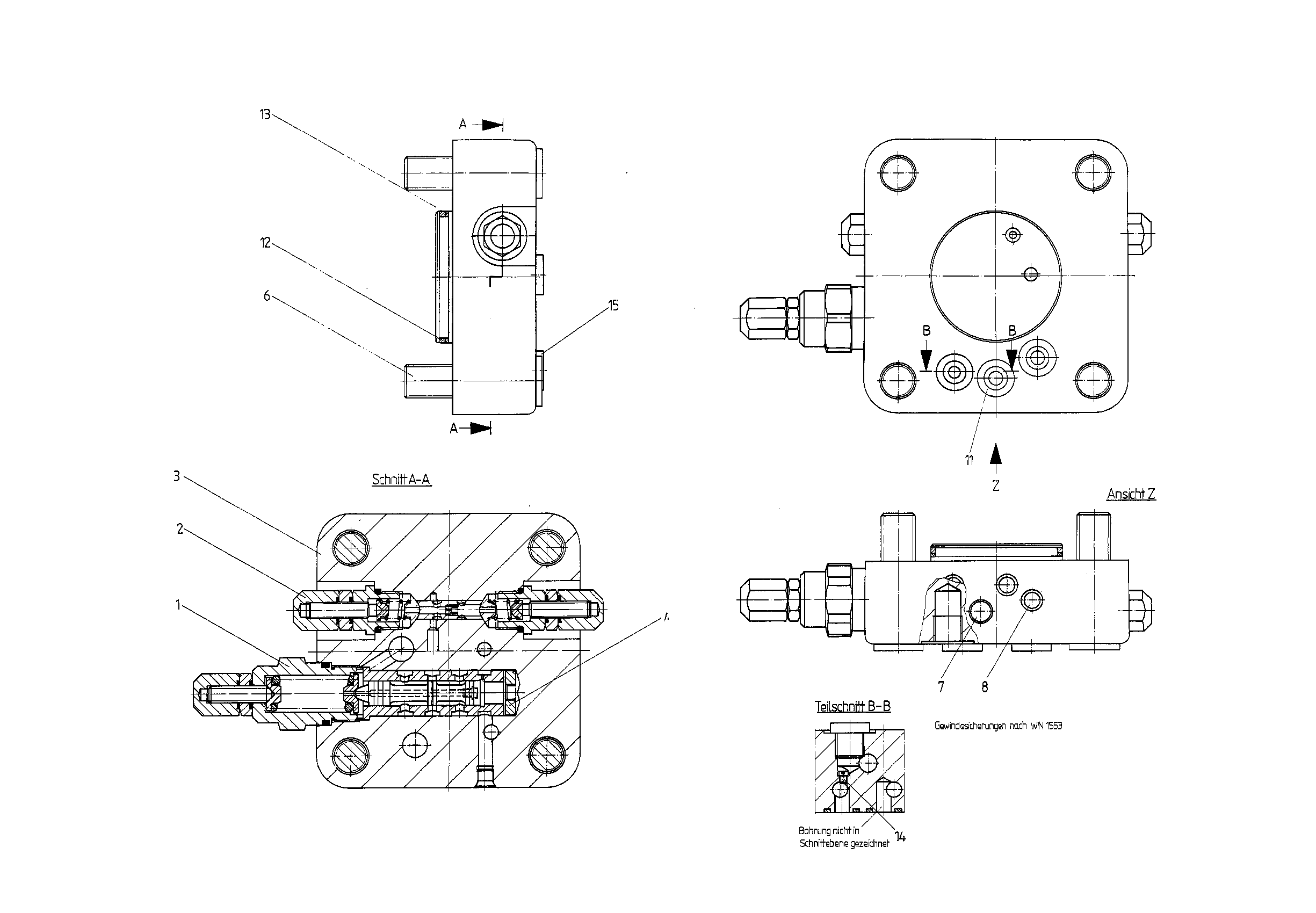

Baugruppe
COVERR910941253
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910947358 | VALVE INSERT | 1 | ||
| R910930690 | SWIVEL TIME LIMITING VALVE Stückliste der Baugruppe →L | 1 | ||
| R910941256 | COVER | 1 | ||
| R910960086 | STOP DISC | 1 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831320 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910523003 | O-RINGD | 3 | ||
| R910522465 | O-RINGD | 1 | ||
| R910927882 | BACKUP RINGD | 1 | ||
| R910593044 | NOZZLE | 1 | ||
| R909151979 | SCREW PLUGD | 2 |
