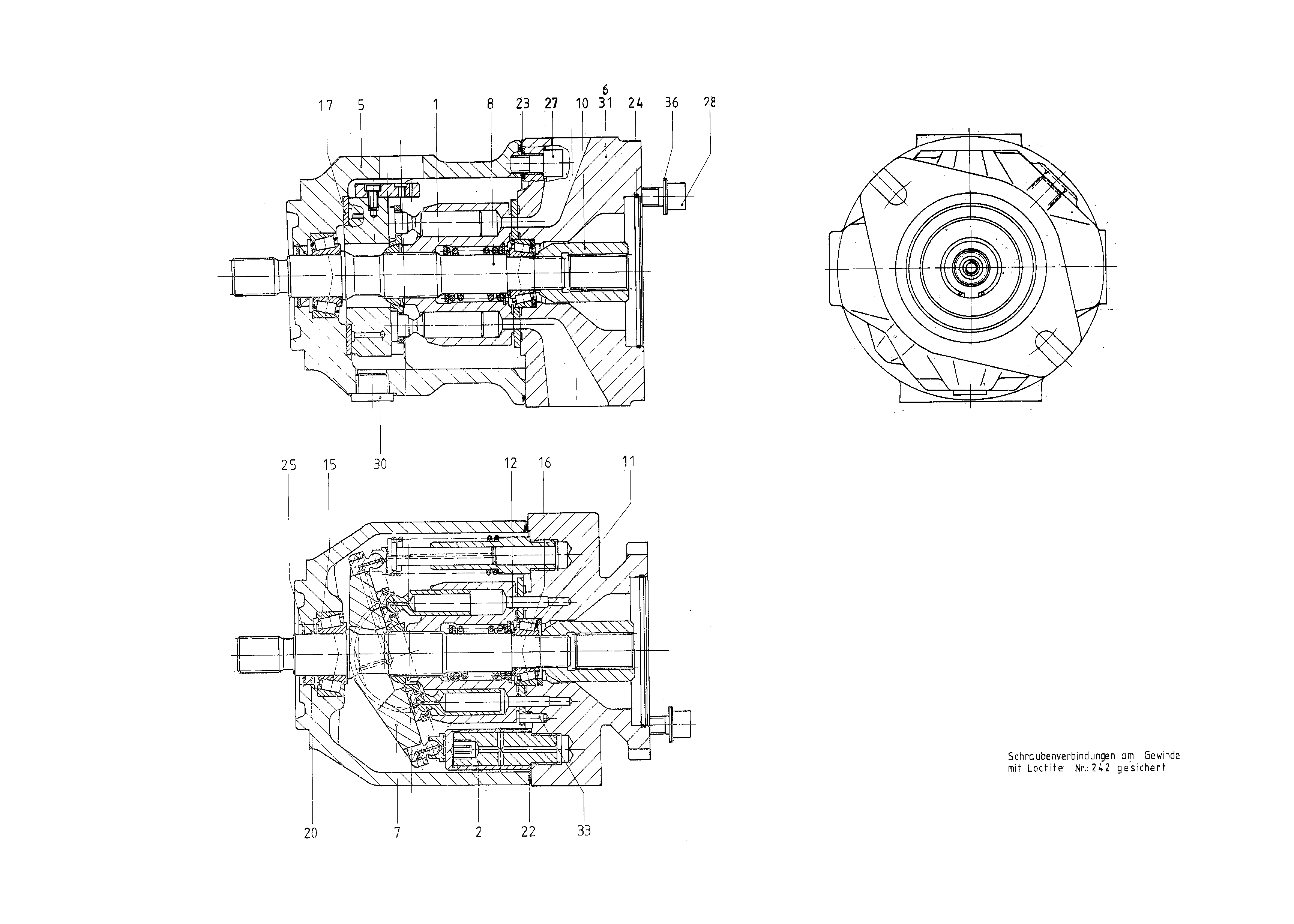

Baugruppe
BASE UNITR910945840
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435271 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910910852 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| 5 | R902546051 | PUMP HOUSING | 1 | |
| 6 | R902465593 | CONNECTION PLATE | 1 | |
| R910961029 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902417395 | DRIVE SHAFT | 1 | ||
| 10 | R902436103 | SPLINED COUPLING | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| 23 | R913052111 | R-RINGD | 4 | |
| R910640182 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910220264 | SOCKET HEAD CAP SCREW | 4 | |
| R910967343 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
