Baugruppe

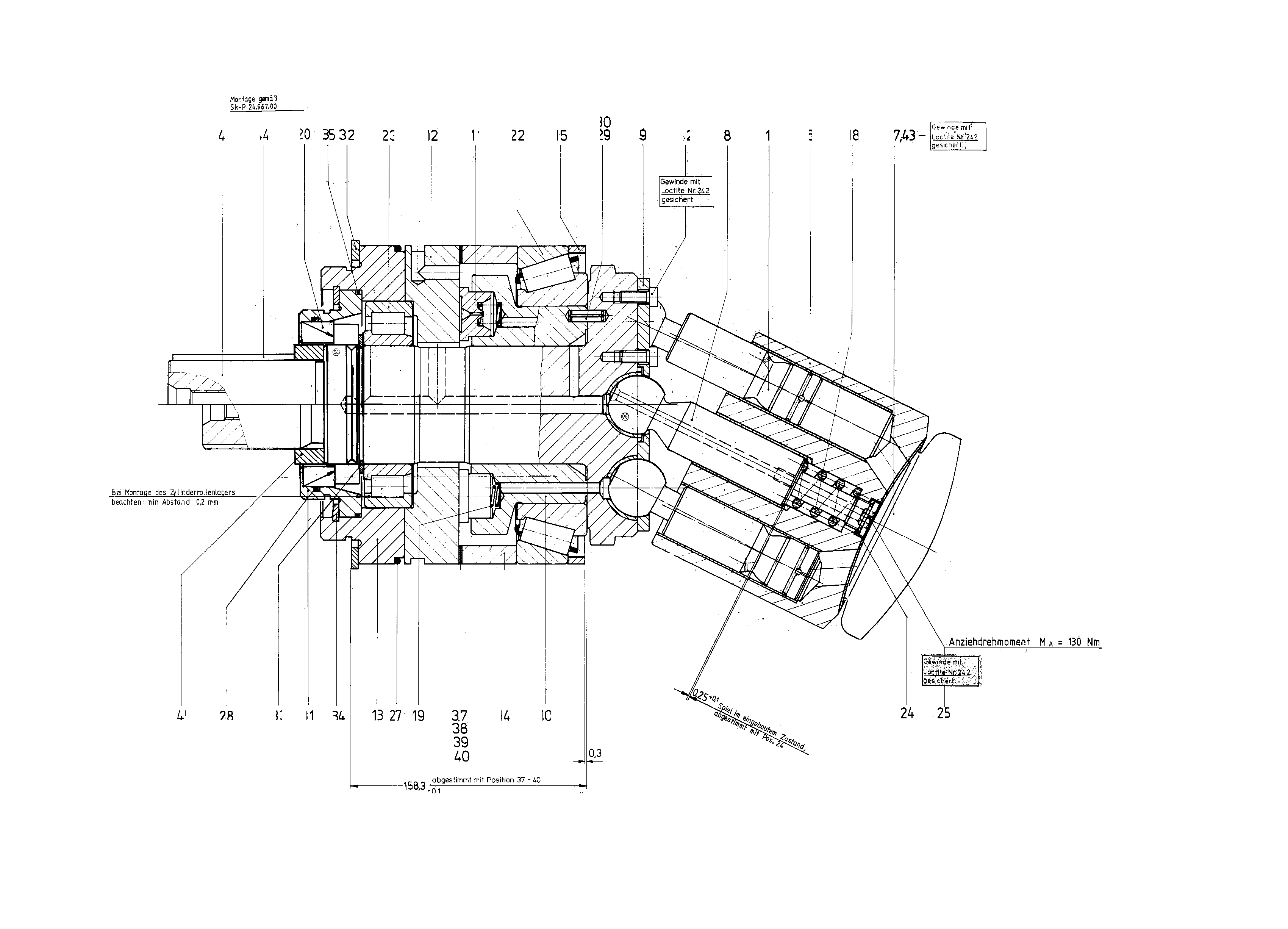

ROTARY GROUPR910946079
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910931276 | PISTON | 7 | ||
| R910913933 | DRIVE FLANGE | 1 | ||
| 6 | R910620386 | CYLINDER | 1 | |
| 7 | R910910600 | CONTROL LENS | 1 | |
| R910795127 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| 10 | R910742406 | PAD SUPPORT WITH SEAL | 1 | |
| 11 | R910742465 | PAD | 7 | |
| 12 | R910742376 | SLIDING DISC | 1 | |
| 13 | R910903644 | SEALING FLANGE | 1 | |
| 14 | R910742414 | SPACER RING | 1 | |
| 15 | R910742422 | RING | 1 | |
| 18 | R910678775 | COMPRESSION SPRING | 1 | |
| 19 | R910717207 | COMPRESSION SPRING | 7 | |
| 20 | R910915310 | SLIDE RING SEALD | 1 | |
| R902650818 | TAPERED-ROLLER BEARING | 1 | ||
| 23 | R910742481 | CYL. ROLLER BEARING | 1 | |
| R910941891 | SHIM RING | 1 | ||
| R910941867 | SPACER SCREW | 1 | ||
| 27 | R910636355 | O-RINGD | 1 | |
| 28 | R910905117 | O-RINGD | 1 | |
| R910117676 | SLOTTED SPRING PIN | 1 | ||
| 30 | R910073598 | SLOTTED SPRING PIN | 1 | |
| 31 | R910905101 | SEALING FLANGE | 1 | |
| 32 | R910513202 | RETAINING RING | 1 | |
| 33 | R910903297 | RETAINING RING | 1 | |
| R910903569 | RETAINING RING | 1 | ||
| 35 | R910186988 | O-RINGD | 1 | |
| 37 | R910621498 | SHIM RING | 1 | |
| 38 | R910516538 | SHIM RING | 1 | |
| R910516511 | SHIM RING | 1 | ||
| R910516503 | SHIM RING | 2 | ||
| 42 | R910110167 | SOCKET HEAD CAP SCREW | 14 | |
| 43 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 44 | R910793264 | PARALLEL KEY | 1 | |
| 45 | R910793272 | SPACER RING | 1 |
