Baugruppe

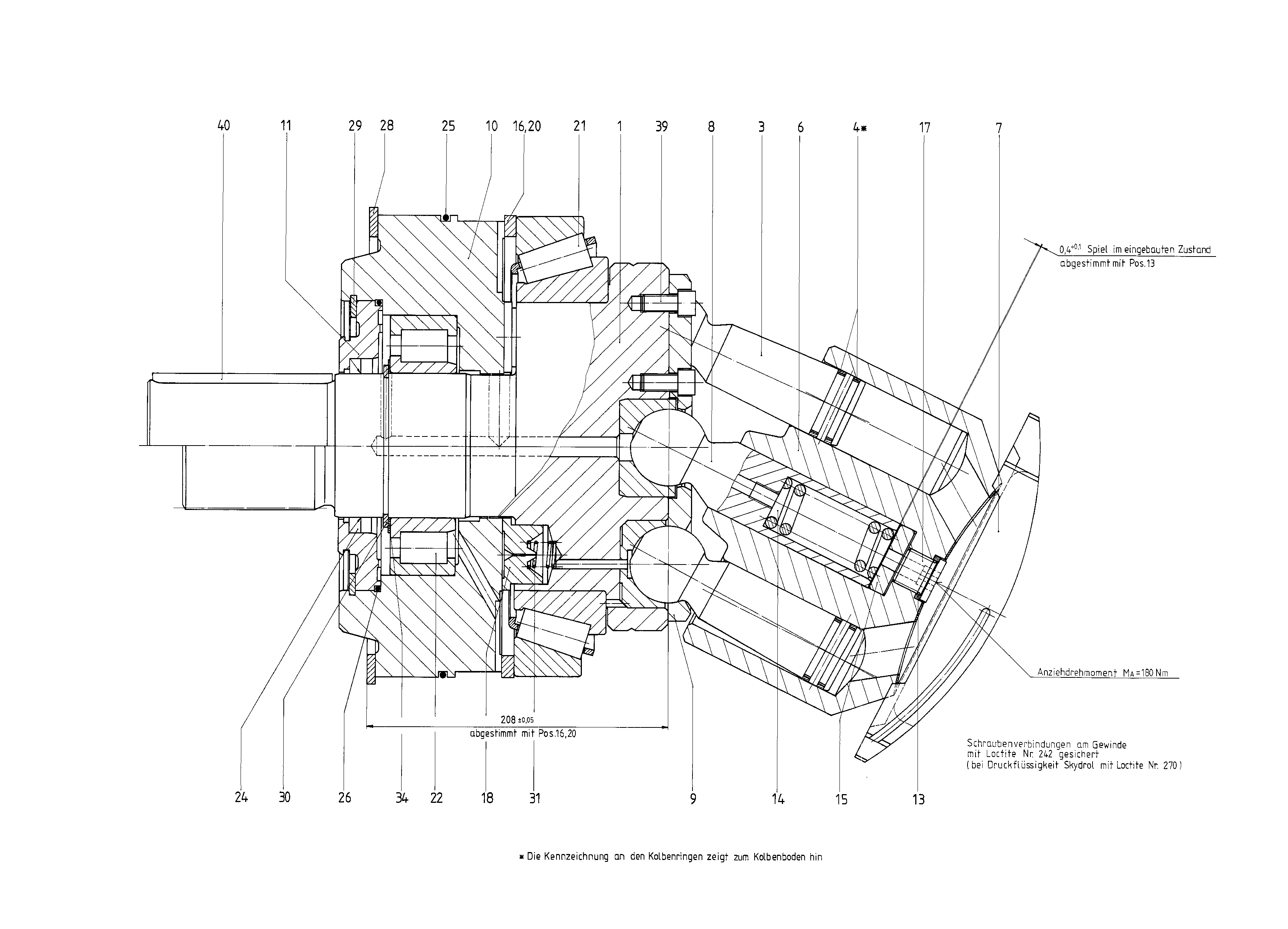

ROTARY GROUPR910948517
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902408951 | DRIVE FLANGE | 1 | ||
| 3 | R902533119 | PISTON | 7 | |
| 6 | R910948239 | CYLINDER | 1 | |
| R910986033 | CONTROL LENS Stückliste der Baugruppe →L | 1 | ||
| 8 | R902537509 | THRUST JOURNAL | 1 | |
| R910935251 | RETAINING PLATE | 1 | ||
| 10 | R902453221 | BEARING RING | 1 | |
| 11 | R902404946 | SEALING FLANGE | 1 | |
| R910934885 | SHIM RING | 1 | ||
| R910934886 | SPRING | 1 | ||
| R910934647 | WASHER | 1 | ||
| 16 | R902416437 | TUNING KIT | 1 | |
| R910934888 | SPACER SCREW | 1 | ||
| R910741973 | PAD | 7 | ||
| R902650821 | TAPERED-ROLLER BEARING | 1 | ||
| 22 | R910467863 | CYL. ROLLER BEARING | 1 | |
| R910934889 | SHAFT SEALING RING | 1 | ||
| R910187364 | O-RINGD | 1 | ||
| R902650567 | O-RINGD | 1 | ||
| 28 | R910638196 | RETAINING RING | 1 | |
| 29 | R910127701 | RETAINING RING | 1 | |
| R910105864 | RETAINING RING | 1 | ||
| R910715247 | COMPRESSION SPRING | 7 | ||
| 34 | R910621471 | SHIM RING | 1 | |
| R910194484 | SOCKET HEAD CAP SCREW | 14 |
