Baugruppe

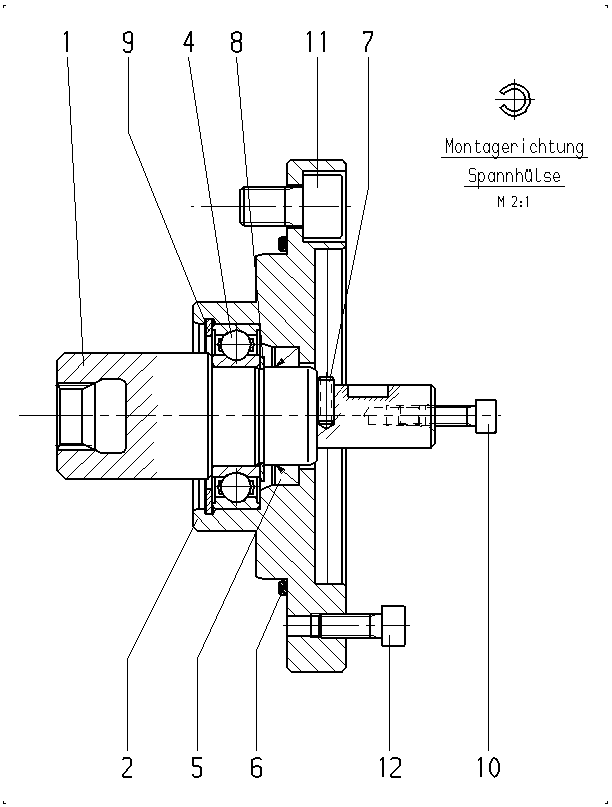

TACHOMETER DRIVE SHAFTR910960724
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910960596 | TACHOMETER SHAFT | 1 | ||
| R910960725 | INTERMEDIATE FLANGE | 1 | ||
| R910960652 | DEEP-GROOVE BALL BEARING | 1 | ||
| R910794325 | SHAFT SEALING RING | 1 | ||
| R910111945 | O-RING | 1 | ||
| R902651069 | SLOTTED SPRING PIN | 1 | ||
| R910105783 | RETAINING RING | 1 | ||
| R910150576 | RETAINING RING | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083057 | SOCKET HEAD CAP SCREW | 2 | ||
| R910109282 | SOCKET HEAD CAP SCREW | 6 | ||
| 13 | R910973922 | REFERENCE PLATE | 1 |
