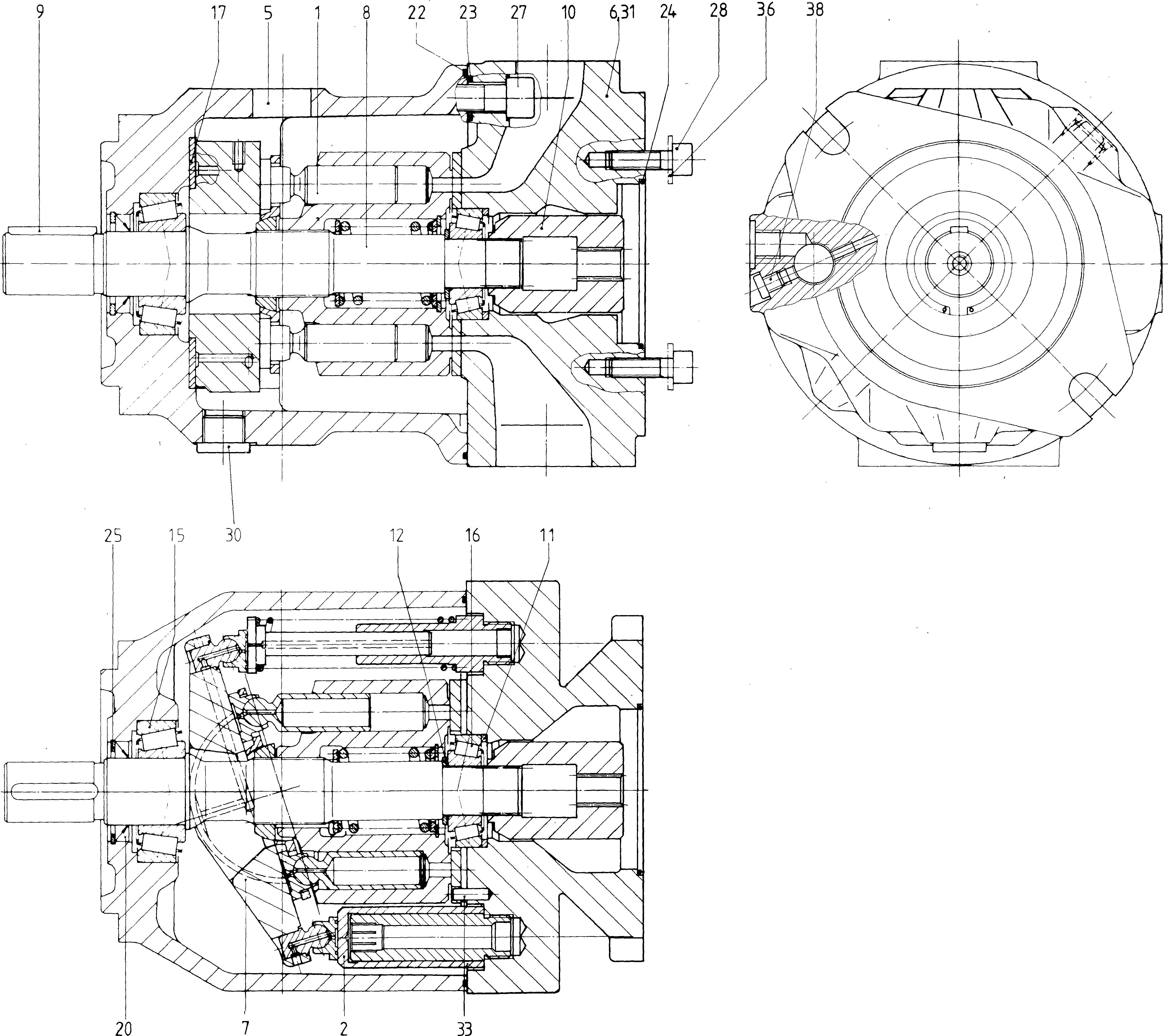

Baugruppe
BASE UNITR910962497
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910985876 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910935916 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R910987807 | PUMP HOUSING | 1 | ||
| R902424002 | CONNECTION PLATE | 1 | ||
| R902467246 | SWASH PLATE | 1 | ||
| R910987680 | DRIVE SHAFT | 1 | ||
| R910902888 | PARALLEL KEY | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987843 | STOP RING | 1 | |
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910631175 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 | |
| R909156863 | SCREW PLUG | 1 |
