Baugruppe

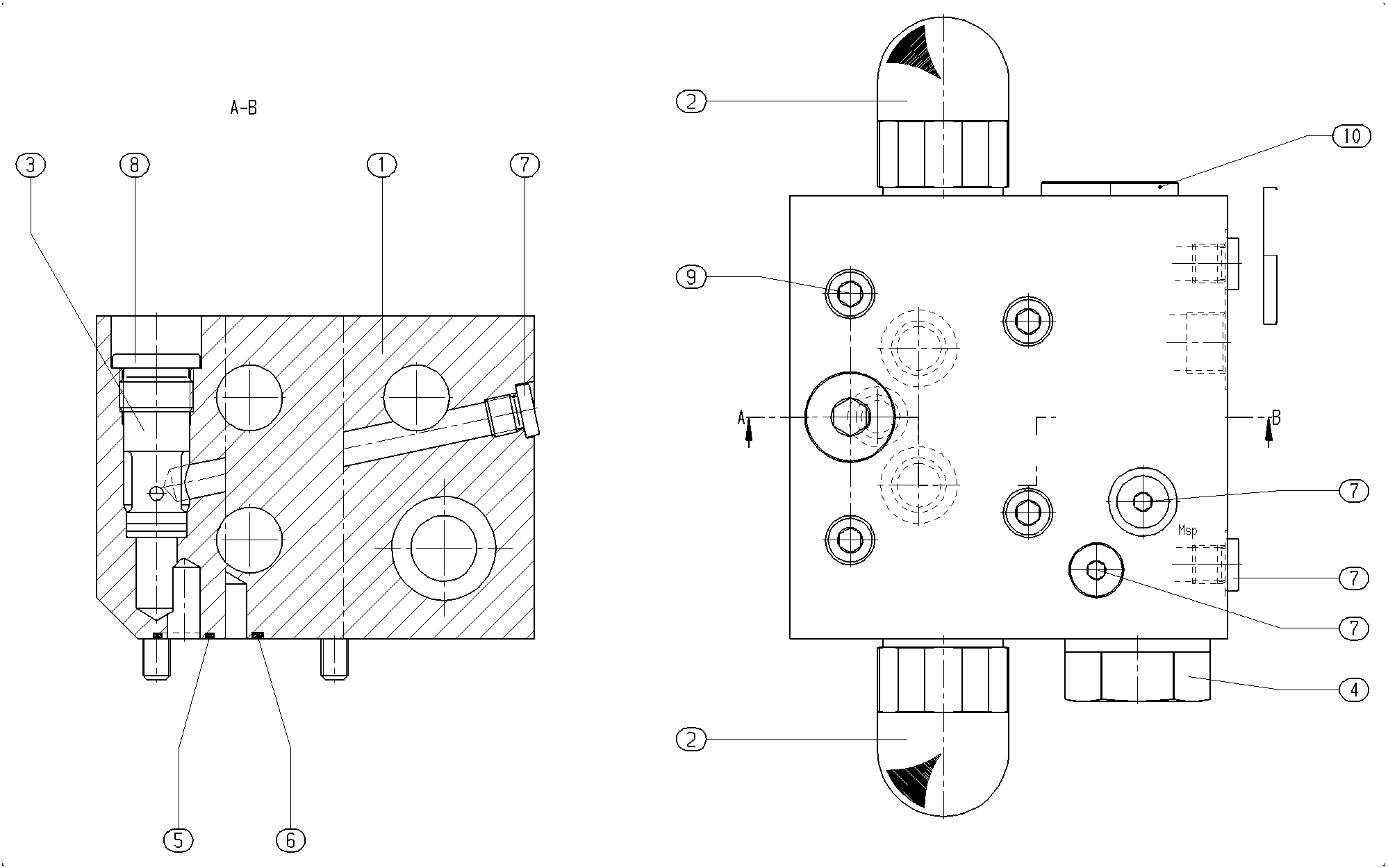

VALVE BLOCKR910964551
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910908848 | HOUSING | 1 | ||
| R910718335 | PRESSURE RELIEF VALVE | 2 | ||
| R900346082 | HY-CHECK VALVE Stückliste der Baugruppe →L | 1 | ||
| R910908839 | FLUSHING VALVE Stückliste der Baugruppe →L | 1 | ||
| R910102148 | O-RINGD | 1 | ||
| R910102202 | O-RINGD | 2 | ||
| R909151979 | SCREW PLUGD | 5 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910109746 | SOCKET HEAD CAP SCREW | 4 | ||
| R902432869 | SCREW PLUG | 1 |
