Baugruppe

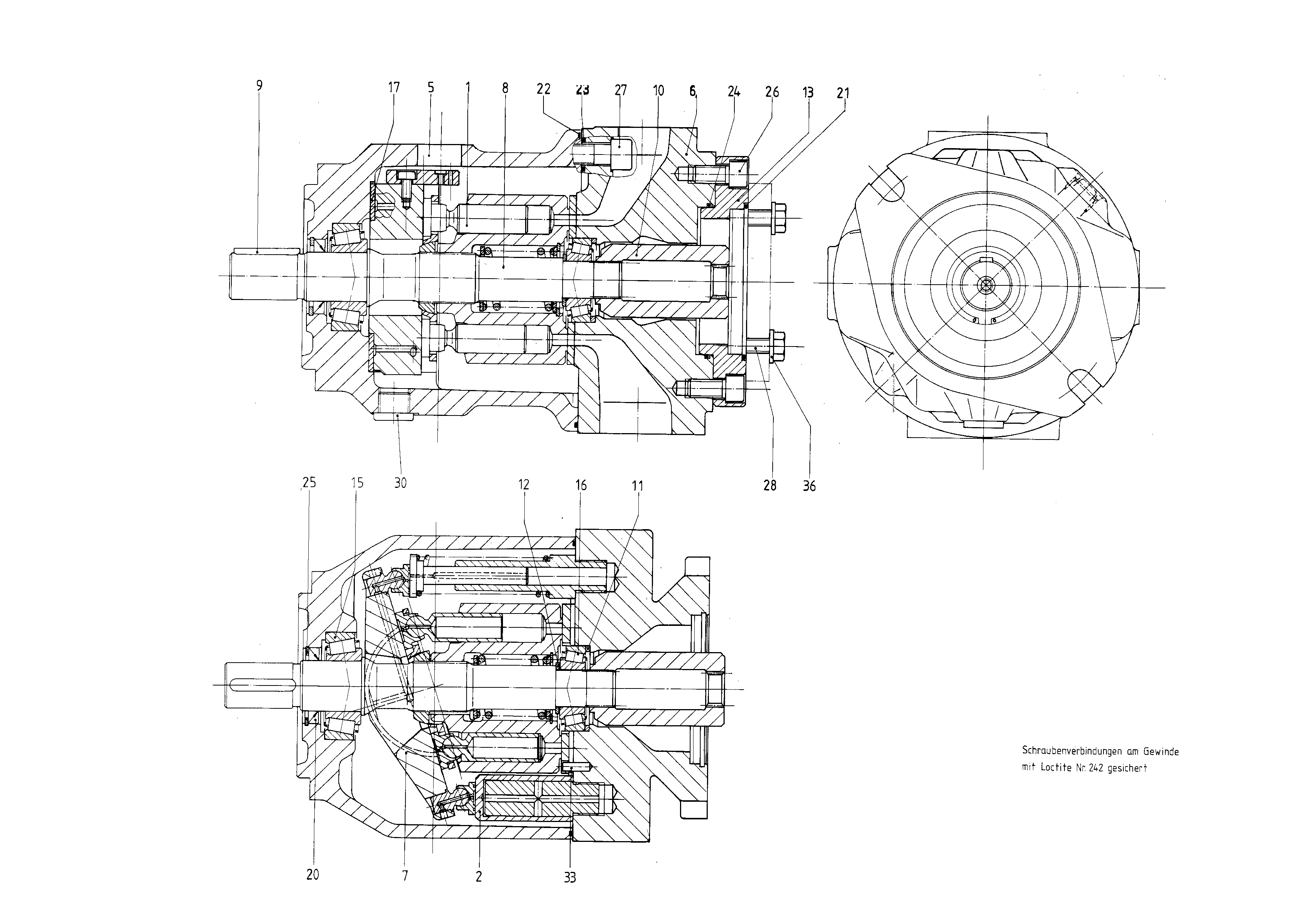

BASE UNITR910966641
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910956007 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910910873 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| 5 | R910915782 | PUMP HOUSING | 1 | |
| 6 | R902427984 | CONNECTION PLATE | 1 | |
| R910961022 | SWASH PLATE | 1 | ||
| 8 | R910987680 | DRIVE SHAFT | 1 | |
| 9 | R910902888 | PARALLEL KEY | 1 | |
| R910943798 | SPLINED COUPLING | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| 13 | R910918216 | INTERMEDIATE FLANGE | 1 | |
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910112127 | O-RINGD | 1 | ||
| R910720194 | O-RINGD | 1 | ||
| 23 | R913052118 | R-RINGD | 4 | |
| R910384259 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 | ||
| 27 | R910110272 | SOCKET HEAD CAP SCREW | 4 | |
| R909151694 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
