Baugruppe

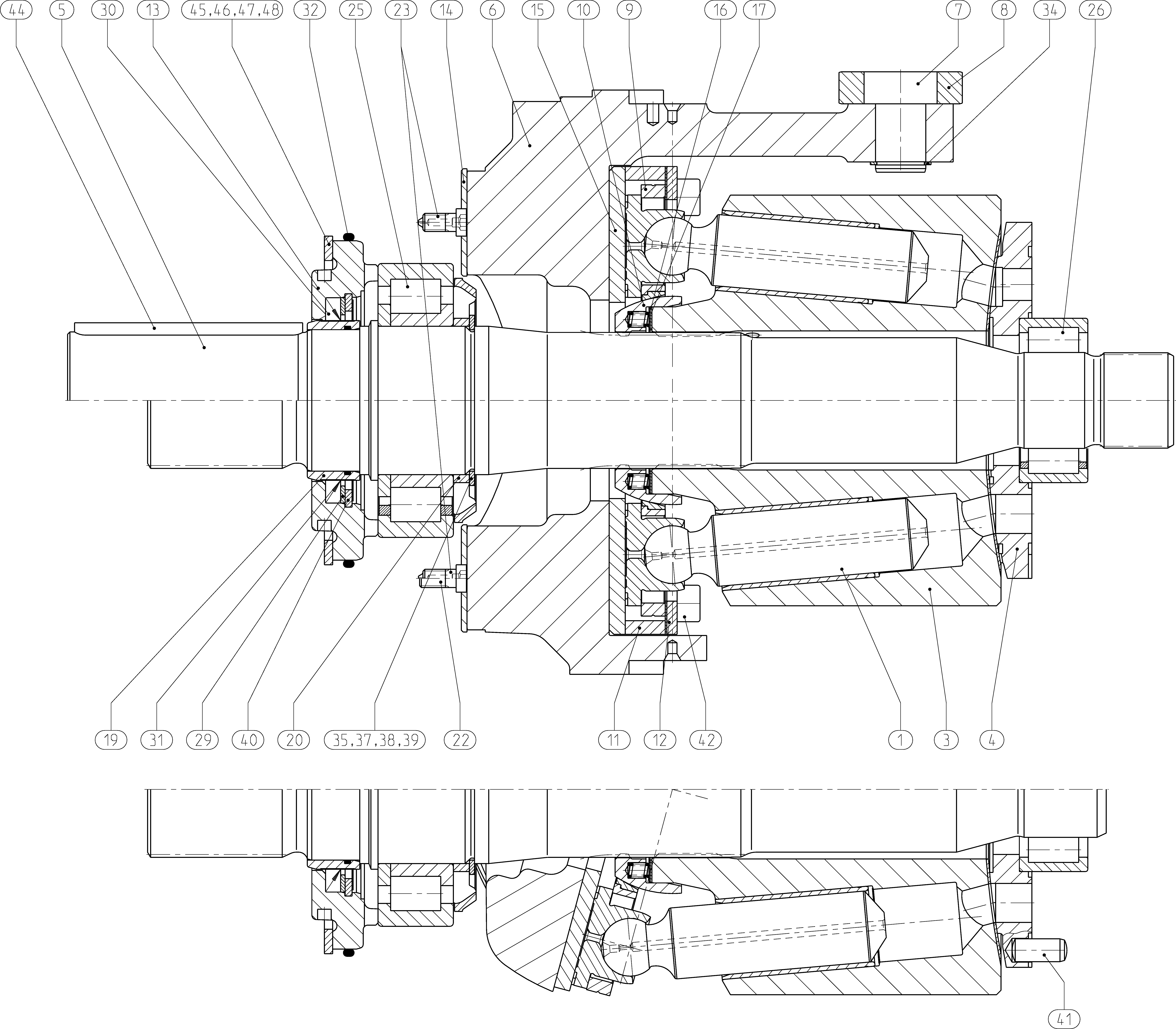

ROTARY GROUPR910974729
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902436846 | PISTON PAD | 9 | ||
| R910988749 | CYLINDER | 1 | ||
| R910933034 | DISTRIBUTOR PLATE | 1 | ||
| R910997133 | DRIVE SHAFT | 1 | ||
| R910974944 | SWASH PLATE | 1 | ||
| R910909319 | DRIVER PIVOT | 1 | ||
| R910909564 | SLIDER | 1 | ||
| R902439646 | RETAINING PLATE | 1 | ||
| R902488920 | RETAINING BALL | 1 | ||
| R902496074 | SEGMENT | 2 | ||
| R910991306 | SEALING FLANGE | 1 | ||
| R910946527 | BEARING SHELL | 2 | ||
| R910909343 | SLIDING DISC | 1 | ||
| R902400656 | SHIM RING | 2 | ||
| R902400657 | SHIM RING | 1 | ||
| 18 | R902445176 | SHIM RING | 1 | |
| R910989659 | SEAL BUSHING | 1 | ||
| R910974565 | FEED WHEEL | 1 | ||
| R910949038 | SETTING SCREW | 1 | ||
| R910932882 | SETTING SCREW | 1 | ||
| R910960739 | CYL. ROLLER BEARING | 1 | ||
| R910909424 | CYL. ROLLER BEARING | 1 | ||
| R902400796 | SHIM RING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910274011 | O-RING | 1 | ||
| R910629944 | O-RINGD | 1 | ||
| R910187941 | RETAINING RING | 1 | ||
| R910105856 | RETAINING RING | 1 | ||
| R910979458 | RETAINING RING | 1 | ||
| R910979459 | RETAINING RING | 1 | ||
| R910986334 | RETAINING RING | 1 | ||
| R910189022 | RETAINING RING | 1 | ||
| — | STRAIGHT PIN | 1 | ||
| R902650867 | SOCKET HEAD CAP SCREW | 4 | ||
| R910103586 | PARALLEL KEY | 1 | ||
| R910991792 | RETAINING RING | 1 | ||
| R910991793 | RETAINING RING | 1 | ||
| R910991794 | RETAINING RING | 1 | ||
| R910991795 | RETAINING RING | 1 |
