Baugruppe

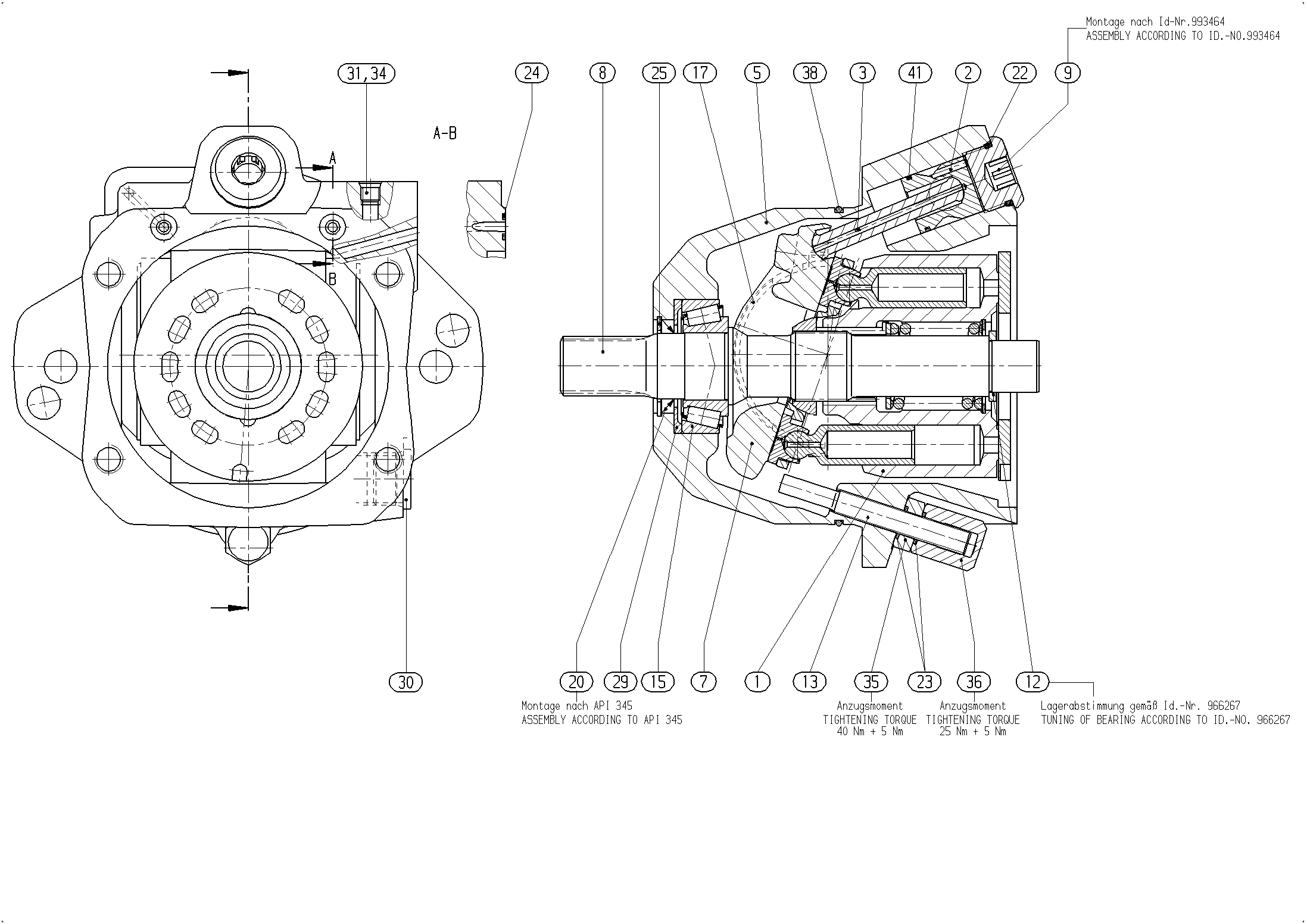

BASE UNITR910975054
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910969289 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910994095 | MOTOR HOUSING | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| 9 | R902402379 | SCREW PLUG | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R910965435 | O-RINGD | 1 | ||
| 23 | R910804886 | O-RINGD | 2 | |
| R910942133 | R-RING | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910987963 | STOP RING | 1 | ||
| 30 | R910967343 | SCREW PLUGD | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R910977645 | BREAK-OFF PLUG | 1 | |
| R910998240 | NUT | 1 | ||
| 36 | R910961839 | CAP NUT | 1 | |
| R910928325 | O-RING | 1 | ||
| 41 | R909156962 | R-RING | 1 |
