Baugruppe

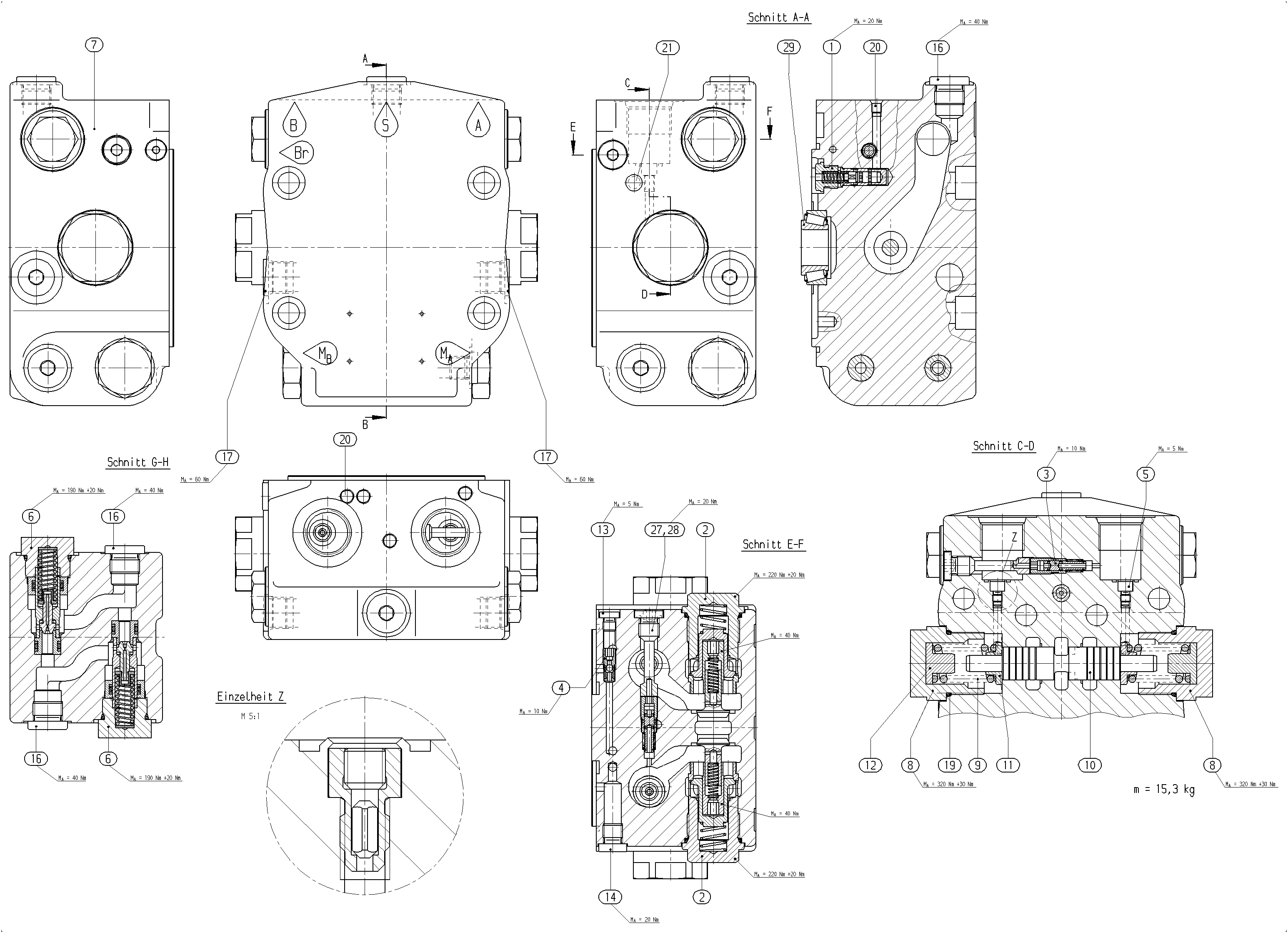

CONNECTION PLATER910975143
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902400712 | BRAKE RELEASE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902038539 | CHECK VALVE | 2 | ||
| R902407296 | VALVE | 1 | ||
| R902423170 | SHUTTLE VALVE | 1 | ||
| R902190719 | THROTTLE VALVE Stückliste der Baugruppe →L | 2 | ||
| R910984812 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R910974965 | CONNECTION PLATE | 1 | ||
| R902404150 | SCREW PLUG | 2 | ||
| R910976270 | COMPRESSION SPRING | 2 | ||
| R902400534 | PISTON | 1 | ||
| R902025910 | SPRING DISK | 2 | ||
| R902650656 | SCREW PLUG | 1 | ||
| R902650659 | SCREW PLUG | 1 | ||
| R902650697 | SCREW PLUG | 3 | ||
| R910901969 | SCREW PLUG | 2 | ||
| R909831230 | O-RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902431751 | SCREW PLUG | 1 | ||
| R902601634 | SEAL RING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 |
