Baugruppe

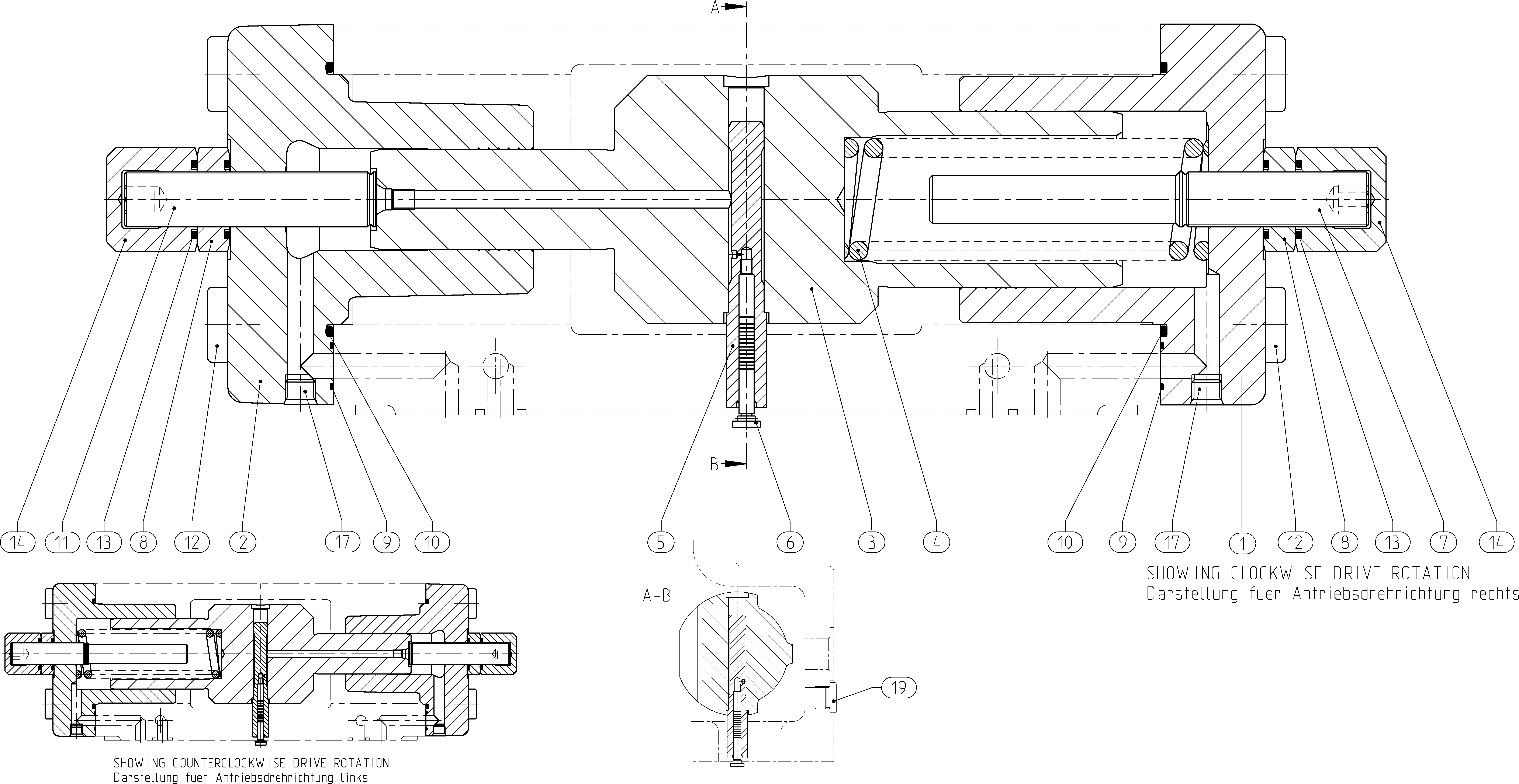

ADJUSTING PIECER910985171
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910912243 | PISTON HOUSING | 1 | ||
| R910961951 | PISTON HOUSING | 1 | ||
| R902530859 | ADJUSTING PISTON | 1 | ||
| R910914783 | COMPRESSION SPRING | 1 | ||
| R910984915 | BUSHING | 1 | ||
| R902548429 | PISTON PAD | 1 | ||
| R902519581 | STUD BOLT | 1 | ||
| R910912241 | NUT | 2 | ||
| R910525618 | O-RINGD | 2 | ||
| R910919988 | O-RINGD | 2 | ||
| R902519552 | STUD BOLT | 1 | ||
| R902572932 | SOCKET HEAD CAP SCREW | 8 | ||
| R910531243 | O-RINGD | 4 | ||
| R910912240 | CAP NUT | 2 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| 20 | R909156984 | SCREW PLUGD | 1 |
