Baugruppe

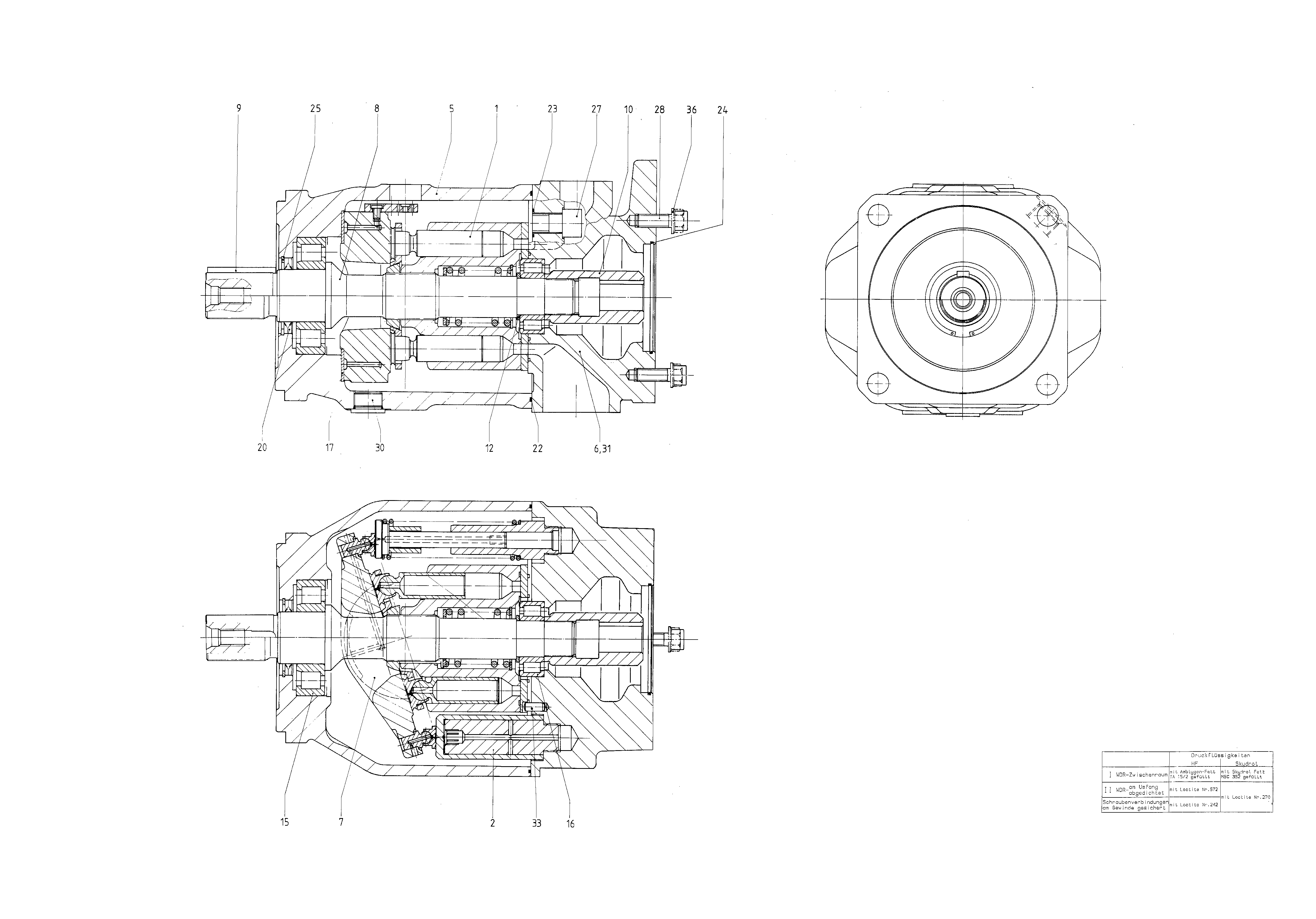

BASE UNITR910986518
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910948999 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 2 | R910942716 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | |
| 5 | R910962417 | PUMP HOUSING | 1 | |
| R910996630 | CONNECTION PLATE | 1 | ||
| 7 | R902446168 | SWASH PLATE | 1 | |
| 8 | R902410694 | DRIVE SHAFT | 1 | |
| 9 | R910244848 | PARALLEL KEY | 1 | |
| R910943555 | SPLINED COUPLING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910934966 | CYL. ROLLER BEARING | 1 | ||
| R910931557 | CYL. ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910931540 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910631175 | O-RINGD | 1 | ||
| 25 | R910941920 | RETAINING RING | 1 | |
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
