Baugruppe

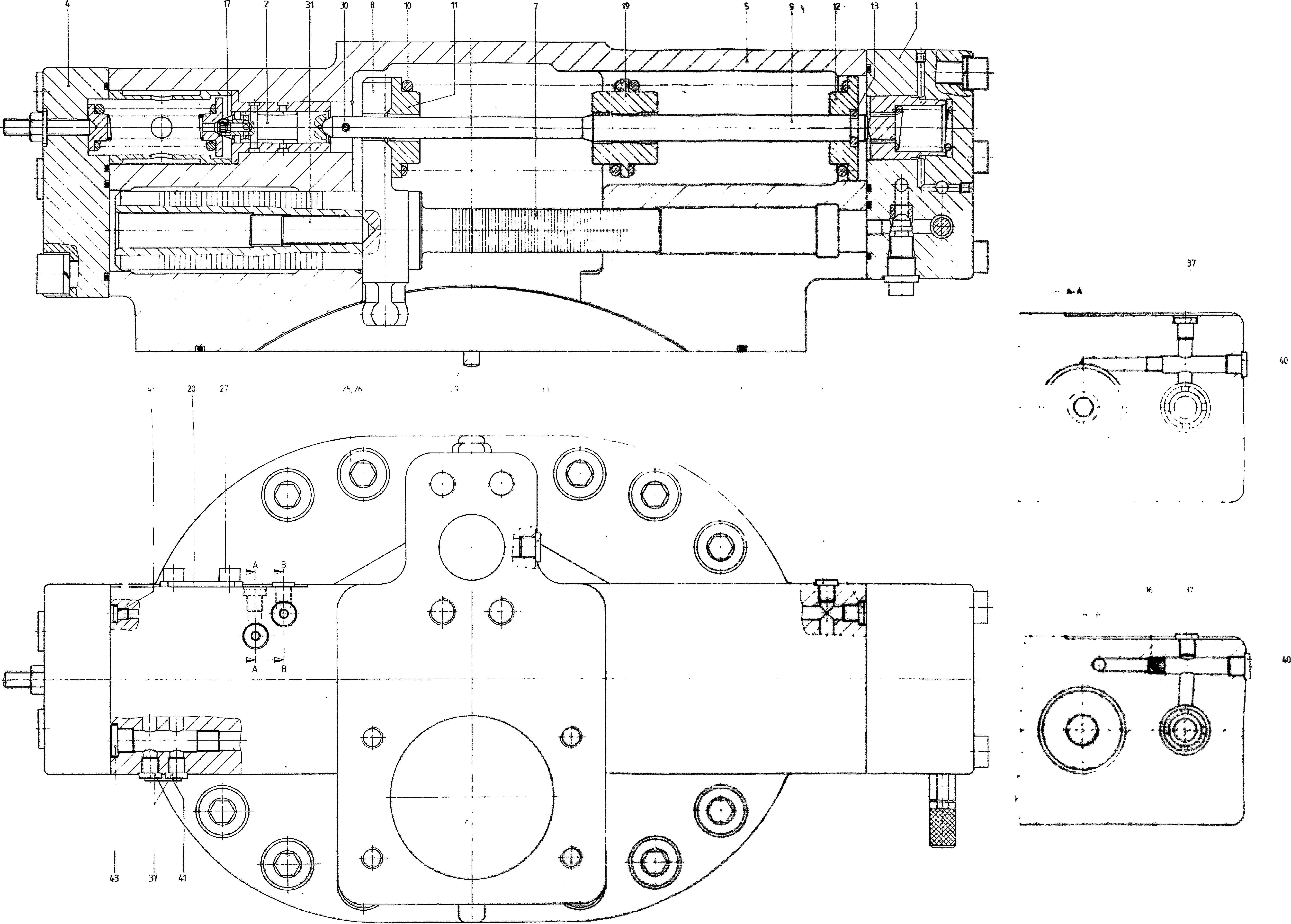

CONTROLR910988211
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910803270 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848832 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910805556 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910850454 | COVER PLATE | 1 | ||
| 6 | R910544752 | O-RINGD | 1 | |
| R910841803 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590304 | GUIDE ROD | 1 | ||
| R910596981 | COMPRESSION SPRING | 2 | ||
| R910590282 | SPRING DISK | 1 | ||
| R910590274 | SPRING DISK | 1 | ||
| R910590207 | RING | 1 | ||
| 16 | R910843571 | THROTTLE SCREW | 1 | |
| R910825654 | THROTTLE SCREW | 1 | ||
| R910596949 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| R902537411 | COVER PLATE Stückliste der Baugruppe →LD | 1 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 12 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 7 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUG | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 45 | R909154024 | SCREW PLUGD | 1 | |
| 64 | R909153816 | SCREW PLUGD | 1 |
