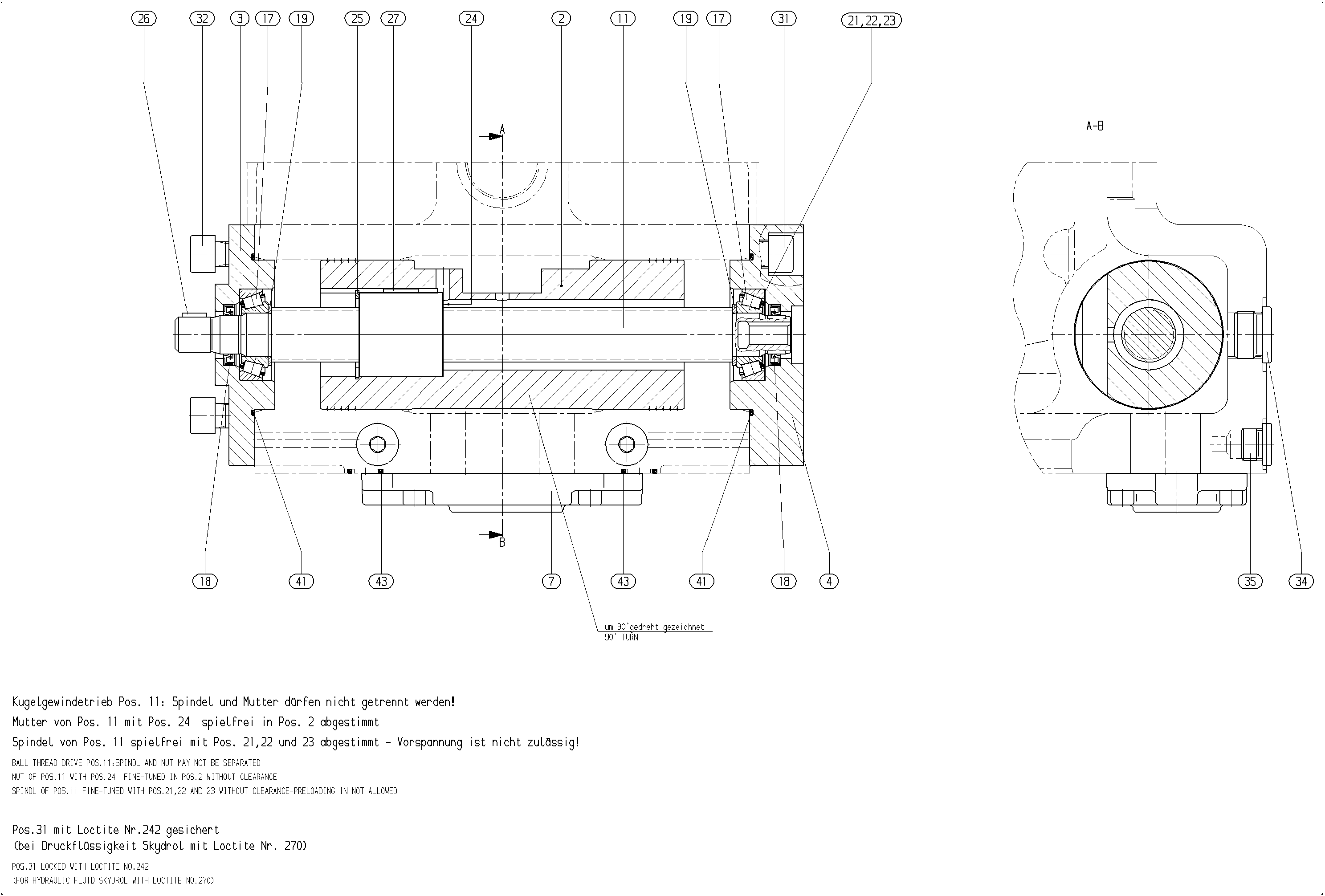

Baugruppe
CONTROLR910988273
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902569794 | ADJUSTING PISTON | 1 | ||
| R910917542 | BEARING FLANGE | 1 | ||
| R910917507 | BEARING FLANGE | 1 | ||
| R910984191 | INTERMEDIATE PLATE Stückliste der Baugruppe →L | 1 | ||
| R910946469 | BALL SCREW ASSEMBLY | 1 | ||
| R910101397 | TAPERED-ROLLER BEARING | 2 | ||
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| R910105449 | SUPPORTING DISC | 2 | ||
| R910585335 | SHIM RING | 1 | ||
| R910635022 | SHIM RING | 1 | ||
| R910635014 | SHIM RING | 1 | ||
| R910126276 | SHIM RING | 2 | ||
| R910150541 | RETAINING RING | 1 | ||
| R910315788 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910109916 | SOCKET HEAD CAP SCREW | 4 | ||
| R910977020 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R902650323 | R-RINGD | 2 | ||
| R910923831 | R-RINGD | 2 |
