Baugruppe

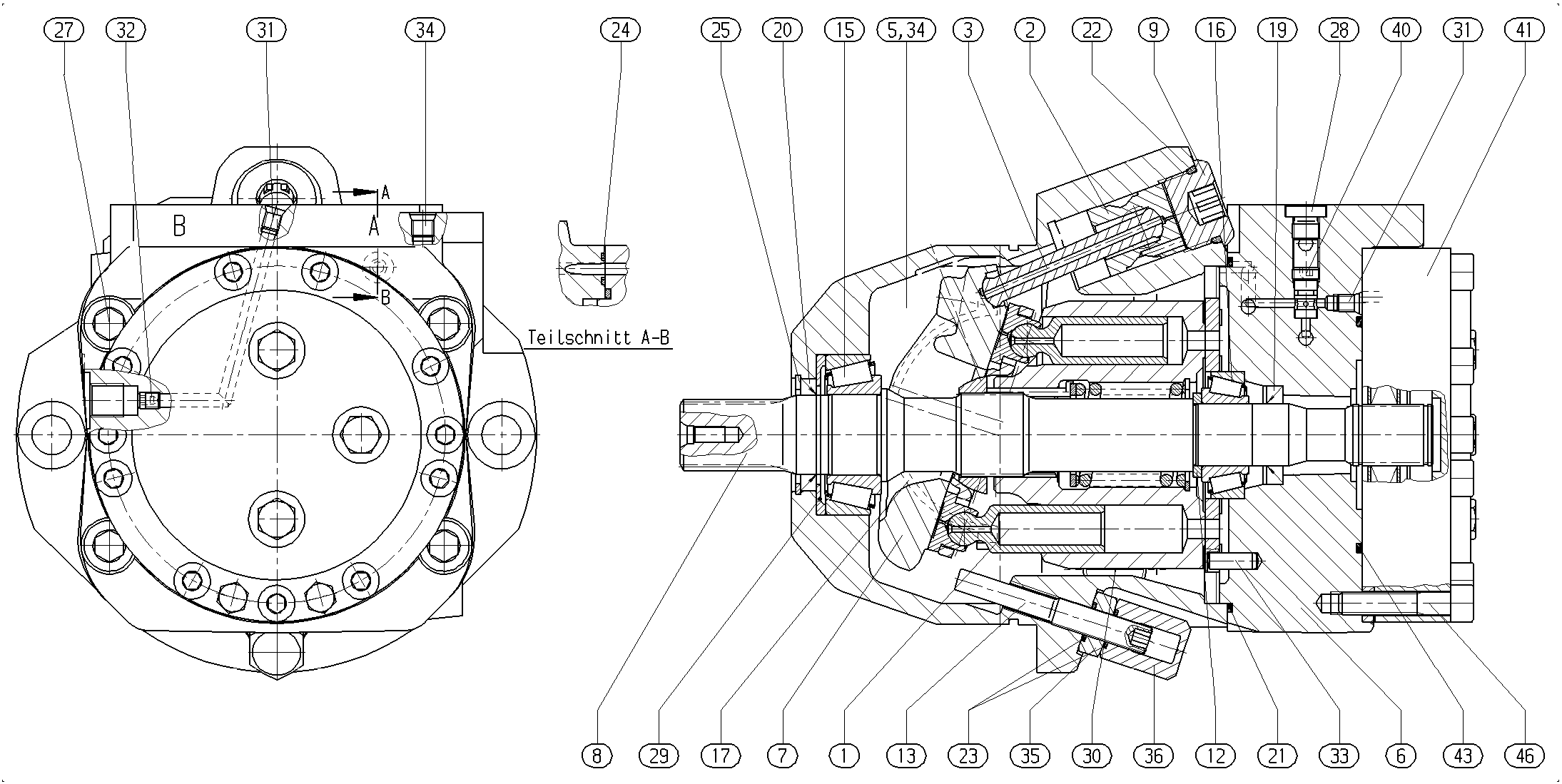

BASE UNITR910990583
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910993694 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902409262 | MOTOR HOUSING | 1 | ||
| R910990148 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902417401 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910126462 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011608 | SCREW PLUG | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910436941 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| R910989608 | BRAKE | 1 | ||
| R910979570 | O-RING | 1 | ||
| R910193216 | SOCKET HEAD CAP SCREW | 11 |
