Baugruppe

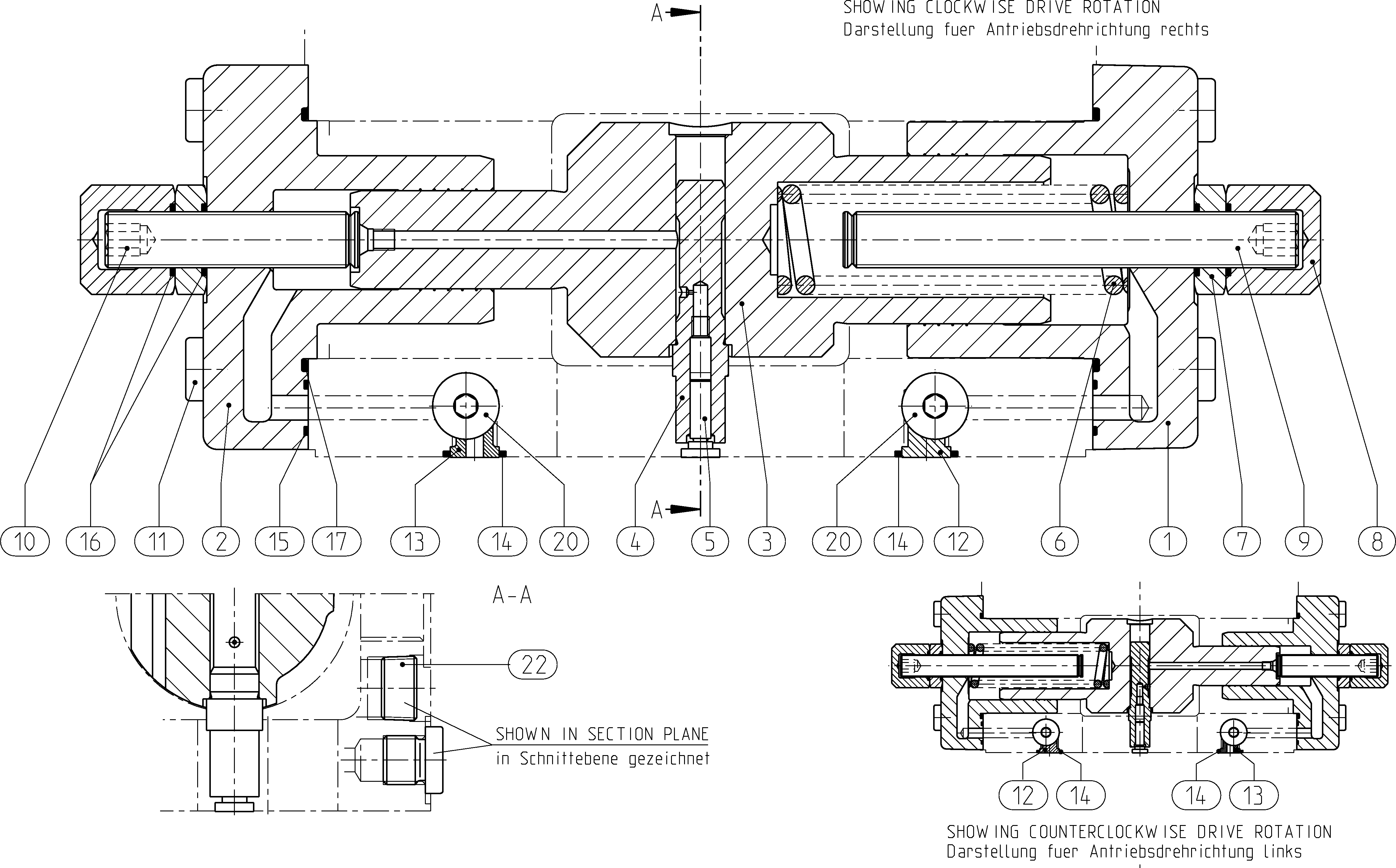

ADJUSTING PIECER910998066
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910903736 | PISTON HOUSING | 1 | ||
| R910961797 | PISTON HOUSING | 1 | ||
| R902530857 | ADJUSTING PISTON | 1 | ||
| R910997977 | BUSHING | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910948624 | COMPRESSION SPRING | 1 | ||
| R910903326 | NUT | 2 | ||
| R910903327 | CAP NUT | 2 | ||
| R902519568 | STUD BOLTD | 1 | ||
| R902519543 | STUD BOLT | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910978691 | PLUG | 1 | ||
| R910978655 | HY-CHECK VALVE Stückliste der Baugruppe →LD | 1 | ||
| R910415537 | O-RINGD | 2 | ||
| R910522449 | O-RINGD | 2 | ||
| R910827916 | O-RINGD | 4 | ||
| R902650321 | R-RING | 2 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R910987526 | SCREW PLUG | 1 |
