Baugruppe

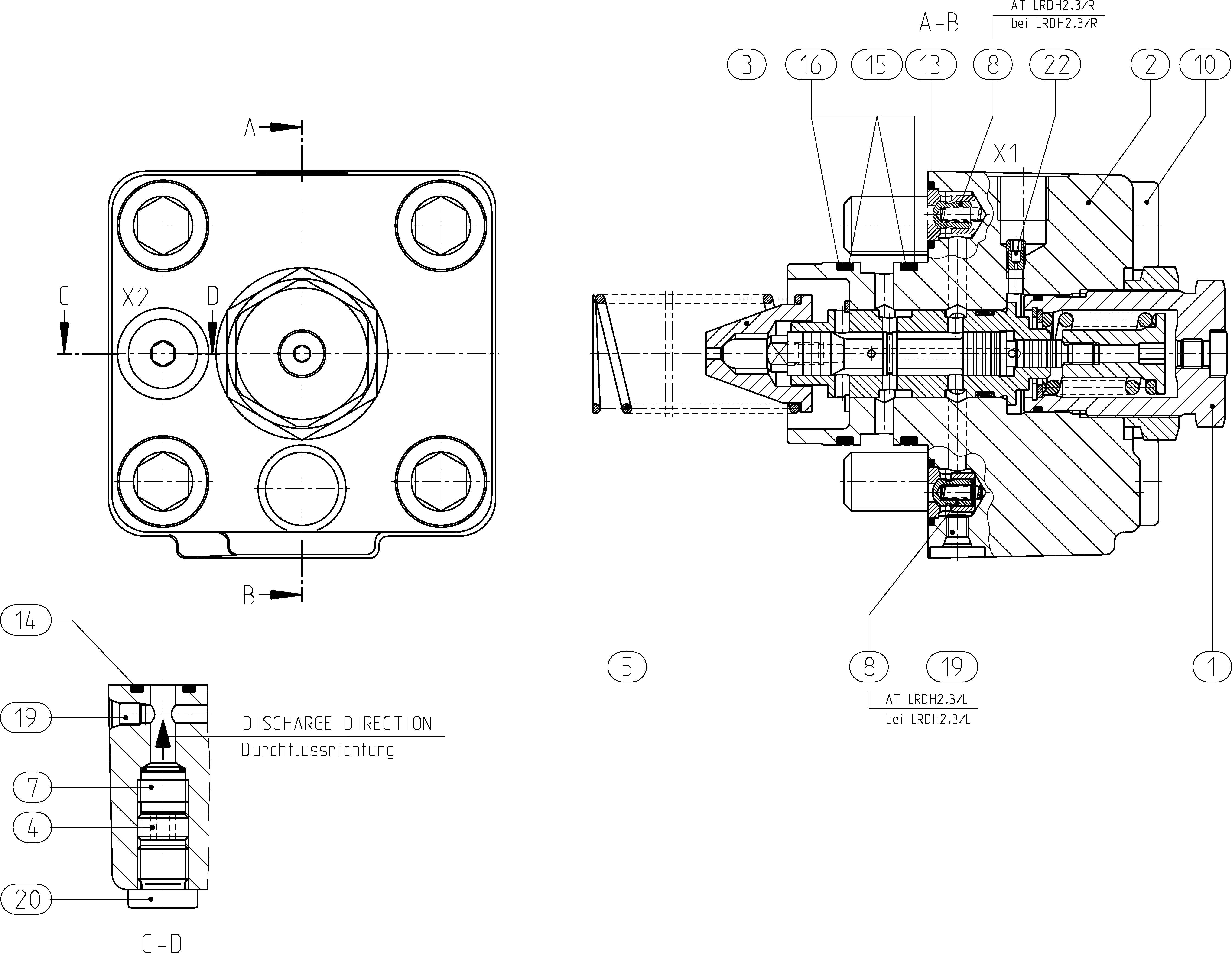

CONTROL PARTR910999507
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910927671 | VALVE INSERT | 1 | ||
| R910930574 | CONTROL HOUSING | 1 | ||
| R910929872 | SPRING DISK | 1 | ||
| R910931747 | THREADED RING | 1 | ||
| R910931749 | COMPRESSION SPRING | 1 | ||
| R910930945 | CHECK VALVE | 1 | ||
| R910974659 | HY-CHECK VALVE | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RINGD | 2 | ||
| R910518336 | O-RINGD | 3 | ||
| R910929855 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R910923856 | NOZZLE | 1 |
