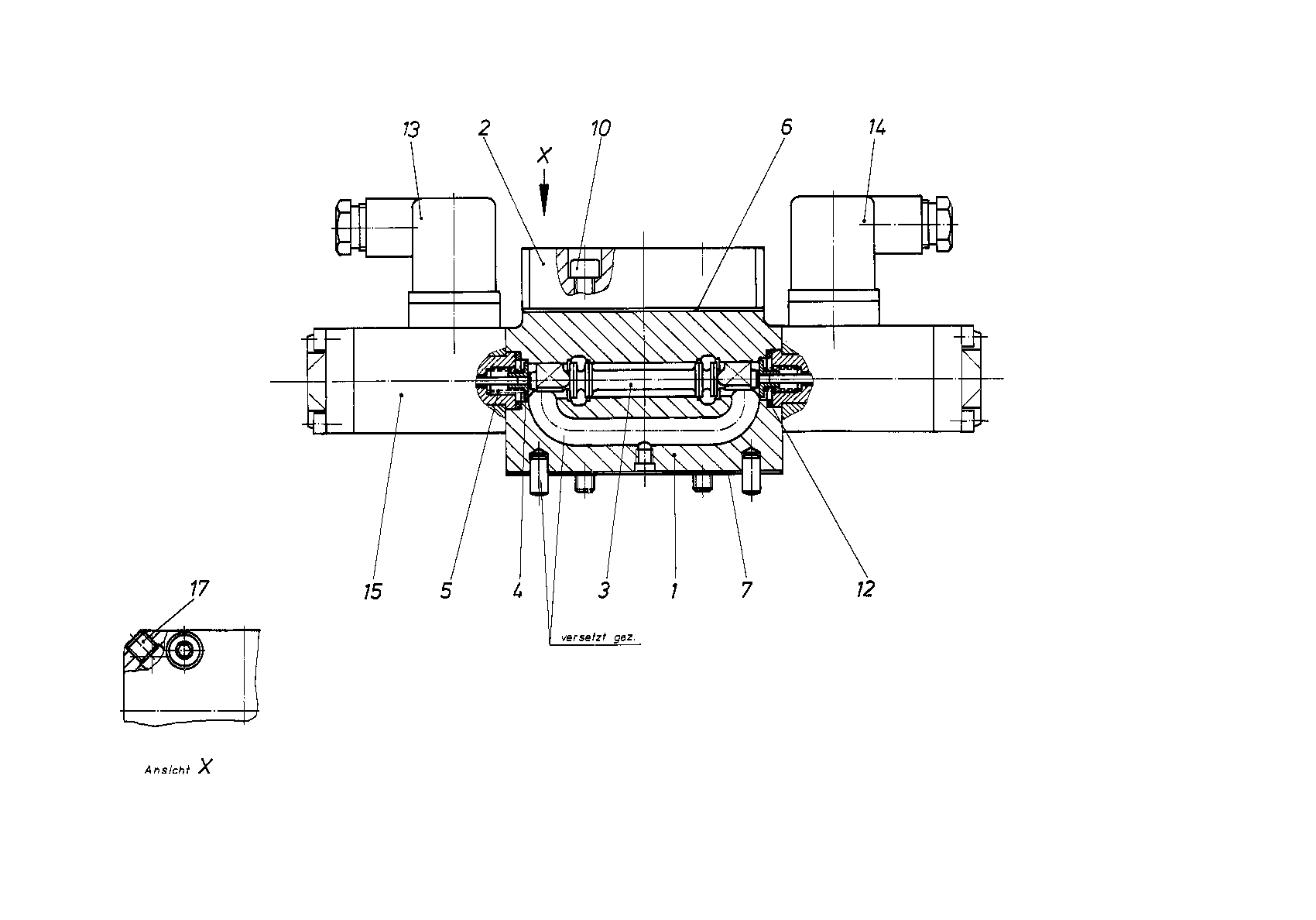

Baugruppe
DIRECTIONAL-CONTROL VALVE
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909400501 | VALVE HOUSING | 1 | ||
| 2 | R909424388 | CONNECTION COVER | 1 | |
| R909921478 | CONTROL PISTON | 1 | ||
| R909400503 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909419287 | SEALD | 1 | ||
| R909419288 | SEALD | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083734 | O-RINGD | 2 | ||
| 13 | R913022796 | PLUG-IN CONNECTOR | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| 15 | R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | |
| R909153572 | SCREW PLUG | 1 |
