Baugruppe

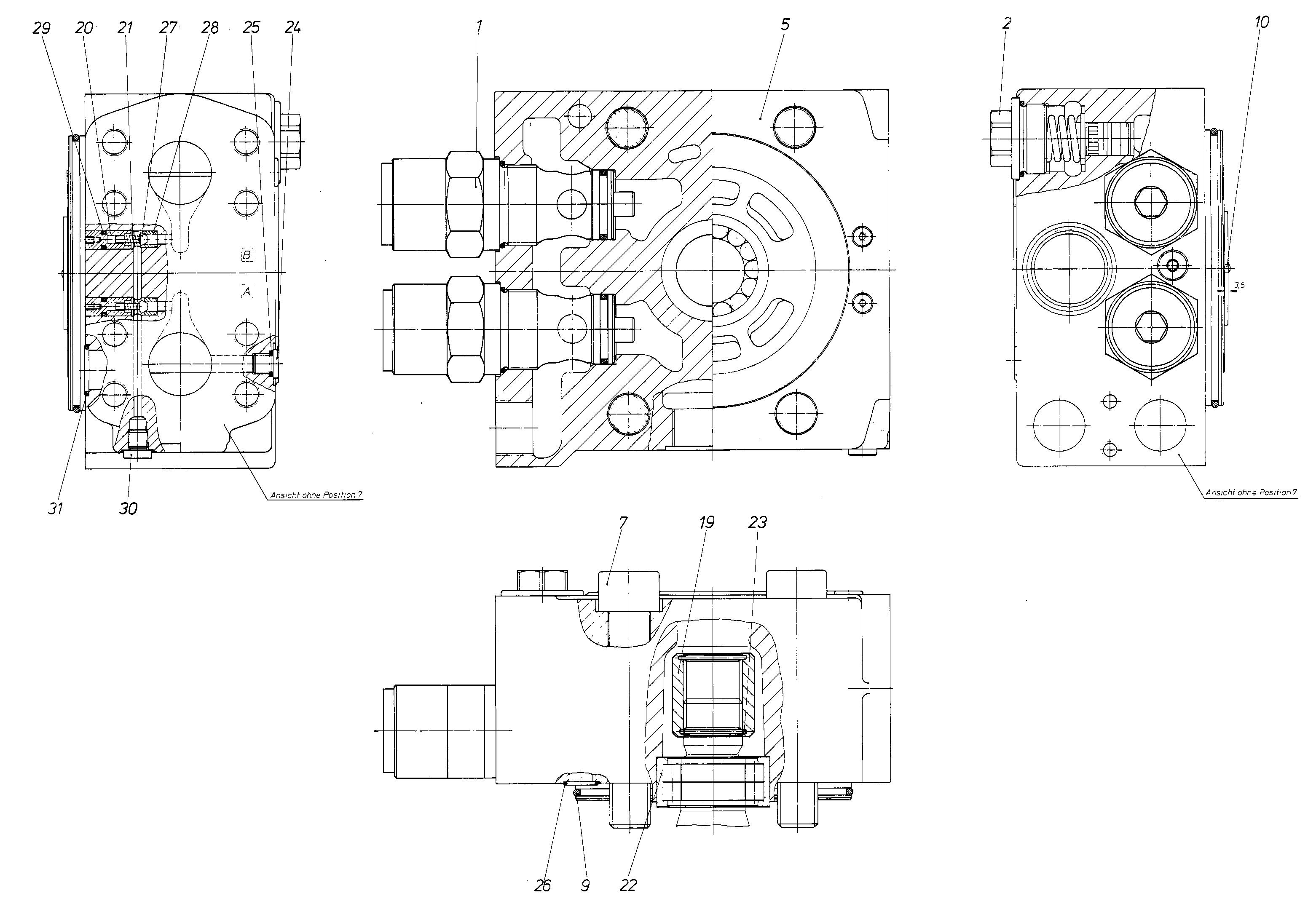

CONNECTION PLATE
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909408831 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R909414258 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909439086 | CONNECTION PLATE | 1 | ||
| R909083176 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083833 | O-RINGD | 1 | ||
| — | COUPLING HUB | 1 | ||
| R909403536 | SPRING SLEEV | 2 | ||
| R909002466 | COMPRESSION SPRING | 2 | ||
| R909156114 | CYL. ROLLER BEARING | 1 | ||
| R909156596 | SNAP RING | 1 | ||
| R909083219 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909083737 | O-RINGD | 1 | ||
| R909154215 | VALVE CONE | 2 | ||
| R909085836 | VALVE SEAT | 2 | ||
| R909157512 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909087905 | O-RINGD | 1 |
