Baugruppe

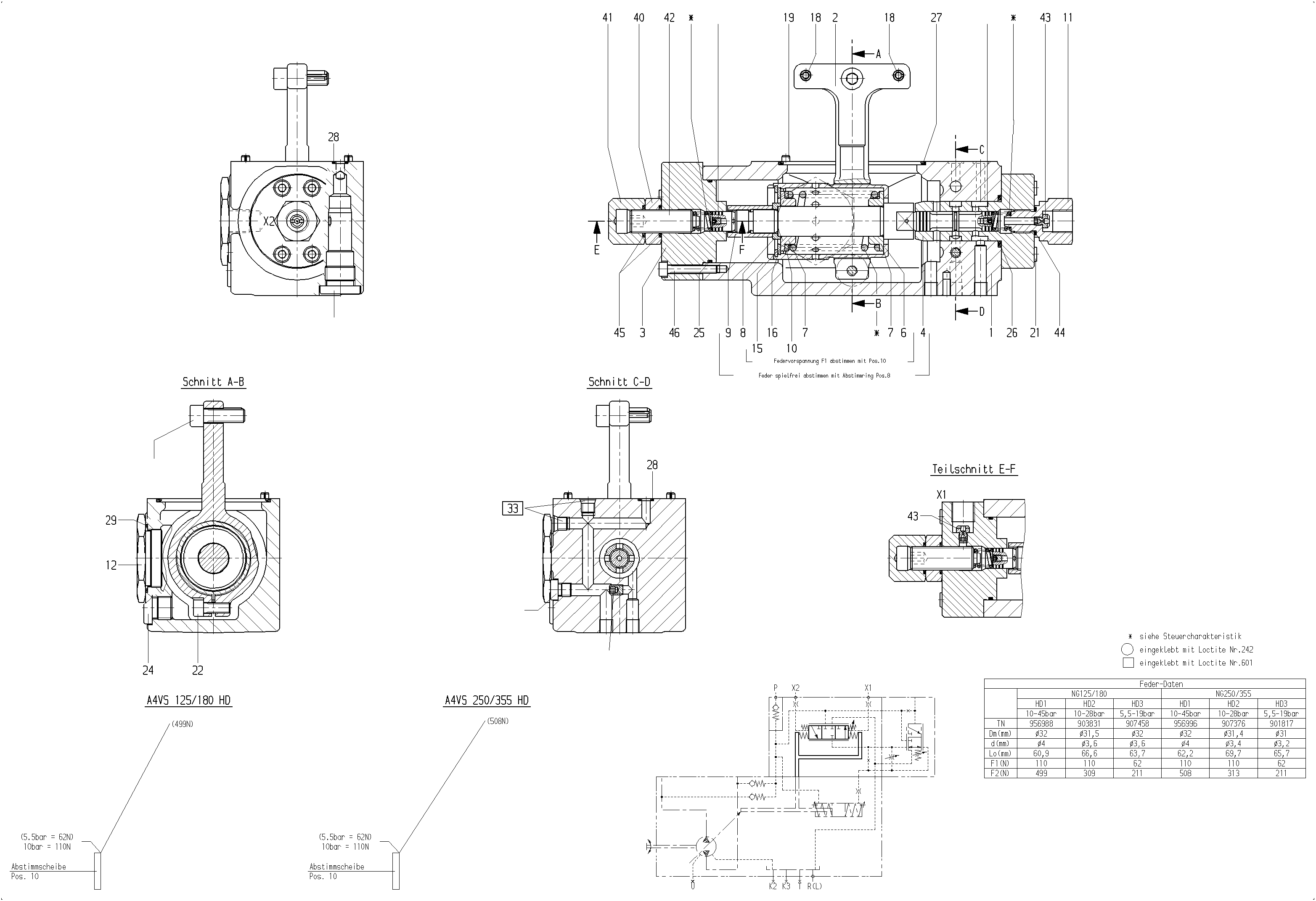

CONTROL MODULE
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910907331 | CONTROL HOUSING | 1 | ||
| — | LEVER | 1 | ||
| 3 | R910920271 | CONTROL COVER | 1 | |
| R910958921 | CONTROL PISTON | 1 | ||
| R910958972 | SPRING SLEEV | 1 | ||
| R910959014 | SPRING SLEEV | 2 | ||
| R910959049 | SHIM RING | 1 | ||
| R910959057 | COUNTER NUT | 1 | ||
| R910958999 | ADJUSTMENT SHIM | 1 | ||
| 11 | R910919908 | THREADED FASTENER | 1 | |
| R910959006 | SCREW PLUG | 1 | ||
| 15 | R910105988 | RETAINING RING | 1 | |
| R910105457 | SUPPORTING DISC | 1 | ||
| R910997948 | CLAMPING SLEEVE | 2 | ||
| R910073571 | CLAMPING SLEEVE | 2 | ||
| 20 | R910109479 | SOCKET HEAD CAP SCREW | 1 | |
| 21 | R910120138 | SOCKET HEAD CAP SCREW | 4 | |
| R910126586 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 25 | R910515671 | O-RINGD | 1 | |
| R910959081 | O-RINGD | 1 | ||
| 27 | R910959103 | O-RINGD | 1 | |
| R910514969 | O-RINGD | 3 | ||
| R910759201 | O-RINGD | 1 | ||
| 30 | R910303518 | SETSCREW | 2 | |
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| 34 | R909153815 | SCREW PLUGD | 1 | |
| 38 | R909154024 | SCREW PLUGD | 1 | |
| 39 | R910100951 | SETSCREW | 1 | |
| R910903387 | NUT | 1 | ||
| 41 | R910903389 | CAP NUT | 1 | |
| R910919907 | SETSCREW | 1 | ||
| R910100579 | NOZZLE | 2 | ||
| R910730289 | SEAL RINGD | 1 | ||
| 45 | R910401803 | O-RINGD | 2 | |
| 46 | R910109231 | SOCKET HEAD CAP SCREW | 3 |
