Baugruppe

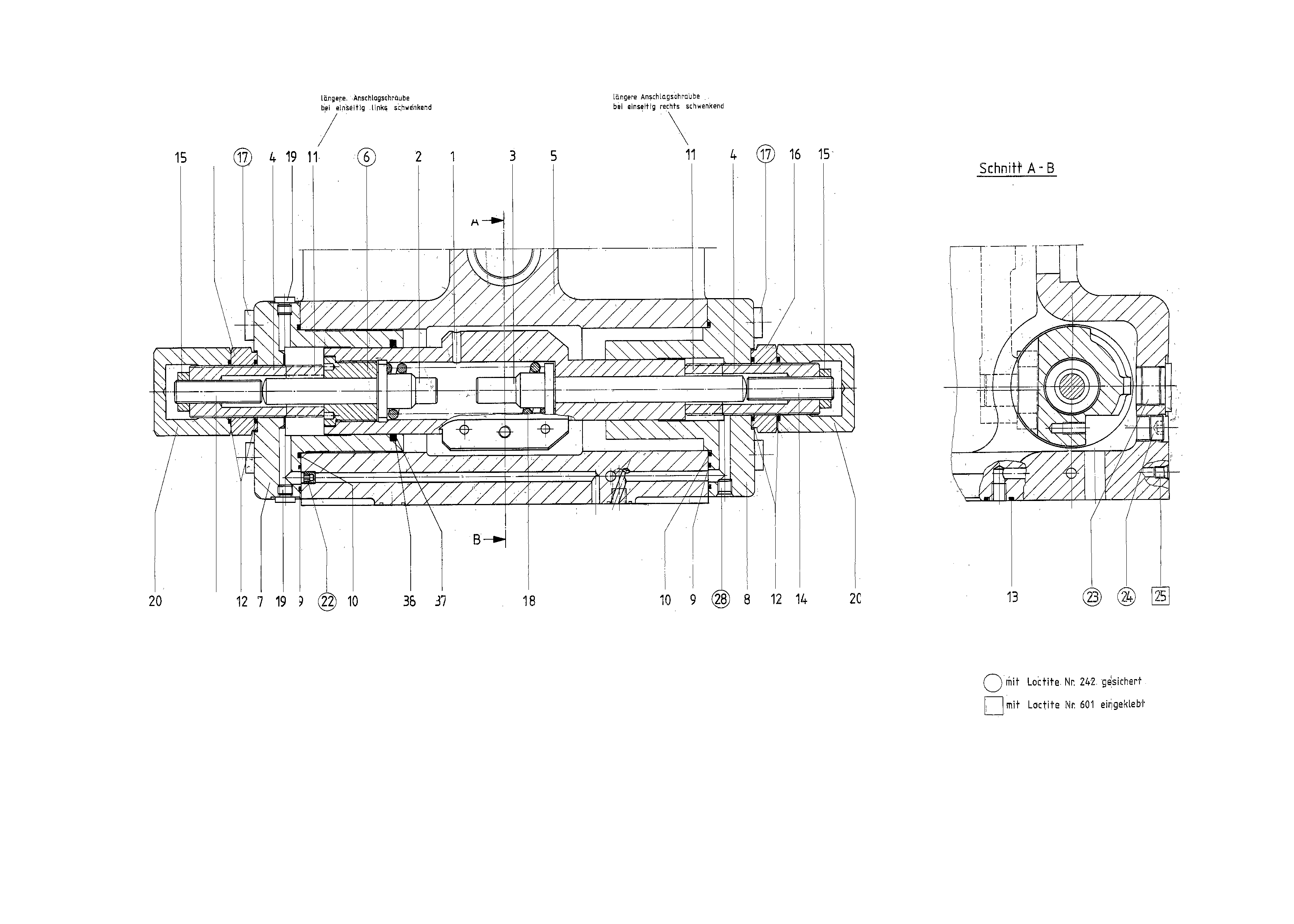

ADJUSTING PIECE
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| — | ADJUSTING PISTON | 1 | ||
| 2 | R902557760 | PRESSURE PISTON | 1 | |
| 3 | R902557759 | PRESSURE PISTON | 1 | |
| R910900073 | STOP SCREW | 2 | ||
| 5 | R910933132 | PUMP HOUSING | 1 | |
| 6 | — | PISTON GUIDE | 1 | |
| 7 | R910945721 | PISTON HOUSING | 1 | |
| 8 | R910945727 | PISTON HOUSING | 1 | |
| 9 | R910923831 | R-RINGD | 2 | |
| 10 | R902650323 | R-RINGD | 2 | |
| 12 | R910911739 | O-RINGD | 4 | |
| R910923831 | R-RINGD | 2 | ||
| 14 | R910517011 | SETSCREW | 2 | |
| R910127116 | HEXAGON NUT | 2 | ||
| 16 | R910902827 | NUT | 2 | |
| 17 | R910604976 | SOCKET HEAD CAP SCREW | 8 | |
| R910900077 | COMPRESSION SPRING | 1 | ||
| 19 | R909153364 | SCREW PLUG | 4 | |
| R910902828 | CAP NUT | 2 | ||
| R910582808 | THROTTLE SCREW | 1 | ||
| 23 | R909153365 | SCREW PLUGD | 1 | |
| 24 | R910987526 | SCREW PLUG | 1 | |
| 25 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 28 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 37 | R902650982 | DUMMY | 1 | |
| 38 | R910977071 | O-RING | 1 |
