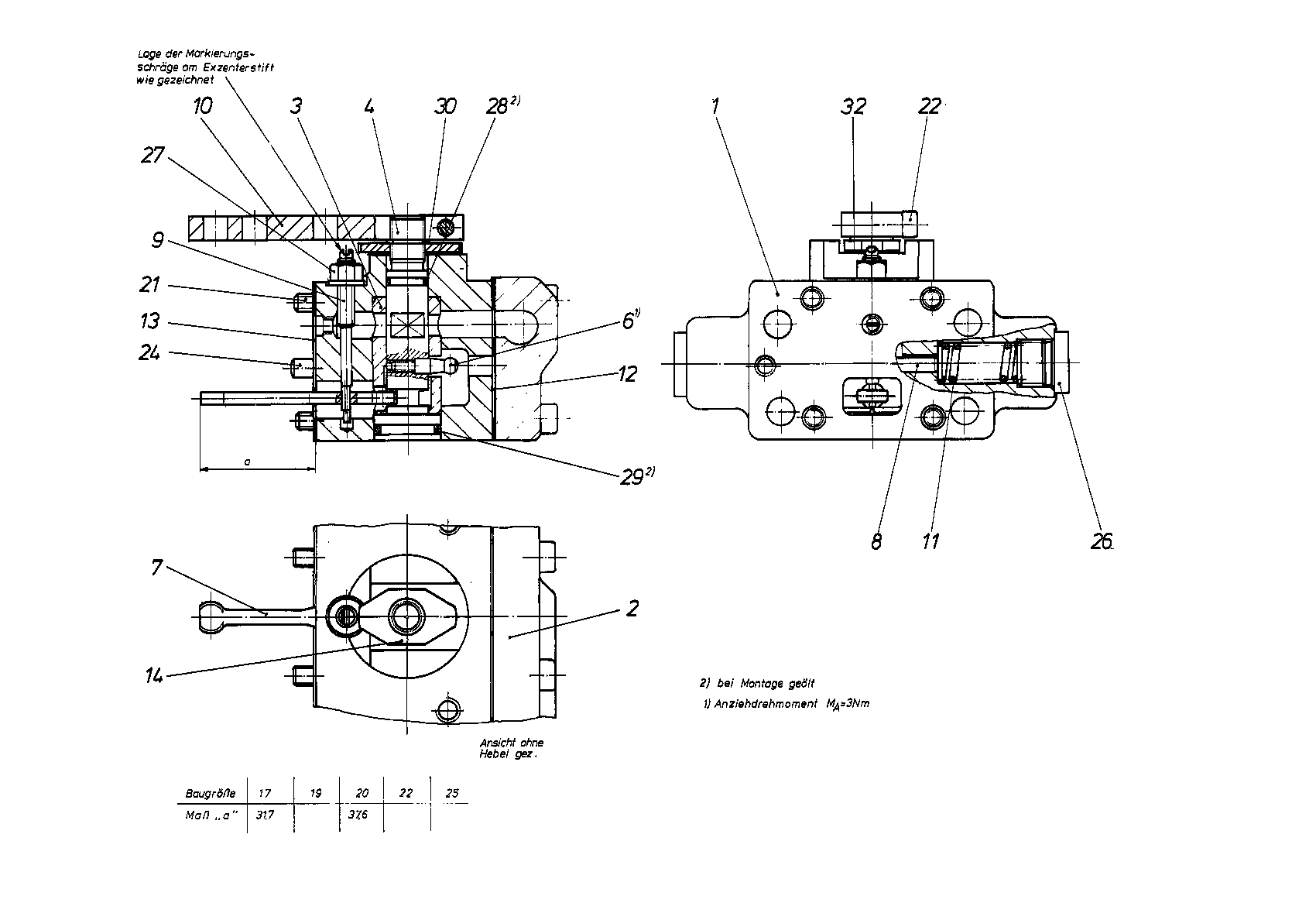

Baugruppe
CONTROL UNIT
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909417703 | HOUSING | 1 | ||
| R902081188 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909412260 | CONTROL SLEEVE | 1 | ||
| R909426383 | CONTROL SHAFT | 1 | ||
| 6 | R909425121 | POSITIONING STUD | 1 | |
| 7 | R909400483 | FEEDBACK LEVER | 1 | |
| 8 | R909425168 | BOLT | 2 | |
| 9 | R909412262 | ECCENTRIC PIN | 1 | |
| R909415411 | LEVER | 1 | ||
| 11 | R909416095 | COMPRESSION SPRING | 2 | |
| R909419287 | SEALD | 1 | ||
| R909419288 | SEALD | 1 | ||
| 14 | — | STOP DISC | 1 | |
| 21 | R909085701 | SOCKET HEAD CAP SCREW | 4 | |
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| 24 | R913009677 | STRAIGHT PIN | 2 | |
| 26 | R909153816 | SCREW PLUG | 2 | |
| R909152425 | SEALING NUT | 1 | ||
| 28 | R909086178 | O-RINGD | 1 | |
| — | O-RINGD | 1 | ||
| 30 | R909083346 | RETAINING RING | 1 | |
| R909154476 | SHIM RING | 1 |
