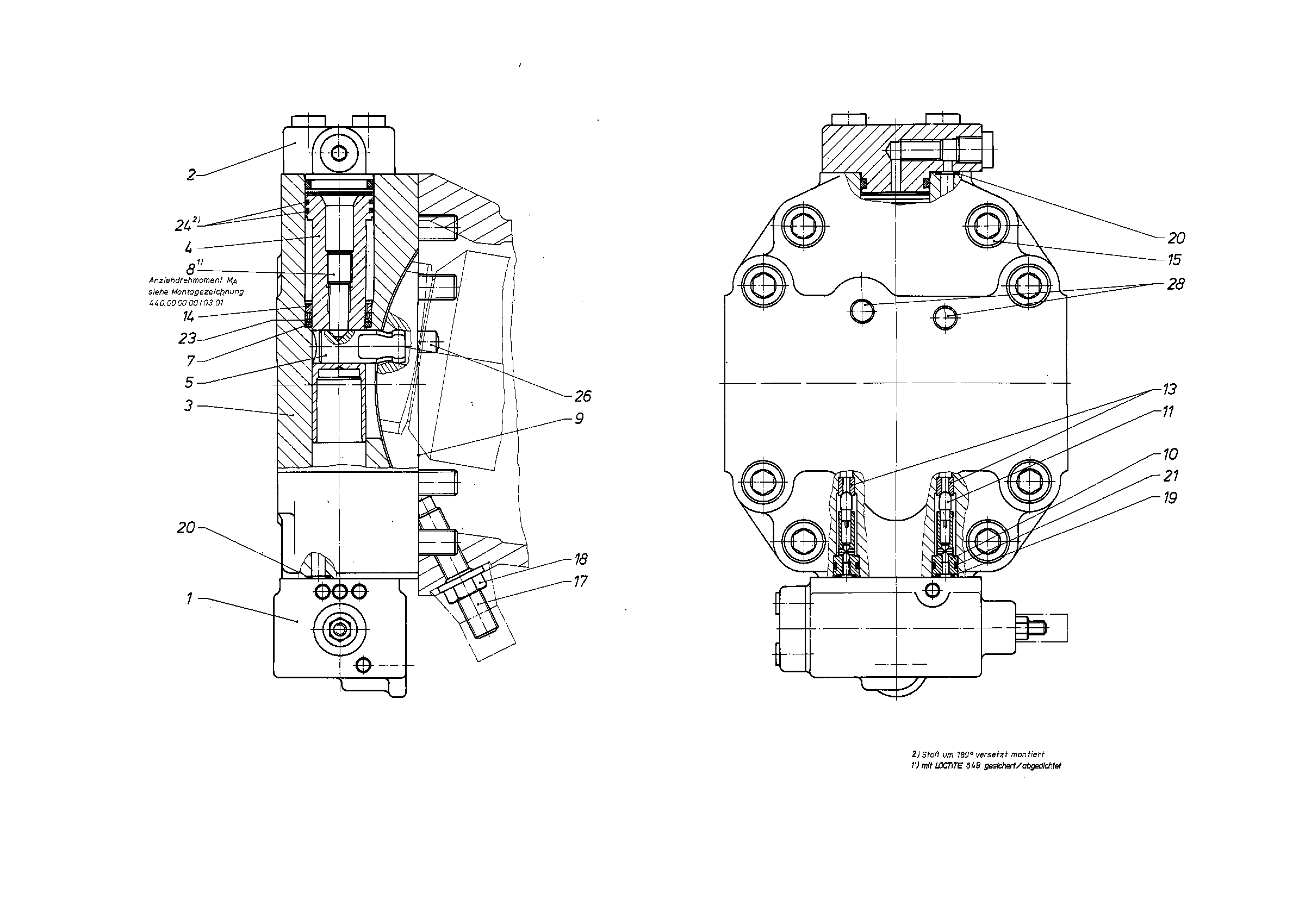

Baugruppe
CONTROL
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909428968 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| R909427532 | COVER Stückliste der Baugruppe →L | 1 | ||
| 3 | — | COVER PLATE | 1 | |
| R909422948 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R909435813 | BACKUP RING | 1 | ||
| 8 | R909445016 | SETSCREW | 1 | |
| 9 | R902011855 | SEALD | 1 | |
| R902075344 | VALVE GUIDE | 2 | ||
| 11 | — | BOLT | 2 | |
| R902209845 | BUSHING | 2 | ||
| 14 | R909445496 | RETAINING RING | 1 | |
| 14 | R909445497 | RETAINING RING | 1 | |
| 14 | R909445498 | RETAINING RING | 1 | |
| 15 | R909083097 | SOCKET HEAD CAP SCREW | 8 | |
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| 18 | R909152459 | SEALING NUTD | 1 | |
| R909830726 | O-RINGD | 2 | ||
| R909085577 | O-RINGD | 3 | ||
| R909086487 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| 23 | — | ROD SEALD | 1 | |
| 24 | R902602841 | STEEL SEALING RINGD | 2 | |
| R913009669 | STRAIGHT PIN | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 |
