Baugruppe

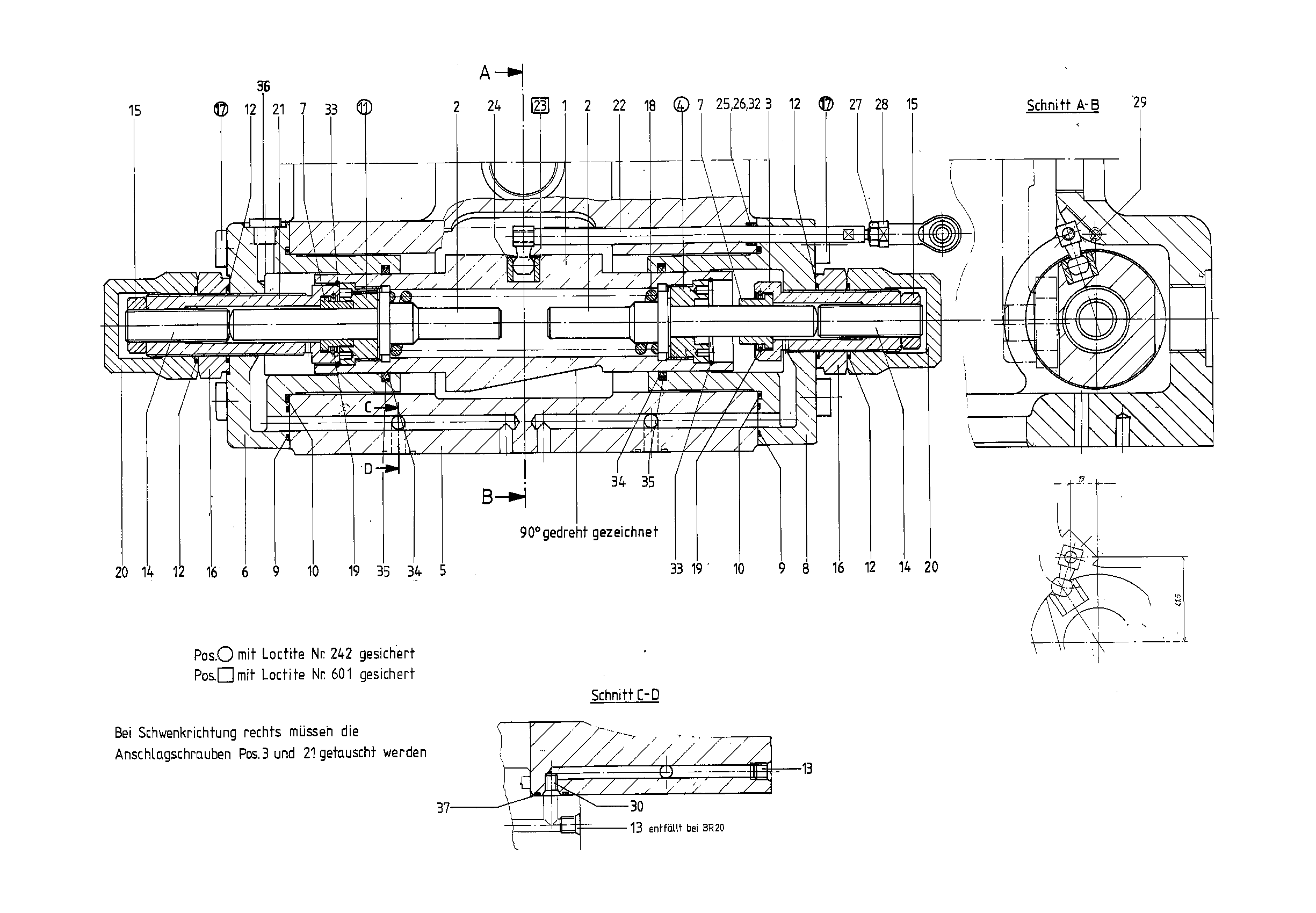

ADJUSTING PIECE
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910905419 | ADJUSTING PISTON | 1 | ||
| R910936324 | PRESSURE PISTON | 2 | ||
| R902555527 | STOP SCREW | 1 | ||
| R910971792 | PISTON GUIDE | 1 | ||
| R910947036 | PUMP HOUSING | 1 | ||
| R910933090 | PISTON HOUSING | 1 | ||
| R910933246 | PISTON HOUSING | 1 | ||
| R910522449 | O-RINGD | 2 | ||
| R902650321 | R-RINGD | 2 | ||
| R910948705 | PISTON GUIDE | 1 | ||
| R910759228 | O-RINGD | 4 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910118648 | SETSCREW | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| R910902817 | NUT | 2 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910922048 | COMPRESSION SPRING | 1 | ||
| R910902818 | CAP NUT | 2 | ||
| R902555526 | STOP SCREW | 1 | ||
| R910905421 | ROD | 1 | ||
| R910905422 | CARRIER | 1 | ||
| R910905436 | DRILL BUSHING | 1 | ||
| R910516031 | O-RINGD | 1 | ||
| R910905439 | BACKUP RINGD | 2 | ||
| R910105287 | HEXAGON NUT | 1 | ||
| R910969324 | SWIVEL HEAD | 1 | ||
| R910114529 | CLAMPING SLEEVE | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910907616 | DUMMYD | 1 | ||
| R910927999 | SNAP RING | 2 | ||
| — | ROD SEALD | 2 | ||
| R910976658 | O-RINGD | 4 | ||
| R909153364 | SCREW PLUGD | 6 | ||
| R910942813 | R-RING | 2 |
