Einheit · CONNECTION PLATE
ANPL,A4VG28+A4FM28+ECCOM1,523113.0R902001180

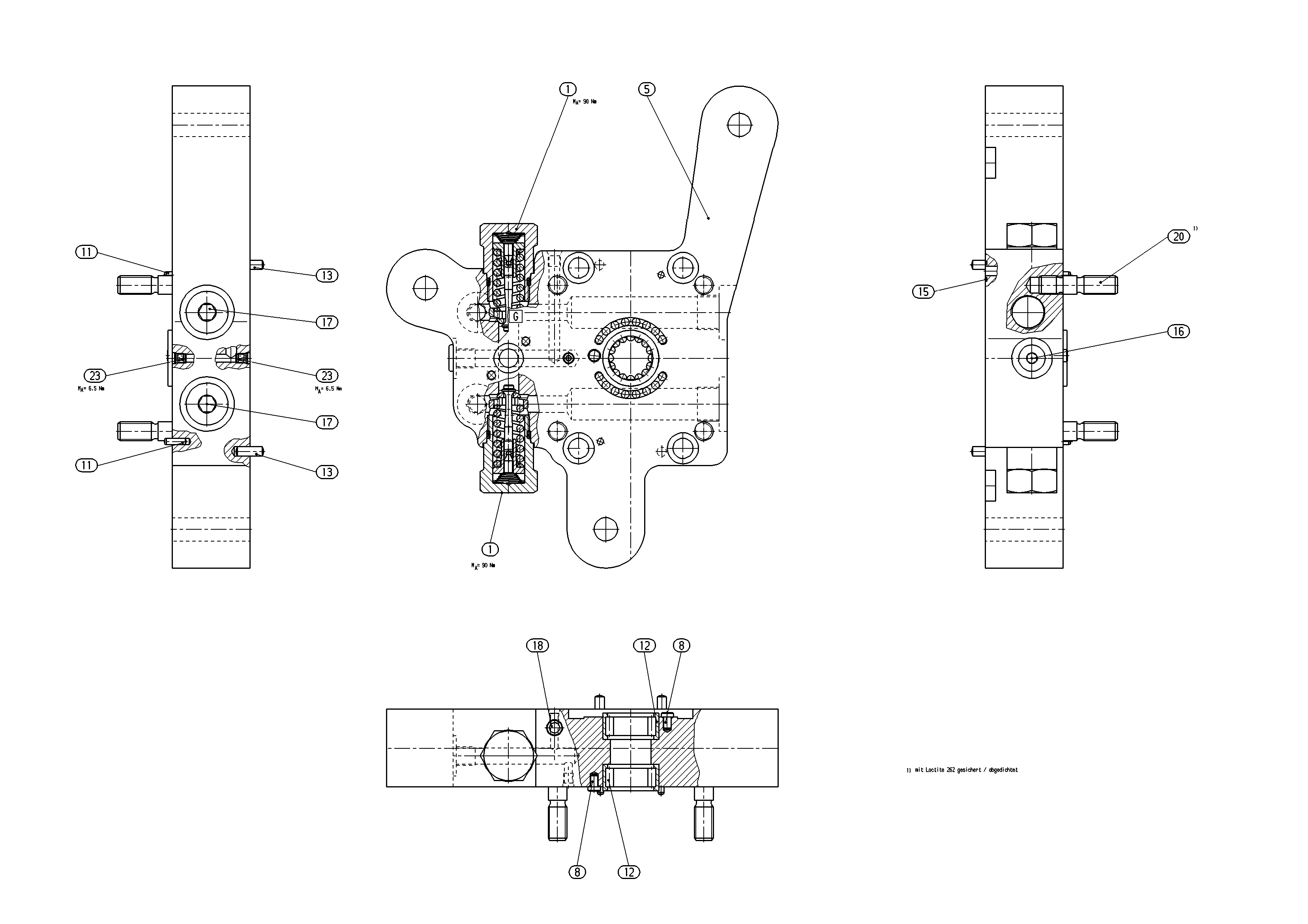

Anschlussplatte Bosch Rexroth Baureihe A4VG, Typschlüssel ANPL,A4VG28+A4FM28+ECCOM1,523113.0, Materialnummer R902001180.
- Nummer
- R902001180
- Typschlüssel
- ANPL,A4VG28+A4FM28+ECCOM1,523113.0
- Gruppe
- A4VG 28
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909447133 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| 5 | R902001166 | CONNECTION PLATE | 1 | |
| R909405732 | POITIONING PIN | 2 | ||
| 11 | R909087694 | STRAIGHT PIN | 2 | |
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| 15 | R909085709 | O-RINGD | 1 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909157491 | STUD | 4 | ||
| R909156493 | NOZZLE | 2 |
