Einheit · CONNECTION PLATE
ANPL,A4VG28+A2FM16+HM8-223113.R902001307
Anschlussplatte Bosch Rexroth Baureihe A4VG, Typschlüssel ANPL,A4VG28+A2FM16+HM8-223113., Materialnummer R902001307.
- Nummer
- R902001307
- Typschlüssel
- ANPL,A4VG28+A2FM16+HM8-223113.
- Gruppe
- A4VG 28
- Ausgabe
- 06/2020

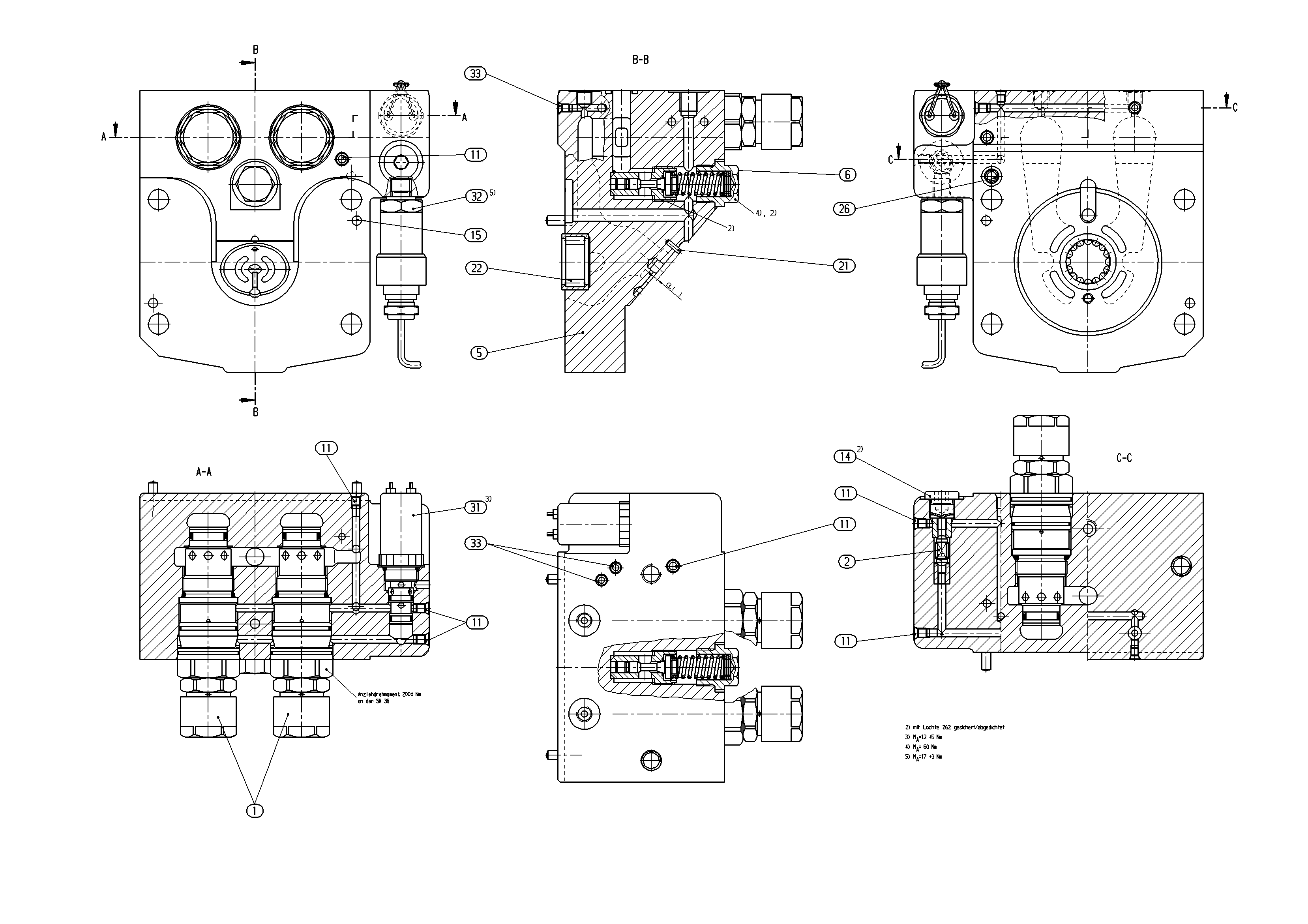

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902601624 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R909437348 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902001495 | CONNECTION PLATE | 1 | ||
| R902600303 | PRESSURE RELIEF VALVE | 1 | ||
| 10 | R900748992 | STRAIGHT PIN | 2 | |
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 7 | |
| R902001193 | SCREW PLUGD | 1 | ||
| R909084172 | STRAIGHT PIN | 2 | ||
| 21 | R909084134 | STRAIGHT PIN | 1 | |
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| 26 | R909085709 | O-RINGD | 1 | |
| R902601739 | DIRECTIONAL-CONTROL VALVE | 1 | ||
| R902601239 | PRESSURE SENSOR | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 34 | R902601125 | CONTACT PIN | 5 |
