Einheit · AXIAL-PISTON PUMP
A4VTG71HW/32R-NLD10F011S-SR902037887
Axialkolbenpumpe Bosch Rexroth Baureihe A4VTG, Typschlüssel A4VTG71HW/32R-NLD10F011S-S, Materialnummer R902037887.
- Nummer
- R902037887
- Typschlüssel
- A4VTG71HW/32R-NLD10F011S-S
- Gruppe
- A4VTG 71
- Ausgabe
- 01/2018

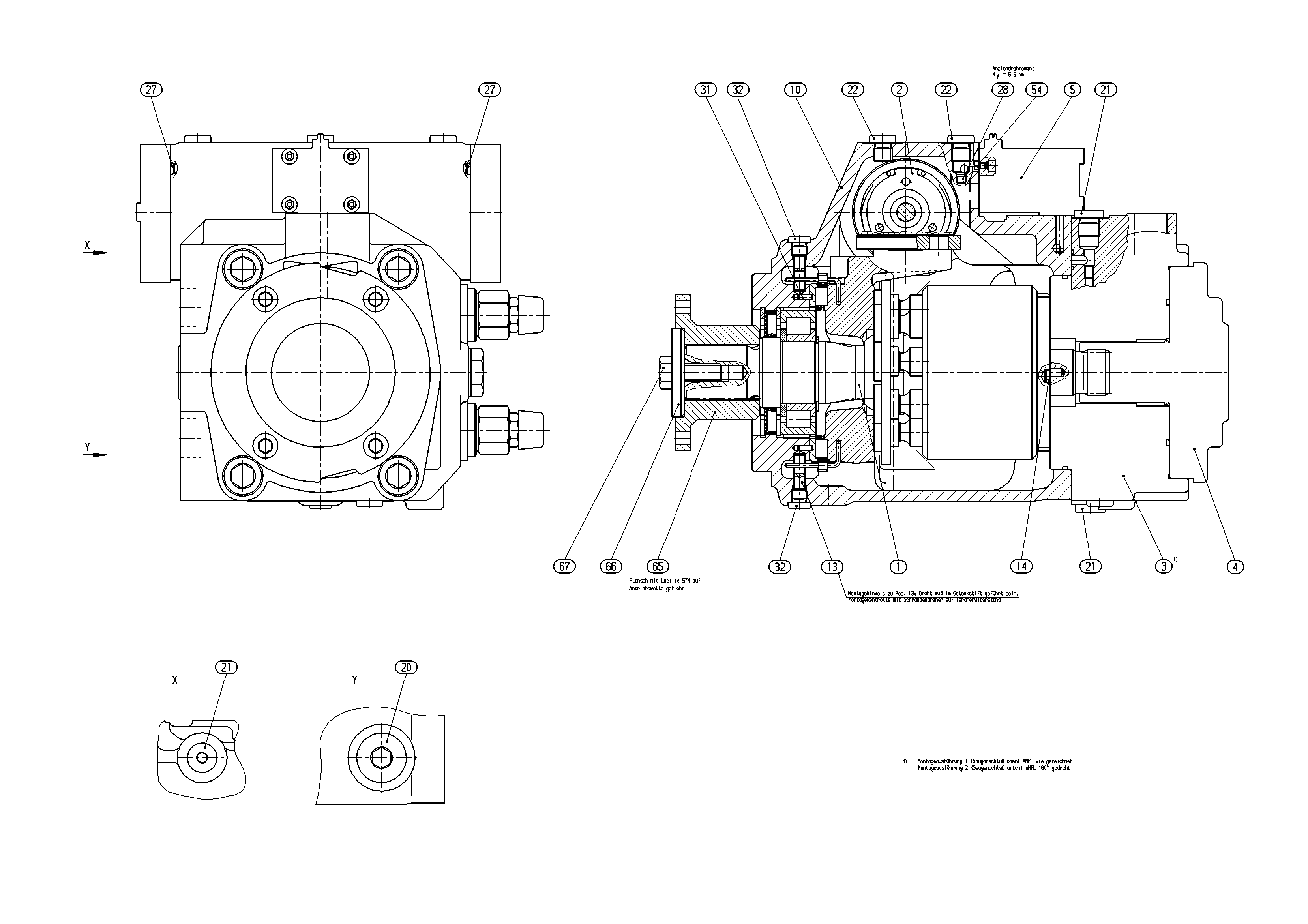

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902083790 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902019518 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909613516 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902006245 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902031253 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902020322 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909408188 | ECCENTRIC BOLT | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R902601867 | NOZZLE | 1 | ||
| R909435040 | COUPLING FLANGE | 1 | ||
| R909449984 | CENTERING DISK | 1 | ||
| R909831458 | HEXAGON SCREW | 1 |
