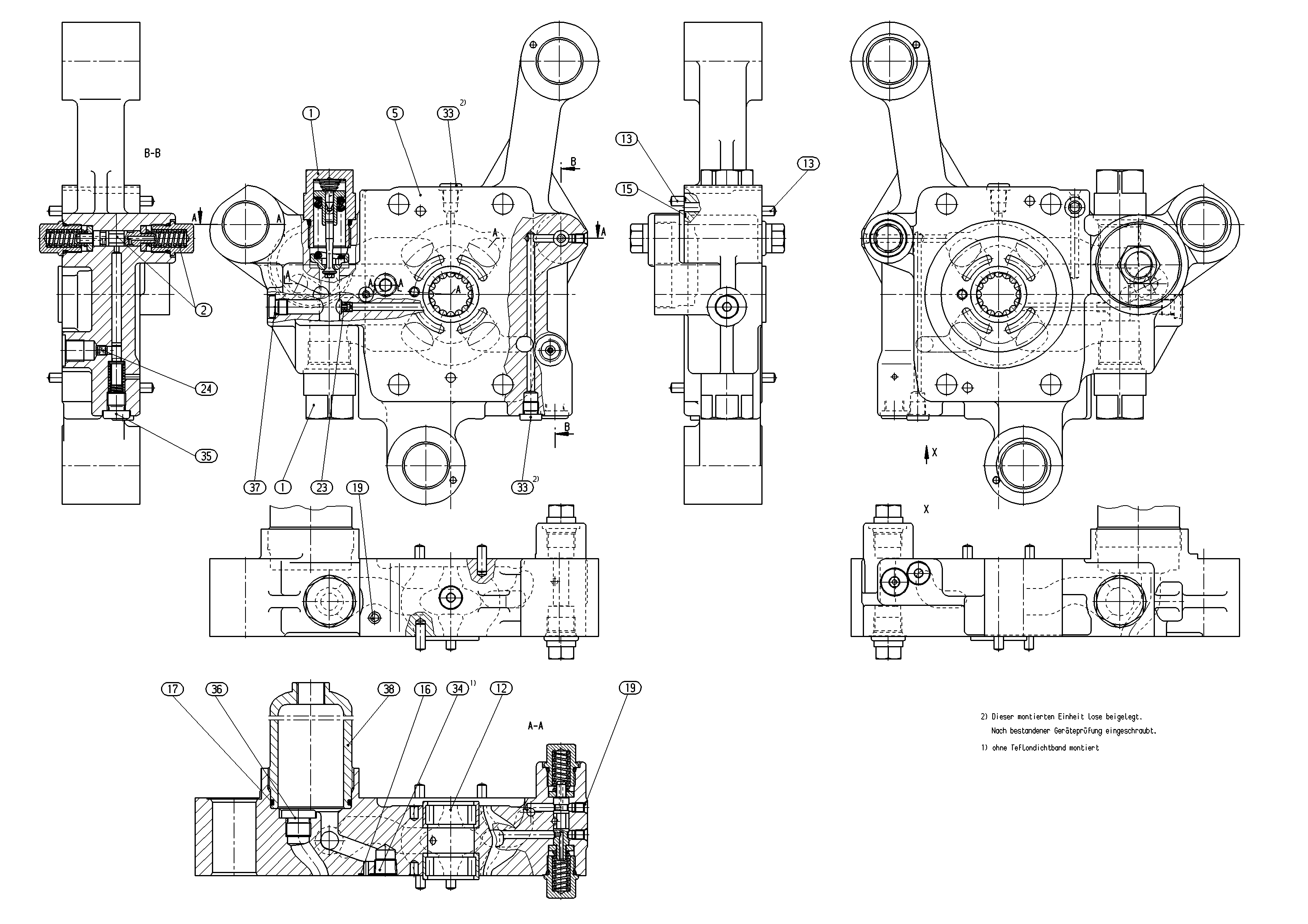

Einheit · CONNECTION PLATE
ANPL, A4VG28+A4FM28-ECCOM1,5-DFA-WR902047644
Anschlussplatte Bosch Rexroth Baureihe A4VG, Typschlüssel ANPL,A4VG28+A4FM28-ECCOM1,5-DFA-W, Materialnummer R902047644.
- Nummer
- R902047644
- Typschlüssel
- ANPL, A4VG28+A4FM28-ECCOM1,5-DFA-W
- Gruppe
- A4VG 28
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902133864 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902001377 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902047641 | CONNECTION PLATE | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909084889 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157343 | NOZZLE | 1 | ||
| R902601931 | SCREW PLUGD | 2 | ||
| R909087912 | SCREW PLUGD | 1 | ||
| R902601932 | SCREW PLUGD | 1 | ||
| R902601934 | SCREW PLUGD | 1 | ||
| R902601931 | SCREW PLUGD | 1 | ||
| R902001410 | FILTER HOUSING | 1 |
